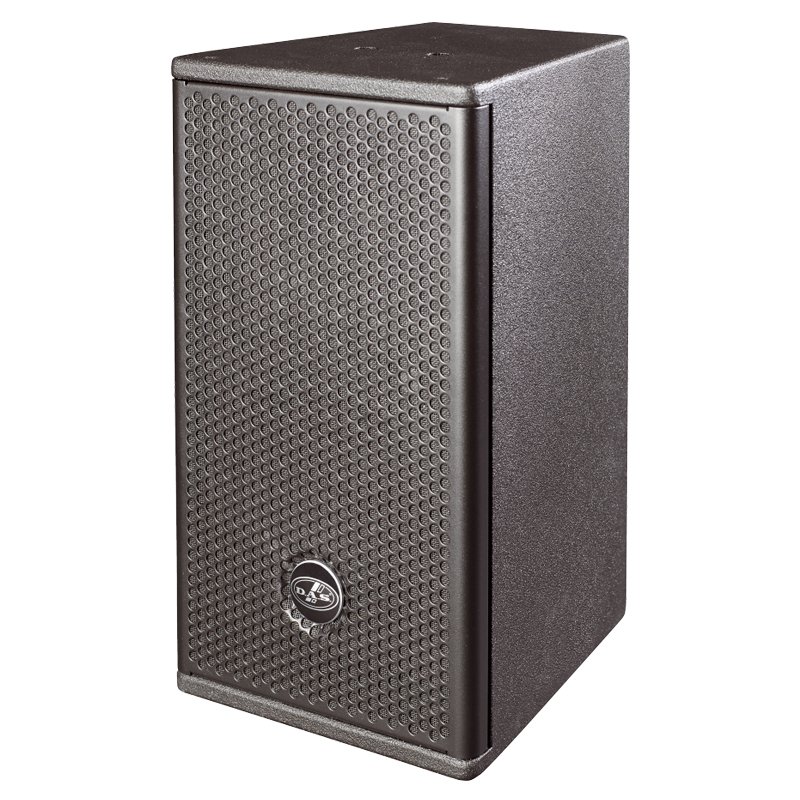

The Artec-508 employs a single 8C woofer for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and a pole mount socket augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
FEATURES
- Single 8” loudspeaker
- M-34 compression driverVertical or horizontal positioning
- Threaded fixing points for wall mountsPole mount socket
APPLICATIONS
- A/V systems and corporate events
- Meeting rooms, classrooms, and exhibit areas
- Installations in bars and clubs
SPECIFCATIONS
Type: Passive 2-way full-range speaker
Frequency Range: 60 Hz – 20 kHz (-10 dB)
Nominal Impedance: 8 Ω
RMS Power Handling: 300 W
Peak Power Handling: 1,200 W
Sensitivity (1W/1m): 90 dB
Maximum SPL (1m): 137 dB peak
Coverage Pattern: 80° x 80° (horizontal x vertical)
Drivers:
Low-Frequency: 8″ DAS 8C woofer
High-Frequency: 1″ M-34 compression driver
Horn/Waveguide: BC-88
Connectors: 1 x speakON NL4 input, 1 x speakON NL4 output
Enclosure: Birch plywood, trapezoidal design
Rigging: M10 rigging points
Finish: ISO-flex paint
Dimensions (H x W x D): 450 x 245 x 290 mm (17.7 x 9.7 x 11.4 in)
Weight: 11.5 kg (25.4 lb)
