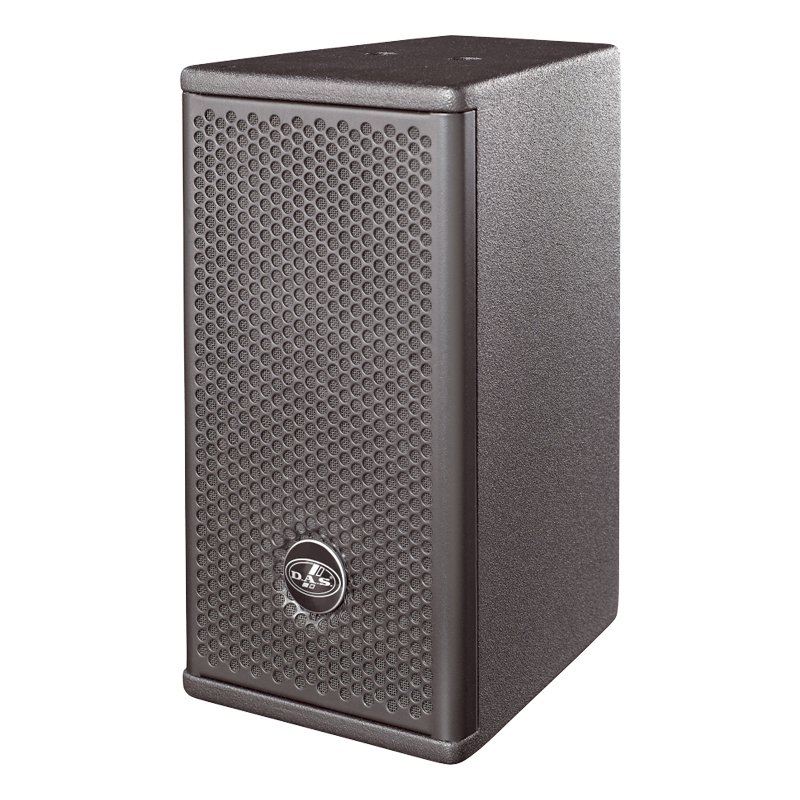

The Artec-506 employs a single 6P woofer for low frequency reproduction. The M-34 compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control in either the horizontal and vertical position is possible thanks to the symmetrical 80° horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and stand mounting accessories augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
FEATURES
- Single 6” loudspeaker
- M-34 compression driverVertical or horizontal positioning
- Threaded fixing points for wall mountsPole mount accessories
APPLICATIONS
- A/V systems and corporate events
- Meeting rooms, classrooms, and exhibit areas
- Installations in bars and clubs
SPECIFICATIONS
Performance
- Frequency Range (–10 dB): 65 Hz – 20 kHz
- Nominal Impedance: 8 Ω
- RMS Power Handling: 200 W
- Peak Power Handling: 800 W
- Sensitivity (1W/1m): 90 dB SPL
- Maximum SPL (1m): 122 dB
- Recommended Amplifiers: INTEGRAL-A402, A404, A1002, A1004, A1602, A1604, MA1004, MA1604
- Recommended Processor: INTEGRAL-M88
Components
- Low-Frequency Driver: 6P
- High-Frequency Driver: M-34
- Horn/Waveguide: BC-88 (80° x 80° coverage)
Enclosure & Build
- Construction: Birch plywood
- Geometry: Trapezoidal
- Finish: ISO-flex paint
- Color Options: Black or white
- Rigging: M10 rigging points
- Dimensions (H x W x D): 385 x 195 x 260 mm (15.2 x 7.7 x 10.2 in)
- Net Weight: 7.0 kg (15.4 lb)
Connectors
- Audio Input: 1 x speakON NL4
- Audio Output: 1 x speakON NL4
Shipping
- Carton Dimensions (H x W x D): 471 x 266 x 330 mm (18.5 x 10.5 x 13.0 in)
- Shipping Weight: 10.3 kg (22.7 lb)
