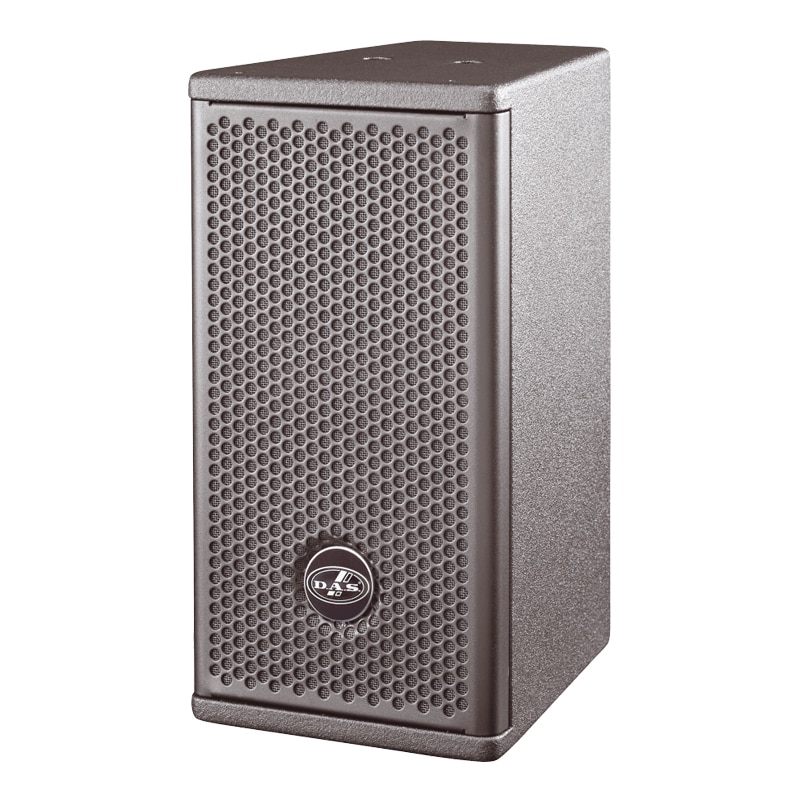

The ARTEC-306 2-way passive full range loudspeaker utilizes a 6″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. Thanks to its small size, it is ideal for venues with low ceilings, or limited space.
FEATURES
Performance & Components
- Driver Configuration: Features a 6″ low-frequency driver (6B) and an M-26 compression driver.
- Frequency Range: 70 Hz – 20 kHz (-10 dB).
- Power Handling:
- RMS: 100 W
- Peak: 400 W
- Sensitivity: 90 dB SPL at 1W/1m.
- Maximum SPL: 116 dB at 1 m.
- Nominal Impedance: 8 ohms.
Design & Build
- Enclosure: Constructed from Baltic Birch plywood with a trapezoidal shape to minimize standing waves.
- Finish: Durable ISO-flex paint in black or white.
- Mounting: Includes M10 rigging points and a U-bracket for flexible installation.
- Dimensions: 385 x 195 x 260 mm (15.2 x 7.7 x 10.2 in).
- Weight: 7.2 kg (15.8 lb).
Dispersion & Mounting
- Horn: Rotatable 90° x 60° to maintain consistent coverage when installed vertically or horizontally.
- Mounting Options: Compatible with VESA-75/VESA-100 threaded mounts.
Applications
Ideal for venues with limited space or low ceilings, such as retail stores, restaurants, and fitness centers, where clear and consistent audio coverage is required
SPECIFICATIONS
- 1 x 6B low frequency loudspeaker
- 1 x M-26 compression driver
- Rotatable 90º x 60º horn for vertical or horizontal positioning
- VESA-75/VESA-100 standard threaded mounting points
- Version with factory-installed multi-tap transformer available
- 12.5 W/25 W/50 W/100 W (70 V)
- 25 W/50 W/100 W (100 V)
- RMS Power Handling 100 W
- Peak Power Handling 400 W
- Frequency Range (-10 dB) 70 Hz – 20kHz
- Nominal Impedance 8 ohms
- On-axis Sensitivity 1 W / 1 m 90 dB SPL
- Rated Peak SPL at 1 m 116 dB
- Dispersion 90º x 60º Rotatable
- Enclosure Material Birch Plywood
- Color/Finish Black or White Paint
- Connectors Terminal Strip
- Dimensions (H x W x D): 38 x 19.5 x 25.5 cm
15 x 7.7 x 10 in - Weight 7.2 kg (15.8 lb)
