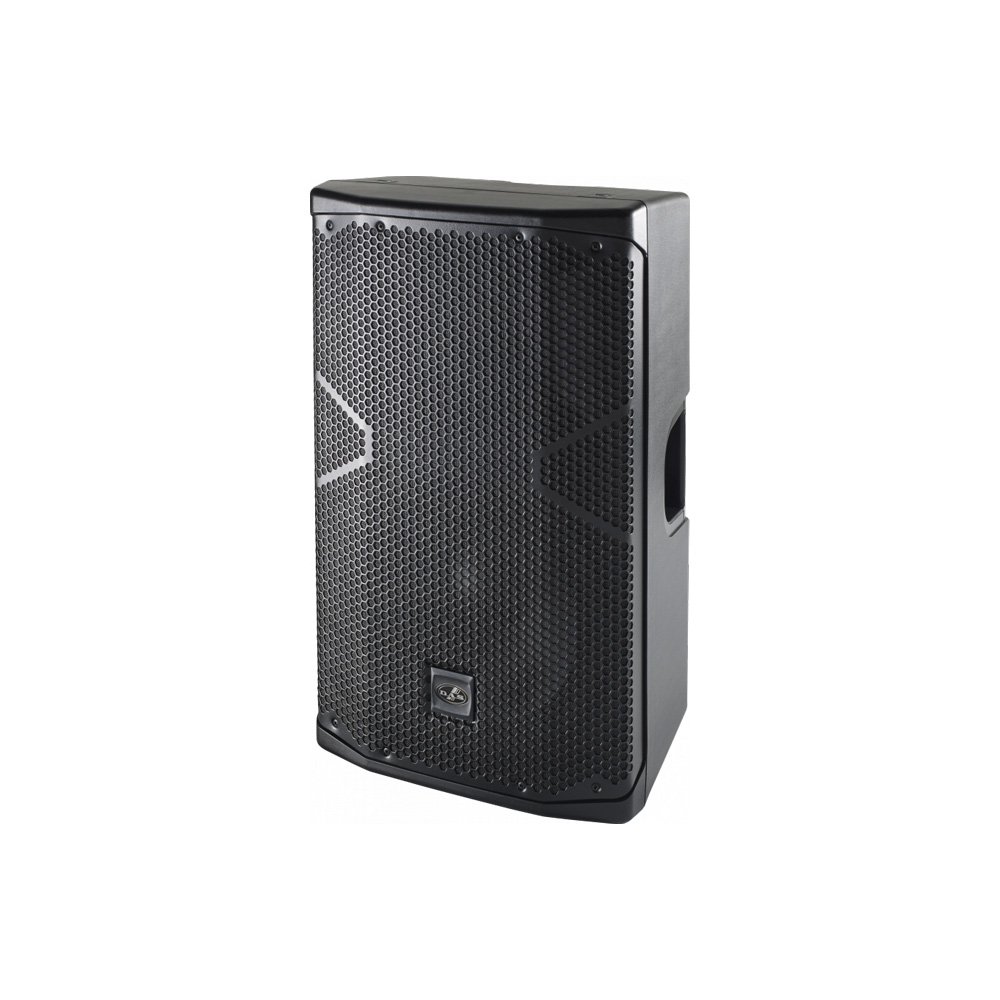

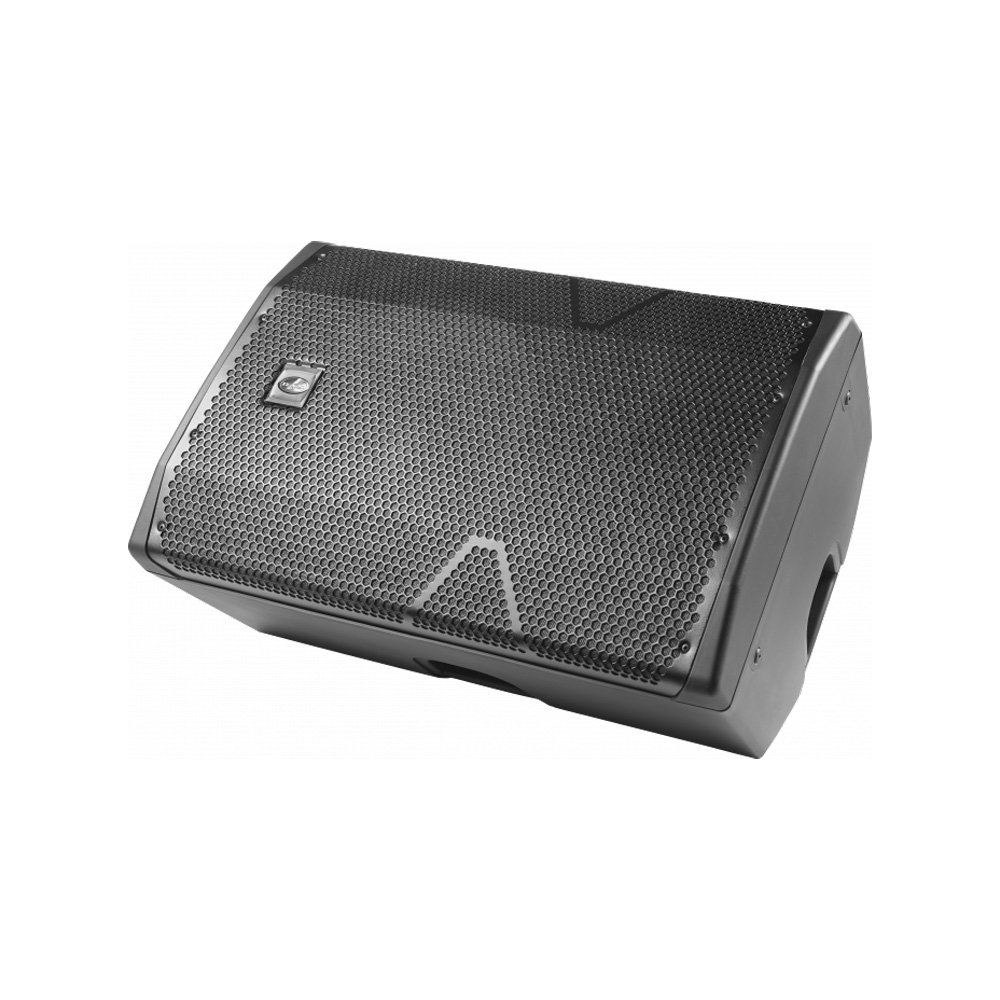

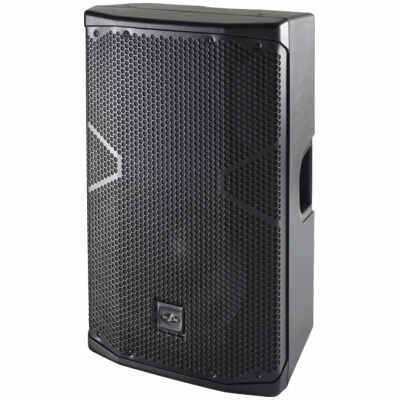

The ALTEA-412A is a powered portable P.A. system with a multi-angle polypropylene enclosure that allows for use as a stage monitor.

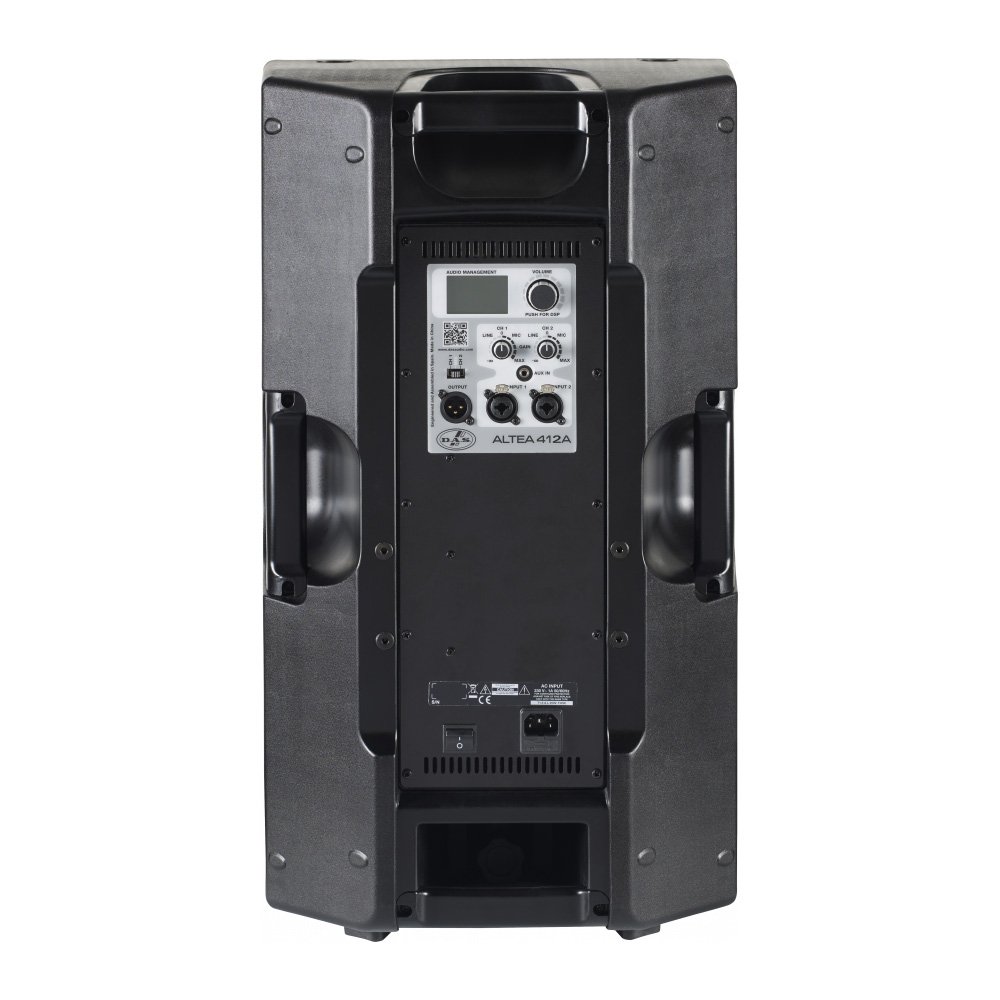

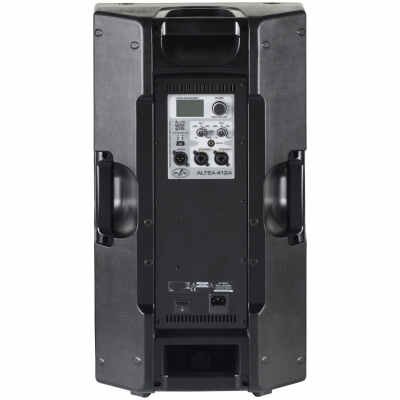

Onboard is Class D two-channel amplifier of exceptional quality providing a total of 800W peak power. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA-412A system. User-configurable voicing, filter and EQ modes, and gain control are achieved by way of a rotary-knob interface and LCD screen on the rear of the cabinet.
The 12MI4 loudspeaker provides accurate low-frequency reproduction with a deep, powerful bass. High frequencies are handled by the M-32 FEM optimized compression driver with 1″ exit offering excellent performance.
FEATURES
- Lightweight multi-purpose system with monitor position
- Ultra lightweight Class D amplifier with SMPS
- User-definable 24-bit DSP with LCD screen
- Presets: Live, Dance, Vocals, Bass Boost, Vocals & Mode
- Stackable 3-band EQ
- Standby Mode
- Rigging points
- Live sound reinforcement
- Speech and vocals
- Music playback in entertainment
- A/V, and institutional venues
SPECIFICATIONS
Performance
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Horizontal Coverage: 90°
- Vertical Coverage: 60°
- Maximum Peak SPL at 1 m: 126 dB
Amplification & DSP
- Amplifier Type: Class D, bi-amplified
- Nominal Amplifier Power (Continuous): 400 W
- Nominal Amplifier Power (Peak): 800 W
- DSP Processor: 24-bit DAScontrol™ with LCD interface
- Input Sensitivity: 1.95 V (+8 dBu)
- Input Impedance: 20 kΩ
Connectors
- Audio Input: 2 x Female XLR
- AUX Input: 1 x 3.5 mm Mini Jack
- Loop Thru: 1 x Male XLR
Enclosure & Build
- Construction: Polypropylene
- Geometry: Trapezoidal
- Rigging: M8 Rigging Points
- Color: Black
- Dimensions (H x W x D): 655 x 380 x 350 mm (25.8 x 15.0 x 13.8 in)
- Net Weight: 15.5 kg (34.2 lb)
Power Requirements
- Current Draw (230 V): 1.0 A
- Current Draw (115 V): 2.0 A
Shipping
- Carton Dimensions (H x W x D): 740 x 450 x 415 mm (29.1 x 17.7 x 16.3 in)
- Shipping Weight: 18.5 kg (40.8 lb)
