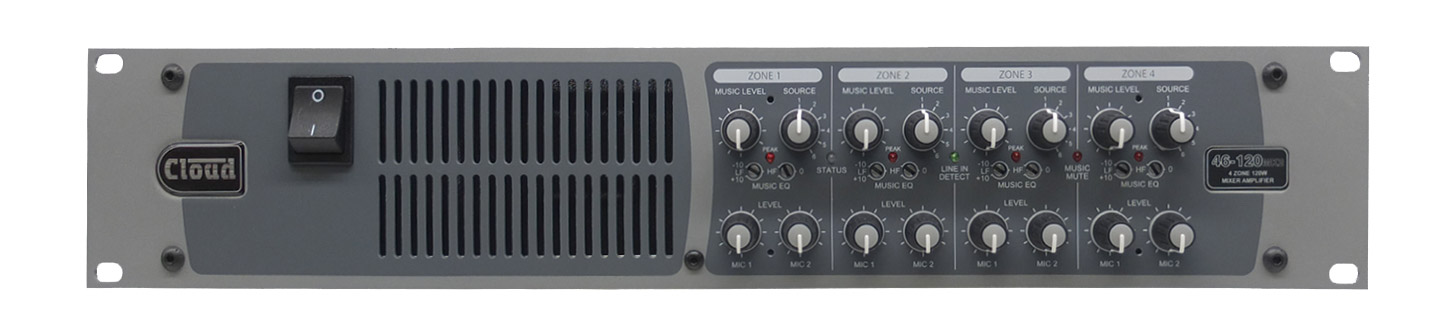

Cloud 46-120MK2EK 4-Zone Integrated Mixer Amplifier – 4 x 120W (EK Version) [281557]

A 4-zone mixer amplifier that offers source selection and volume adjustment of up to six sources and two microphone inputs. 46-120mkII offers 120W at 4/8ohms, or 120W at 70/100V line output as standard. Output power sharing is operational in 70/100V line modes. 2x facility port connections are by way of Cat5 RJ45, allowing daisy chained configuration of up to two LM2 remote plates to the facility port, for zone 1 (zone1 and zone 3, or all), and zone 2 (zone 2 and zone 4). Additional features include individual level and/or source control from either front or remote panel, remote power-down functionality, music on-hold and separate utility output. A digital paging interface allows connection of compatible digital PM paging microphones.

FEATURES

• Provides amplification for four zones, with simple per-zone control of music, mic sources and paging in a single unit
• Available in two versions, with output power ratings of 120 or 240 W
• Transformerless output stages: can be configured to drive either 70/100 V-line systems directly, or low impedance loudspeakers (4/8 ohms)
• Model 46-120MK2 permits power sharing in Hi-Z mode: maximum available power of 240 W may be shared as required between Zones 1 & 3, and/or Zones 2 & 4
• Front panel controls for music source, music level and mic level in each zone
• Two unbalanced and four balanced stereo line inputs, with individual gain trim controls
• Two balanced mic inputs; 12 V phantom power available
• Fixed 100 Hz hi-pass mic channel filters
• Separate microphone limiter circuit to prevent power stage limiter from ducking music signal in the presence of high mic levels
• Separate HF/LF EQ adjustments for mic signals and music source
• Paging control via CDPM Digital Paging Port or short-to-ground access for routing of Mic 1 to any Zone(s)
• Selectable VOX mic-over-music priority
• Selectable LINE 6 priority
• Music Mute control input (N/O and N/C) for interface to an emergency system
• Two Facility Ports for connection of LM-2, L-1 or M-1 remote input modules via screened Cat 5 cable; LM-2 also allows remote control of music level and line input selection
• Facility Ports support BT-1 Bluetooth input module
• Compatible with standard Cloud remote control plates: RL-1 Series (music level) and RSL-6 Series (music level and source selection)
• RS-232 serial and Ethernet control ports; protocol includes global and pre-zone functions
• Power amplifier protection circuitry
• Power amplifier input limiters
• Switchable 65 Hz high-pass filter (per-zone): reduces transformer saturation in 70/100 V-line systems
• Balanced Utility output with separate rear panel controls for music/mic mix: music source can follow Zone 1 selection or be permanently LINE 1
• Two assignable auxiliary outputs from pre-amps (balanced, line level)
• Automatic power-down function (user-selectable)
• Thermostatically-controlled forced-air cooling
• 2U 19” rack mounting unit
