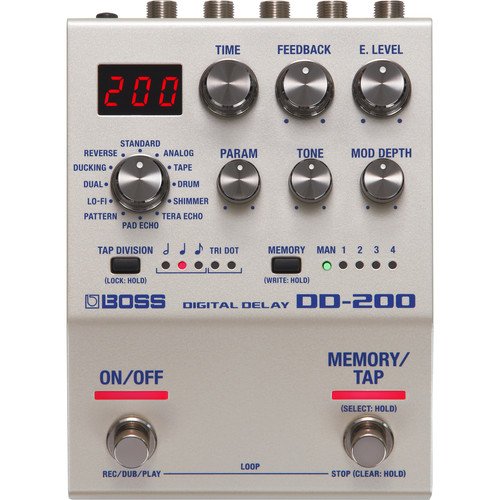

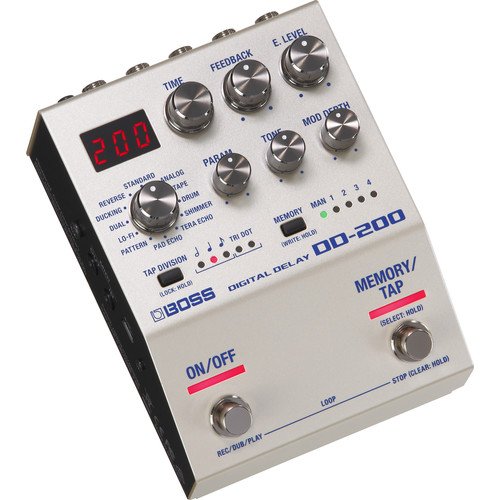

Intended for guitarists, the BOSS DD-200 is a digital delay pedal that packs many of the DD-500’s features and sounds into a smaller footprint. The pedal offers 12 different types of delay, including tape, analog, lo-fi, reverse, and many more. You can control these effects with Time, Feedback, Effect Level, Tone, and Modulation Depth. You’ll also note the Parameter knob, whose function changes depending on the effect you select.
The effects provided herein are achieved by means of a 96 kHz, 32-bit signal path to achieve a high-quality sound in every instance. The bypass path is buffered to preserve your tone, even across long cable runs. There are four memory slots provided to save combinations of parameters and recall them when you desire. A 60-second phrase looper is also on hand.
Features
- FX from DD-500 in Smaller Footprint
- 12 Different Delay Types
- 96 kHz / 32-Bit Signal Path
- Time, Feedback, FX Level & Tone Controls
- Tap Tempo with Selectable Subdivisions
- 4 Memory Slots for Recall
- Buffered Bypass
- Onboard 60-Second Looper
- Powered via Supplied Batteries
- AC Adapter Available Separately
Specifications
| Sampling Frequency | 96 kHz |
| AD/DA Conversion | 32-Bit |
| Processing | 32-Bit Floating Point |
| Modes | 12 Modes: Standard, Analog, Tape, Drum, Shimmer, Tera Echo, Pad Echo, Pattern, Lo-Fie, Dual, Ducking, Reverse |
| Memory | 4 + Manual |
| Nominal Input Level | Input A/Mono and Input B: -10 dBu |
| Maximum Input Level | Input A/Mono and Input B: +7 dBu |
| Input Impedance | Input A/Mono and Input B: 2 MOhms |
| Nominal Output Level | Output A/Mono and Output B: -10 dBu |
| Maximum Output Level | Output A/Mono and Output B: +7 dBu |
| Output Impedance | Output A/Mono and Output B: 1 kOhm |
| Recommended Load Impedance | Output A/Mono and Output B: 10 kOhms or Greater |
| Bypass | Buffered |
| Controls | Mode Knob Time Knob Feedback Knob Effect Level Knob Parameter Knob Tone Knob Mod Depth Knob Tap Division Button Memory Button Memory/Tap Switch On/Off Switch |
| Display | 7 Segments, 3 Characters (LED) |

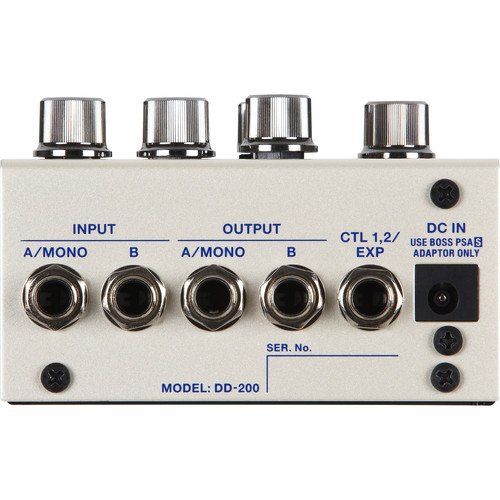

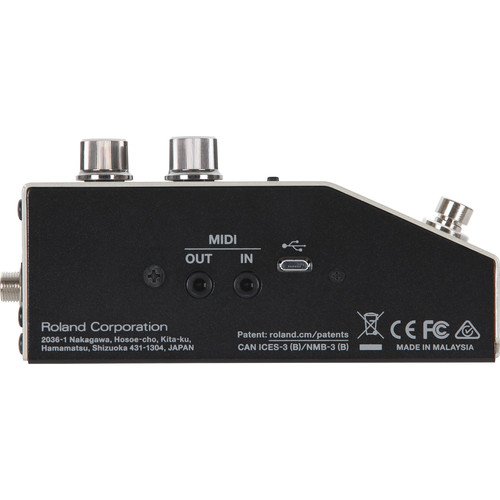

| Connections | 2 x 1/4″ Instrument Inputs, Phone Type 1 x 1/4″ TRS CTL 1, 2/EXP Input, Phone Type 2 x 1/4″ Instrument Outputs 1 x 3.5 mm TRS MIDI Input 1 x 3.5 mm TRS MIDI Output 1 x USB Port 1 x DC Input Jack |
| Power Supply | 3 x Alkaline Batteries, AC Adapter (Available Separately) |
| Current Draw | 225 mA |
| Expected Battery Life | Approximately 4 Hours |
| Dimensions | Without Rubber Feet: 4.0 x 5.4 x 2.5″ / 10.1 x 13.8 x 6.3 cm With Rubber Feet: 4.0 x 5.4 x 2.6″ / 10.1 x 13.8 x 6.5 cm |
| Weight | With Batteries: 24 oz / 680 g Without Batteries: 21.5 oz / 610 g |
| Package Weight | 2.4 lb |
| Box Dimensions (LxWxH) | 7.9 x 6.8 x 4.4″ |
