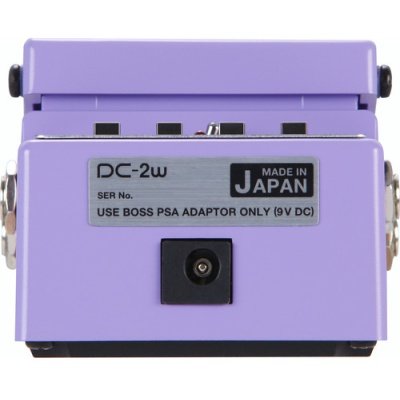

A part of their Waza Craft series, the BOSS DC-2W combines two classic Roland Dimension effects in a single pedal, one suitably sized for your pedalboard. Similar to a chorus effect, the DC-2W provides time-based manipulation that adds dimension to your sound, subtly enhancing both width and depth.
The pedal offers two modes: Standard, which gives you the sound of the original DC-2 Dimension C pedal, and SDD-320 mode, which authentically reproduces the sound of a vintage Roland unit heard on many hit records. The interface is rather simple and intuitive: four different selectors switch among presets. Press two selectors at once to unlock even more presets. Between the two modes, you can get 20 different sounds out of the pedal.
Features
- 20 Different Dimension Effects
- Time-Based, Chorus-Like Effects
- 2 Classic Pedals Authentically Emulated
- 4-Button Preset Interface
- Electronic Switches & LED Indicators
- 4 Sounds in Each Mode with 6 Variations
- Buffer Bypass Circuitry
- Mono or Stereo 1/4″ I/O
Specifications
| Modes | Standard, SDD-320 |
| Nominal Input Level | -20 dBu |
| Input Impedance | 2.2 MOhms |
| Output Impedance | 1 kOhm |
| Recommended Load Impedance | 10 kOhms or greater |
| Bypass | Buffered |
| Controls | Pedal switch Standard / SDD-320 switch Mode selector buttons (x4) |
| Indicators | Check indicator (also serves as battery check indicator) Mode selector indicators (x4) |
| Connectors | 2 x 1/4″ instrument inputs, phone type 2 x 1/4″ instrument outputs, phone type |
| Power Supply | Alkaline battery (9 V, 6LR61) PSA-series AC adapter (available separately) |
| Current Draw | 65 mA |
| Expected Battery Life | Alkaline: Approximately 6 hours under continuous use |
| Dimensions | 2.9 x 5.1 x 2.3″ / 73.0 x 129.0 x 59.0 mm |
| Weight | 15.9 oz / 450.0 g |
Packaging Info
| Package Weight | 1.72 lb |
| Box Dimensions (LxWxH) | 6.05 x 3.75 x 2.65″ |
