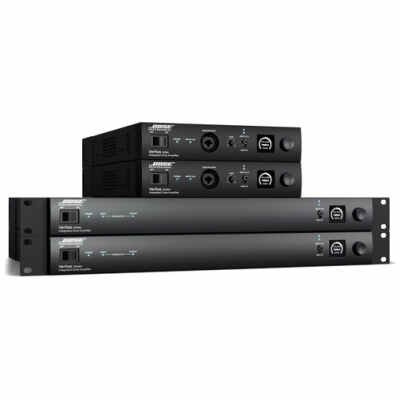

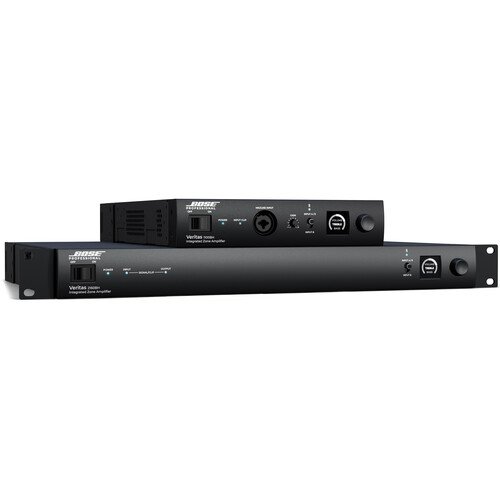

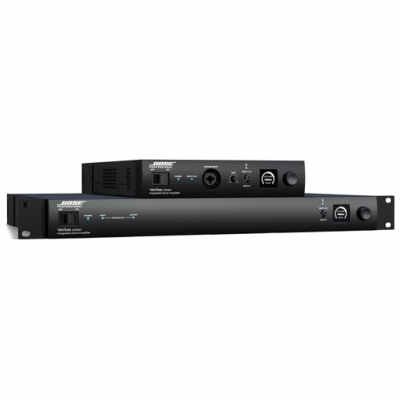

The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.
The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efficiently powers multiple zones with premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations, the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.
FEATURES
- Premium amplification with advanced DSP for optimized performance
- Bluetooth connectivity and RCA connectivity—no wire splicing required
- Intuitive front-panel OLED screen for easy setup and control
- Embedded quick-start QR code in the OLED screen simplifies installation
- Supports high-impedance (70/100V) applications
- Multi-zone flexibility—support for up to four independent zones
- Remote level control with Bose Professional or third-party wall controllers
- Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
- Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
- Opti-Voice paging feature ensures clear speech intelligibility
SPECIFICATIONS
| Category | Specification |
|---|---|
| AMPLIFICATION | |
| Channel Separation | ≤ -58 dBu below rated power, 1 kHz |
| Dynamic Range | 88 dB |
| Frequency Response | 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference |
| Rated Power | 2 × 160 W at 70V/100V |
| THD+N | ≤ 0.5% at rated power |
| AUDIO INPUTS (Analog) | |
| Adjustment Range | 0 dB to -30 dB (line), 0 dB to +50 dB (page) |
| Input Channels | (2) balanced line, (2) unbalanced line, (1) balanced mic/line |
| Connectors | (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock |
| Input Impedance | 20 kΩ (line), 2 kΩ (page) |
| Input Range | -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page) |
| Max Input Level | 22 dBu (line), 12 dBu (page) |
| Nominal Input Level | 4 dBu (line), -38 dBu (page) |
| Sensitivity | -8 dBu (line), -58 dBV (page) |
| AUDIO OUTPUTS (Analog) | |
| Channels | (2) loudspeaker, (1) unbalanced line |
| Connectors | (2) 2-pin inverted Euroblock, (1) RCA stereo pair |
| Nominal Output Level | 2 × 160 W at 70V/100V (loudspeaker), 2 dBu (auxiliary) |
| ELECTRICAL | |
| Mains Connector | IEC C14 inlet |
| Mains Voltage | 100–240 VAC (±10%), 50/60 Hz |
| Protections | High temperature, output short circuit, excessively low/high AC line voltage |
| AC Power Consumption | 13.6 W standby, 500 W maximum |
| INDICATORS & CONTROLS | |
| Front Panel Controls | Power switch, input select switch (A/Bluetooth/B), rotary encoder |
| Rear Panel Controls | Amp mode DIP switches, gain knobs (A, B, page), page threshold knob, mute, control ports |
| INTEGRATED DSP | |
| A/D & D/A Converters | 48 kHz / 24-bit |
| Audio Latency | 10.4 ms (any input to speaker or aux output) |
| Presets | 70 Hz HPF, 80 Hz HPF, AMU105, AMU108, DesignMax, EdgeMax, FreeSpace FS, subwoofer |
| Processing Functions | Loudspeaker EQ, Opti-Voice paging, Dynamic EQ |
| PHYSICAL | |
| Cooling System | Fan system, left-to-right airflow |
| Dimensions (H × W × D) | 44 × 483 × 324 mm (1.7 × 19.0 × 12.8 in) |
| Net Weight | 4.4 kg (9.7 lb) |
| Shipping Weight | 5.8 kg (12.8 lb) |
