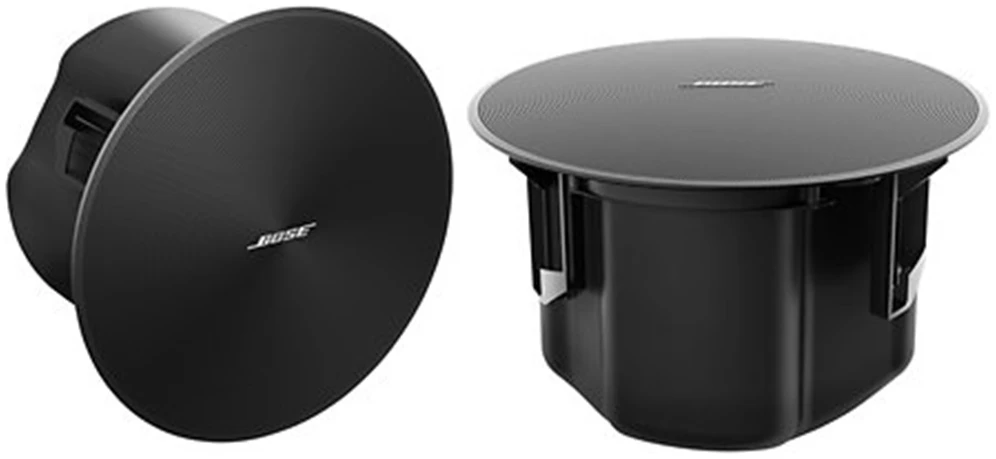

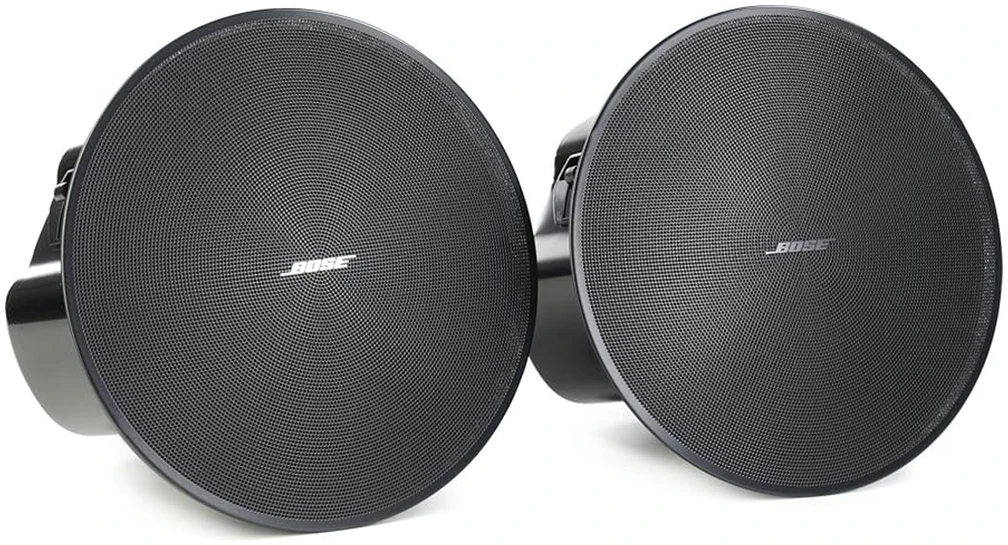

Bose DesignMax DM5C Ceiling Speaker
The Bose DesignMax DM5C Ceiling Speaker Pair is a premium commercial in-ceiling loudspeaker solution engineered to deliver exceptional audio performance, elegant aesthetics, and reliable long-term operation for professional audio installations. Designed by Bose Professional, the DesignMax DM5C combines outstanding sound quality with easy installation, making it an ideal choice for restaurants, hotels, retail stores, offices, conference rooms, educational institutions, healthcare facilities, houses of worship, and hospitality venues.
Featuring a high-performance 5.25-inch woofer and a 1-inch coaxially mounted tweeter, the Bose DesignMax DM5C Ceiling Speaker Pair delivers rich bass, smooth midrange, and crystal-clear high frequencies. The coaxial driver configuration ensures consistent coverage throughout the listening area, providing balanced sound reproduction whether used for background music, foreground music, paging, or multimedia presentations.
Engineered for commercial environments, the Bose DesignMax DM5C Ceiling Speaker Pair offers an impressive frequency response that reproduces music with exceptional clarity and natural detail. Vocals remain intelligible, instruments sound vibrant, and speech announcements are reproduced with excellent precision. Whether creating a relaxing atmosphere in a luxury hotel lobby or delivering impactful presentations in a corporate boardroom, these speakers provide professional-quality performance.
One of the standout features of the Bose DesignMax DM5C Ceiling Speaker Pair is its sleek and modern design. The bezel-less grille blends seamlessly into contemporary ceilings, providing an elegant appearance that complements virtually any interior décor. The magnetic grille attachment allows for quick installation while maintaining a clean architectural finish that architects, interior designers, and system integrators appreciate.
Installation has been carefully simplified with the Bose QuickHold™ mounting system. This innovative mounting mechanism temporarily supports the speaker during installation, allowing technicians to complete wiring and secure the speaker with greater efficiency and reduced labor time. The included tile bridges and C-ring supports provide additional reinforcement for suspended ceiling installations, ensuring secure and professional mounting.
The Bose DesignMax DM5C Ceiling Speaker Pair is designed for exceptional installation flexibility. The speakers support both 8-ohm low-impedance operation and 70V/100V distributed audio systems, thanks to the integrated transformer with front-access tap selector. Installers can quickly configure the speaker for different commercial audio systems without removing the speaker from the ceiling, significantly reducing installation and maintenance time.
Built with premium-quality materials, the Bose DesignMax DM5C Ceiling Speaker Pair offers long-lasting durability suitable for continuous commercial operation. The rugged enclosure, corrosion-resistant grille, and reliable internal components ensure consistent performance even in demanding indoor environments where reliability is critical.
The speakers are particularly well suited for distributed audio systems where even sound coverage is essential. Their wide dispersion characteristics help minimize dead spots while reducing the number of speakers required for many installations. This contributes to lower installation costs while maintaining excellent audio quality throughout the listening area.
For music playback, the Bose DesignMax DM5C Ceiling Speaker Pair delivers warm bass, smooth vocals, and detailed treble that create an enjoyable listening experience across a wide range of musical genres. From soft background music in retail environments to higher-volume foreground music in restaurants and hospitality venues, these speakers consistently maintain clarity and balance.
Speech intelligibility is equally impressive, making the speakers an excellent choice for paging systems, conference rooms, educational facilities, airports, hospitals, and public buildings. Every announcement is reproduced with remarkable clarity, ensuring effective communication in busy commercial environments.
The Bose DesignMax DM5C Ceiling Speaker integrates seamlessly with Bose Professional amplifiers and DSP processors while remaining fully compatible with other professional AV systems. This flexibility allows system designers to build scalable audio solutions for projects of varying sizes and complexity.
With its combination of premium acoustic performance, elegant architectural styling, flexible installation options, and trusted Bose Professional engineering, the Bose DesignMax DM5C Ceiling Speaker Pair represents an outstanding investment for commercial audio installations. Businesses seeking reliable, visually appealing, and high-quality ceiling speakers can confidently choose this model for long-term performance and customer satisfaction.
Whether you’re upgrading an existing sound system or designing a new commercial audio installation, the Bose DesignMax DM5C Ceiling Speaker Pair provides exceptional value by combining superior sound quality, installation convenience, attractive aesthetics, and dependable reliability. It is an excellent choice for professional AV integrators, consultants, architects, and facility managers who demand premium audio performance with minimal installation complexity.
Explore our full range of Ceiling Speaker
Features
- Premium 2-way coaxial ceiling speaker
- Sold as a pair
- 5.25-inch high-excursion woofer
- 1-inch coaxially mounted tweeter
- Exceptional music and speech clarity
- Wide 125° conical coverage
- 8-ohm and 70V/100V operation
- Front-access transformer tap selector
- Bose QuickHold™ installation system
- Magnetic bezel-less grille
- Elegant architectural appearance
- Low-profile enclosure design
- Included tile bridge and C-ring
- Fast commercial installation
- High sensitivity for efficient performance
- Indoor commercial applications
- Reliable Bose Professional engineering
- Compatible with Bose Professional amplifiers and DSPs
- Black finish
- Long-lasting commercial durability
Specifications
| Specification | Details |
|---|---|
| Product Name | Bose Professional DesignMax DM5C |
| Speaker Type | 2-Way Coaxial In-Ceiling Speaker |
| Sold As | Pair |
| Woofer | 5.25-inch (133 mm) |
| Tweeter | 1-inch (25 mm) Coaxial |
| Frequency Response | 65 Hz – 20 kHz |
| Coverage Pattern | 125° Conical |
| Nominal Impedance | 8 Ohms |
| Transformer Taps | 70V/100V with Bypass |
| Power Handling (Continuous) | 60 W |
| Peak Power Handling | 240 W |
| Sensitivity | 87 dB SPL |
| Maximum SPL | 105 dB Continuous / 111 dB Peak |
| Connector | Euroblock |
| Mounting System | QuickHold™ |
| Grille | Magnetic Bezel-less |
| Included Accessories | Tile Bridge, C-Ring, Cutout Template |
| Color | Black |
| Application | Commercial Indoor Audio |
| Weight (Each) | Approx. 4.1 kg |
Download the Technical Datasheet – Bose DM5C
