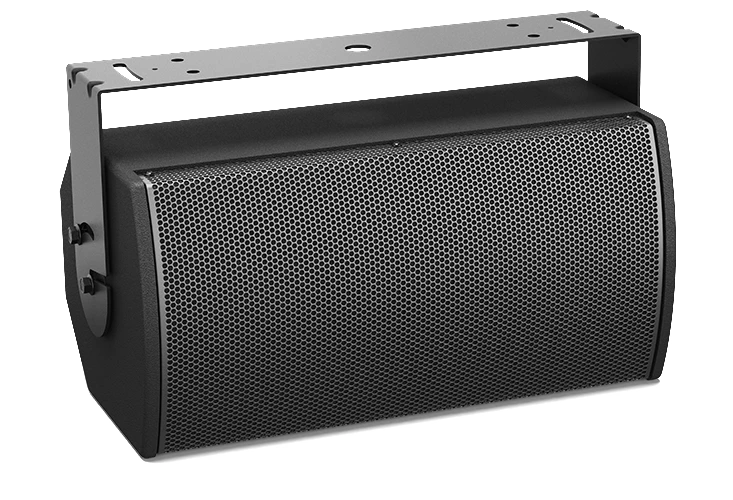

Bose AMU108 ArenaMatch Utility Outdoor Loudspeaker, Designed for zone-fill coverage or high-SPL foreground music, the compact Bose ArenaMatch Utility Series loudspeakers have a similar tonal balance to ArenaMatch array modules. They feature the same EMB2S compression driver as the arrays, ensuring consistent sound, and have the same IP55 weather rating.

The AMU108 is a small-format loudspeaker for outdoor applications requiring high-quality audio from a compact source. It delivers wide, even coverage with a 90° x 60° constant-directivity high-frequency horn, Bose LF8 8-inch woofer, 80-16kHz frequency response and 121dB peak SPL.

Bose AMU108 Applications:

Performance venues

Houses of worship

Hospitality venues

Retail stores

Conference centers

Restaurants and bars

Features

• Perfect for outdoor use with an IP55 weather rating, 3-layer stainless steel grille, water-resistant coating on the woofer cone, polyurethane exterior coating, and a molded cover to protect the inputs
• Adaptable to a variety of configurations, the AMU105 ships with 70/100V transformer inputs and a passive crossover with filters optimized for each transducer
• Use for zone-fill to support ArenaMatch array systems or for high-level foreground music in any outdoor venue
• An excellent match for use in systems with Bose Professional products such as PowerMatch amplifiers and ControlSpace DSP processors

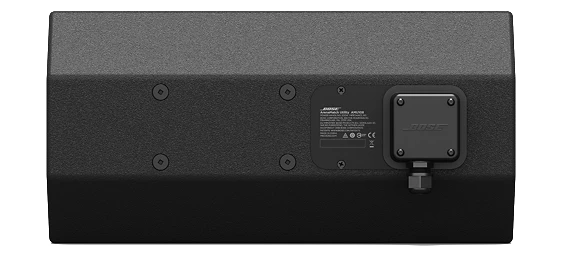

• Included stainless steel U-bracket for easy mounting plus a rear enclosure panel with M8 threaded inserts to accept third-party mounting brackets
• 90° x 60° constant-directivity HF horn can be rotated to provide even coverage in either vertical or horizontal installation
• Available in black or white 2-part spray polyurea finish

Specifications

• Frequency Response: 90Hz to 16kHz (±3dB)
• Frequency Range (-10dB): 80Hz to 16kHz
• Sensitivity: 91dB free field, 93dB wall/ceiling mounted
• Max. SPL at 1M: 119db f
• ee field, 122dB wall/ceiling mounted
• Power Handling: 800W peak
• Power Handling, long-term continuous: 200W
• Transducers:
  • LF: 1x Bose LF8 high-excursion 8-inch woofer with 2-inch voice coil
  • HF: 1x Bose EMB2S extended high-frequency compressions driver with 2-inch voice coil
• Nominal Impedance: 8?
• Nominal Coverage Pattern: 90° horizontal x 60° vertical
• Enclosure: Exterior-grade plywood
• Finish: 2-part spray polyurea coating (black or white)
• Connectors: 1x barrier strip (accepts 10 to 18 wire gauge)
• Suspension/Mounting: 2x M8 threaded inserts for U-bracket, 4x M8 threaded inserts on rear (127 x 70 mm, 4-bolt pattern)
• Dimensions: 9.3” high x 18.5” wide x 11.0” deep (235 x 470 x 279 mm) with input cover
• Weight: 23.3 lbs. (10.6 kg) / 27.7 lbs. (12.6 kg) with u-bracket
