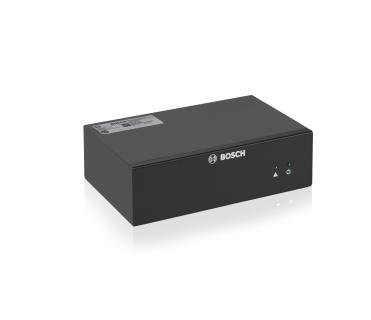

The PRP-IM1A is an audio output IP module that can be connected to the PROSPERO public address system via a standard IP network for audio signal transmission. Supports PoE, allowing connection to a standard Ethernet switch using a Cat5e cable. The rear panel provides 1 audio output port for connecting to an amplifier. The screw holes in the housing allow a module to be securely mounted on the cabinet tray. 3 IP modules can be mounted side by side at a 1U height.
FEATURES
- Transmits audio signals over IP network
- PoE power supply, direct connection with a single cable
- Compact form factor for cabinet tray mounting
- For PROSPERO Public Address systems
SPECIFICATIONS
| Rated input voltage (VDC) | 48Â V |
| Standard | IEEE 802.3af Class 3 |
| Power consumption | <5Â W |
| Ethernet type | 100 BASE-TX |
| Ethernet protocol | TCP/IP, UDP, RTP, TFTP, HTTP, HLS |
| Audio encoding | MP3, PCM |
| Interface | 1x RJ45 |
| Frequency response | 100 Hz — 18 kHz |
| Sampling rate | 44.1Â kHz |
| Type | 1x Line level output |
| Connector | 1x 3-pin Phoenix connector |
| Maximum output level | 6Â dBu |
| Output impedance | <400Â ? |
| Material | Metal housing |
| Dimensions (H x W x D) | 44Â mm x 146Â mm x 105Â mm |
| Weight | 465Â g |
| Color (RAL) | RAL 9017 Traffic black |
| Operating temperature (°C) | -5°C — 45°C |
| Storage and transportation temperature (°C) | -40°C — 70 C |
| Operating relative humidity, non-condensing (%%) | <95% |
