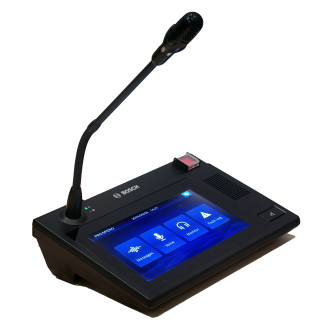

The PRP-CST is a desktop call station with a touch screen and gooseneck microphone, capable of connecting to the PROSPERO Public Address System via a standard IP network for manual and pre recorded announcements. The call station supports PoE, allowing connection to a standard Ethernet switch using a Cat5e cable. The front side offers a 7-inch full color touch screen with PIN code login authentication for access control, a PTT button and an emergency broadcast button with a protective cover to prevent accidental activation, used for daily broadcast operations. An audio input port is provided near the bottom of the device for connecting local audio sources. A built-in monitoring speaker allows for zone monitoring via the touch screen
FEATURES
- PoE, one-line direct connection
- PTT button and emergency broadcast button
- Built-in speaker, supports zone monitoring
- Audio input port for connecting local audio sources
- Suitable for the PROSPERO Public Address System
SPECIFICATIONS
| Rated input voltage (VDC) | 48Â V |
| PoE input | PoE IEEE 802.3af Class 3 |
| Power consumption | <7Â W |
| Ethernet type | 100 BASE-TX |
| Ethernet protocol | TCP/IP, UDP, RTP, TFTP, HTTP, HLS |
| Audio encoding | MP3, PCM |
| Interface | 1x RJ45 |
| Nominal acoustic input level (dB SPL) | 80 dB SPL — 100 dB SPL |
| Maximum acoustic input level (dB SPL) | 120Â dBÂ SPL |
| Signal-to-noise ratio (SNR) | >70Â dBA |
| Polar pattern | Unidirectional |
| Frequency response (+3/-6 dB) (Hz) | 100 Hz — 14 kHz |
| Display size (in) | 7Â in |
| Touchscreen | Capacitive |
| Color depth | 24-bit |
| Display resolution (pixels) | 800 x 480Â px |
| Brightness | 300 cd/m2 |
| Rated input level 500 Hz — 3 kHz (@1 m) | 75 dB SPL +/- 6 dB |
| Frequency range (-10 dB) (Hz) | 500 Hz — 3 kHz |
| Frequency response | 100 Hz — 18 kHz |
