Description

Enjoy engaging presentations with a minimal risk of shadows with the BenQ EW800ST 3300-Lumen WXGA Short-Throw DLP Projector. It features a short 0.49:1 throw ratio, which will allow you to place it very near your screen or other display surface, reducing the likelihood of someone passing in front of it and casting a shadow. Its 3300 lumens of brightness combined with its 20,000:1 dynamic contrast ratio and 1280 x 800 native resolution will help ensure clear images even in rooms with ambient light.

The included adapter provides Wi-Fi connectivity and Bluetooth audio output to compatible speakers or headphones. The Android operating system built into the projector enables you to download apps to its onboard 16GB of storage.

The EW800ST has VGA and HDMI inputs to support both analog and digital video source devices. Its VGA output lets you daisy-chain multiple projectors or displays together so you can present the same thing in multiple areas, and the analog audio input and output and integrated dual 1W speakers enable sound to accompany your presentations. A remote control and VGA cable are also included as an added convenience.



Features

  • Brightness of 3300 Lumens
  • WXGA (1280 x 800) Native Resolution
  • Android OS Onboard
  • Wi-Fi Connectivity via Included Adapter
  • 0.49:1 Throw Ratio
  • HDMI & VGA Inputs
  • VGA Output for Loop-Through
  • RS-232 & App Control
  • Dual Built-In 1W Speakers
  • VGA Cable & Remote Control Included

Specifications

Key Specs
Display System
0.65″ DC3 DMD DLP
Native Chip Resolution
1280 x 800 (WXGA)
Maximum Brightness
3300 Lumens
Throw Ratio
0.49:1
Projection Size
70 to 120″ / 177.80 to 304.80 cm

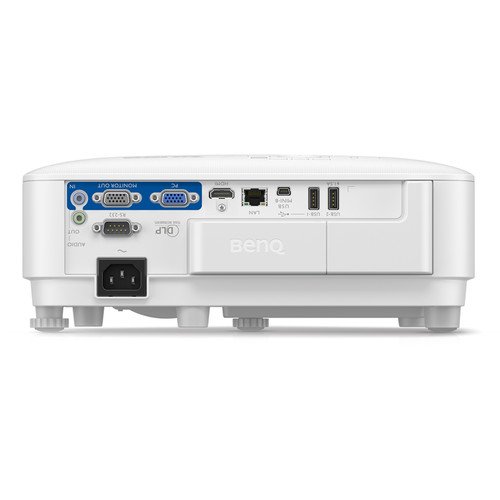

Inputs/Outputs
1x HDMI Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8″ / 3.5 mm Mini Audio Input
1x 1/8″ / 3.5 mm Mini Audio Output
2x USB-A 2.0 Control, Data Input
1x USB-A 2.0 Data, LAN
1x Mini-USB 2.0 Service Input
1x RJ45 (Ethernet) LAN
1x DE-9/DB-9 (RS-232) Control Input
Light Source
Lamp



Image Display
Display System
0.65″ DC3 DMD DLP
Native Chip Resolution
1280 x 800 (WXGA)
Supported Resolutions
Maximum: WUXGA – 1920 x 1200
Maximum Brightness
3300 Lumens
Offset
105% ± 2.5% vertical
Aspect Ratio
Native: 16:10
Dynamic Contrast Ratio
20,000:1
Supported 3D Formats
Frame Sequential
Side by Side
Top Bottom
Color Depth
10-Bit (1.07 Billion Colors)



Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/2.6
Focal Length
6.9mm
Optical Zoom
No
Throw Distance
2.428 – 4.134′ / 0.74 – 1.26 m
Throw Ratio
0.49:1
Projection Size
70 to 120″ / 177.80 to 304.80 cm



Features
Keystone Correction
Vertical: ± 30°
Digital Zoom
2x
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Stereo)
Speaker Power
2W



Input/Output Connectors
Inputs/Outputs
1x HDMI Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8″ / 3.5 mm Mini Audio Input
1x 1/8″ / 3.5 mm Mini Audio Output
2x USB-A 2.0 Control, Data Input
1x USB-A 2.0 Data, LAN
1x Mini-USB 2.0 Service Input
1x RJ45 (Ethernet) LAN
1x DE-9/DB-9 (RS-232) Control Input



Hardware
Operating System
Android 6
Internal Storage
16 GB
Wireless LAN / Wi-Fi
Yes, with Included Adapter
Bluetooth
4.0



General
Light Source
Lamp
Lamp Power
200 W
Expected Lamp Life
Full Brightness: 5000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours
Fan Noise
Full Brightness: 33 dB
Low Brightness: 29 dB
Security
Cable Lock Slot
Padlock
Security Bar
Supported Languages
Arabic
Bulgarian
Croatian
Czech
Danish
Dutch
English
Farsi
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 320 W
Medium Brightness: 280 W
Low Brightness: 235 W
Standby Mode (Lamp Off): < 2 W
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
10 to 90%
Storage Humidity
10 to 90%
Dimensions (W x H x D)
11.7 x 4.7 x 9.8″ / 296.0 x 120.0 x 250.0 mm
Weight
5.73 lb / 2.6 kg



Packaging Info
Package Weight
8.5 lb
Box Dimensions (LxWxH)
16.1 x 13.04 x 7.6″





A2B4V00/00
