Description

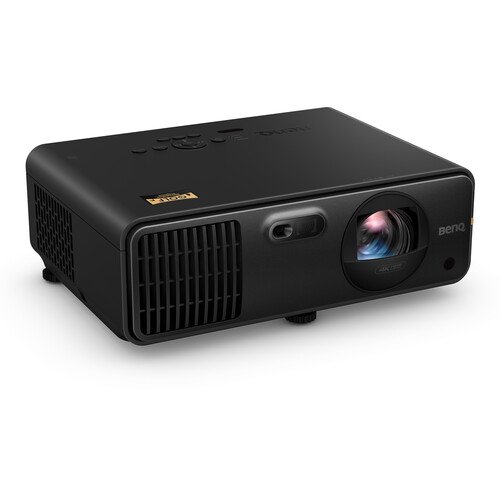

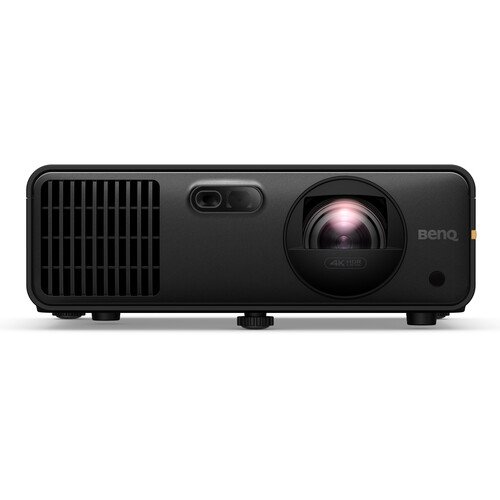

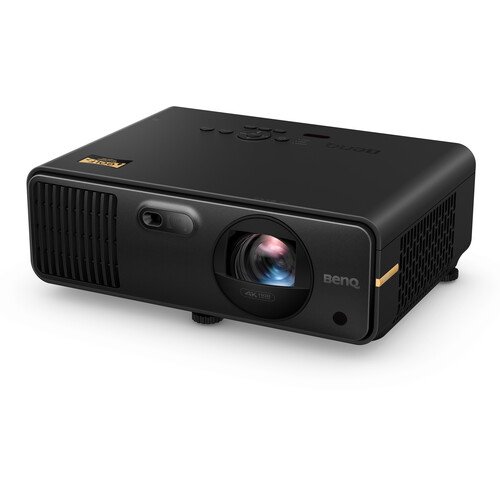

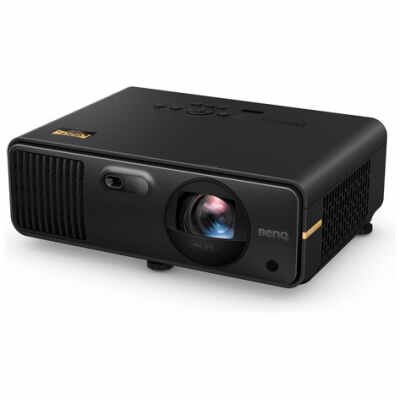

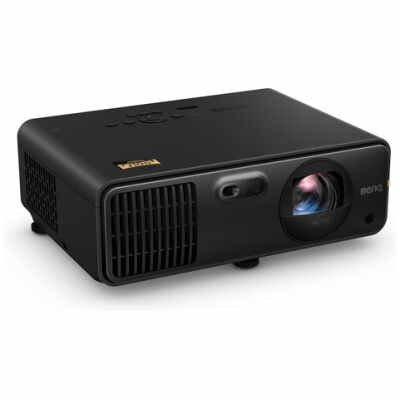

Switch easily from immersive golf sim to 4K home cinema with the BenQ AK700ST 4000-Lumen XPR UHD 4K Short-Throw Laser DLP Golf Simulator Projector. Featuring an Auto Screen Fit function with support for 16:9, 16:10, 4:3, and 1:1 screen ratios, the AK700ST provides a quick and simple setup with flexible installation options.

Fill a 16:9 screen up to 200″ in diagonal from just 10 to 12′ away. 4000 ANSI lumens and 95% Rec.709 color accuracy ensure bright images, with high contrast, in a wide variety of lighting scenarios. Connect sources via HDMI 2.0, or USB-C with support for HDR10 and HLG content. BenQ’s exclusive Golf Mode is tailored for different golf course environments with authentic colors to deliver an immersive experience from the most famous courses in the world.

FEATURES

  • Designed for Golf Simulation
  • Brightness of 4000 ANSI Lumens
  • UHD 4K 3840 x 2160 Onscreen Resolution

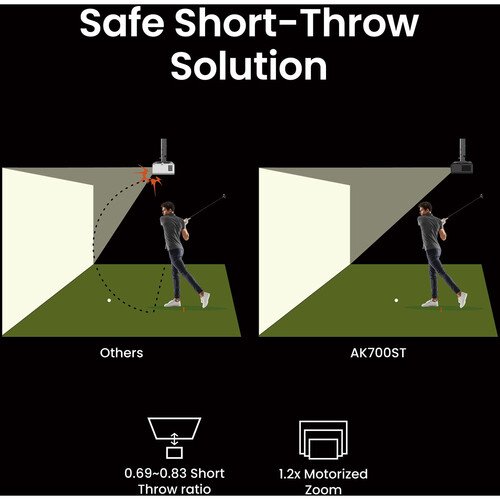

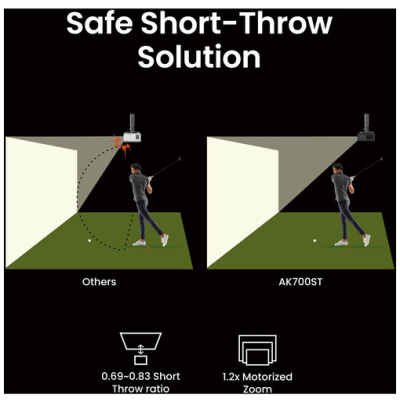

  • 0.69 to 0.83 Short-Throw Ratio
  • Supports HDR10 & HLG Content
  • 95% Rec.709 Color Accuracy
  • 1 x USB-C & 2 x HDMI 2.0 Inputs
  • Auto Screen Fit Function
  • IP5X Certified Dustproof
  • 20,000 Hours of Estimated Laser Life

APPLICATIONS

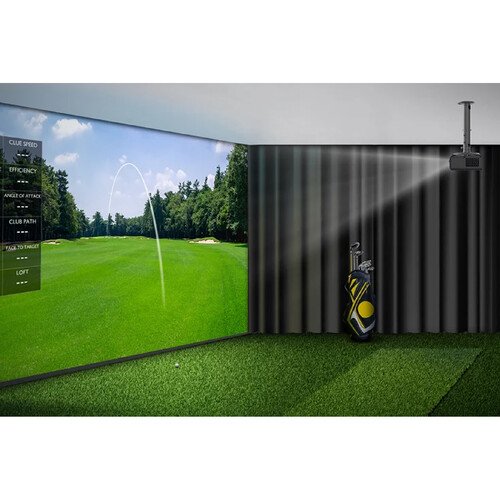

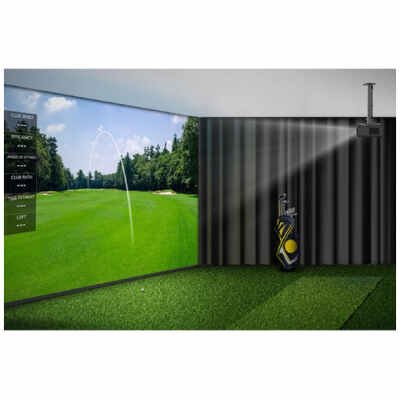

  • Golf simulator setups (residential & commercial)
  • Indoor sports training facilities
  • Home entertainment rooms
  • Conference rooms & digital signage

SPECIFICATIONS

Key Specs
Display System
1-Chip DMD DLP
Native Resolution
1920 x 1080
Maximum Brightness
4000 Lumens (ANSI)
Throw Ratio
0.69 to 0.83:1 (150″ Screen Size @ 8.2′ / 2.5 m)
Projection Size
32 to 200″ / .8 to 5.1 m
HDR Support
Yes: HDR10/Hybrid Log Gamma

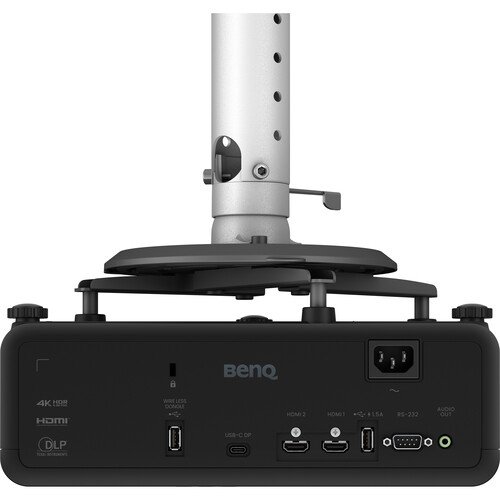

Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x USB-C Audio, Power, Video Input/Output
1x USB-A Power Output
1x USB-A LAN Input
1x 1/8″ / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control Input
Light Source
Laser Phosphor

Image Display

Display System
1-Chip DMD DLP
Native Resolution
1920 x 1080
On-Screen Resolution
Up to 3840 x 2160 via Pixel-Shift Technology
Supported Resolutions
Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness
4000 Lumens (ANSI)
Offset
102.5% vertical
Aspect Ratio
Native: 16:9
Supported: 16:10
Supported: 4:3
Supported: 1:1
DLP Link 3D
Yes
Supported 3D Formats
Frame Sequential
Frame Packing
Side by Side
Top Bottom
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15.63 to 135kHz
Vertical: 24 to 120Hz

Lens

Includes Lens
Yes
Focus
Auto
Aperture
f/2.53 to 2.73
Focal Length
10.2 to 12.24mm
Optical Zoom
Powered:
Throw Distance
2 to 12′ / 0.6 to 3.7 m
Throw Ratio
0.69 to 0.83:1 (150″ Screen Size @ 8.2′ / 2.5 m)
Projection Size
32 to 200″ / .8 to 5.1 m

Features

Keystone Correction
Auto / Manual to Vertical: ± 30°
Auto / Manual to Horizontal: ± 30°
HDR Support
Yes: HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP)
No

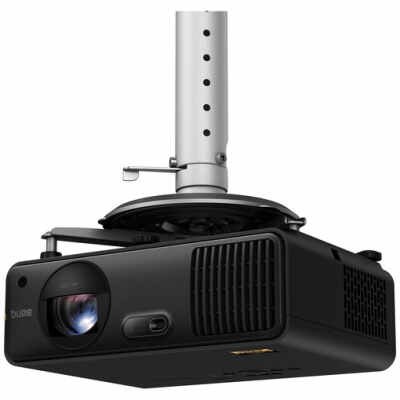

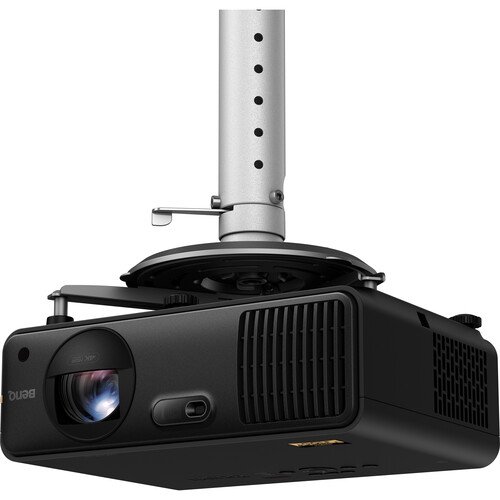

Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Mono)
Speaker Power
10 W
Projection Tilt Option
Yes

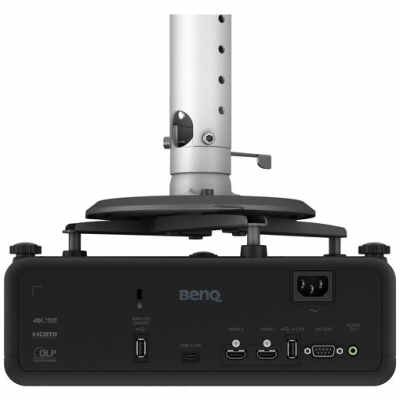

Input/Output Connectors

Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x USB-C Audio, Power, Video Input/Output
1x USB-A Power Output
1x USB-A LAN Input
1x 1/8″ / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control Input
HDCP Support
Yes: Version 1.4/2.2
Media/Memory Card Slot
No

Hardware

Mobile App Compatible
No
Wireless LAN / Wi-Fi
No, Optional Adapter Available
Bluetooth
No

General

Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Security
Cable Lock Slot
Security Bar
Supported Languages
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Italian
Japanese
Korean
Malaysian
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 320192 W
Standby Mode (Lamp Off): < 0.5 W
Certifications
TUV, UL
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Dimensions (W x H x D)
11.9 x 4.4 x 9.2″ / 303.5 x 112.4 x 234.5 mm
Weight
7.5 lb / 3.4 kg

Packaging Info

Package Weight
10.555 lb
Box Dimensions (LxWxH)
16.6 x 13.6 x 6.7″
