Description

Add tight punchy low-end to your PA setup with the Alto Professional TS15S, a 15″ powered subwoofer designed to provide adjustable low-frequency reinforcement for sound engineers and DJs in live stage, theater, and club setups. Class-D amplification drives the 15″ high-excursion woofer to produce 2500W of peak power output and a frequency response of 36 to 110 Hz (-3 dB).

The TS15S offers two XLR-1/4″ combo inputs and two XLR outputs. The user-selectable EQ tunings (Off, Live, DJ) and the phase-alignment selector switch (0, 90, 180, 270°) allow you to fine-tune the subwoofers performance when integrating with full-range tops, ensuring a tight and professional sound. The internally braced MDF cabinet features a front port and a 1.4″ mounting socket, while the integrated and recessed carrying handles simplify transportation between gigs. The Alto Professional TS15S ships with an IEC power cable.

FEATURES

  • For Live Stage, Theater, and Club Setups
  • 15″ High-Excursion Woofer
  • 36 to 110 Hz Frequency Range (-10 dB)
  • Class-D Power Amplifier
  • Clip, Thermal, and Overdrive Protection
  • Combo XLR-1/4″ Inputs, XLR Outputs
  • 3 User-Selectable EQ Tunings
  • Phase Alignment (0, 90, 180, 270°)
  • Integrated Carrying Handles
  • Includes Power Cable

SPECIFICATIONS

Key Specs

Frequency Range/Response
36 Hz to 110 Hz (-10 dB)
36 Hz to 110 Hz (-3 dB)
Enclosure Type
Bass-Reflex
Total Output Power
625 W RMS / 2500 W Peak
Amplifier Class
Class-D

Drivers

LF Driver
1x 15″ / 38 cm Woofer
Voice Coil: 3″ / 7.6 cm

Performance

Frequency Range/Response
36 Hz to 110 Hz (-10 dB)
36 Hz to 110 Hz (-3 dB)
Maximum SPL
132 dB (Peak)
Protections
Thermal, Transducer Overdrive

Signal Processing

EQ & Filters
Preset EQ Curves
Dynamic Processing
Peak Limiter
Alignment Delay
No
Digital Signal Processing
No

Connectivity

Audio I/O
2x Combo XLR-1/4″ TRS Line Input
2x XLR 3-Pin Line Output
Network I/O
No
USB I/O
No
Wireless
No
Mobile App Compatible
No

Power

AC Input Power
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Power Consumption
1600 W

Physical

Color
Black
Mounting

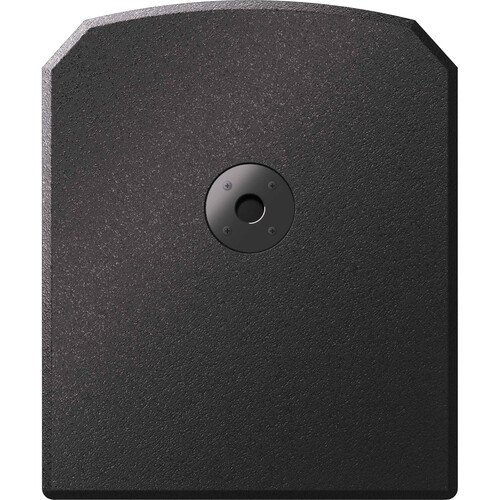

1 x 1.42″ / 36 mm Pole Socket (Top)
Handles
1x Each Side
Construction Material
MDF
Environmental Resistance
No
Dimensions
24.7 x 24.7 x 20.6″ / 62.7 x 62.7 x 52.3 cm
Weight
87.1 lb / 39.5 kg

Packaging Info

Package Weight
94.7 lb
Box Dimensions (LxWxH)
29 x 25 x 25″
