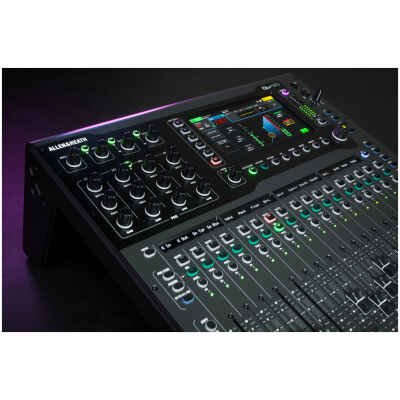

Allen & Heath QU-5 is a compact 38-in / 24-out digital mixer powered by the 96kHz XCVI core, offering DEEP Processing, multitrack recording, and flexible routing across four customizable layers. It features 17 motorized faders, 16 digitally controlled mic preamps, and a 7″ capacitive touchscreen with redesigned UI. The mixer includes six Multi-FX engines, 32×32 USB-C audio interface, SD card multitrack support, and Everything I/O connectivity via SLink. Ideal for touring, broadcast, and hybrid AV setups requiring high-resolution audio and hands-on control.
FEATURES
- 38 input channels / 24 output buses
- 17 × 100mm motorized faders
- 16 × XLR/Combo mic/line inputs
- 12 × XLR outputs
- 7″ capacitive touchscreen with redesigned UI
- 6 × Multi-FX engines with dedicated returns
- 32×32 USB-C audio interface
- SD card multitrack recording/playback
- SLink port for Everything I/O expanders
- DEEP Processing, Gain Assistant, Feedback Assistant
- Rackmountable (optional kit)
SPECIFICATIONS
| Model | QU-5 |
| Brand | Allen & Heath |
| Series | QU |
| Category | Digital Mixer |
| Inputs | 38 (16 Mic/Line + Digital + USB) |
| Outputs | 24 (12 XLR + Digital + USB) |
| Faders | 17 × Motorized |
| Touchscreen | 7″ Capacitive |
| USB Interface | 32×32 USB-C |
| SD Recording | 32-channel Multitrack |
| FX Engines | 6 |
| Dimensions | 643 × 506 × 306 mm |
| Weight | 12.4 kg |
| Warranty | 3 Year Manufacturer Warranty |
| GTIN | 6938122243834 |
