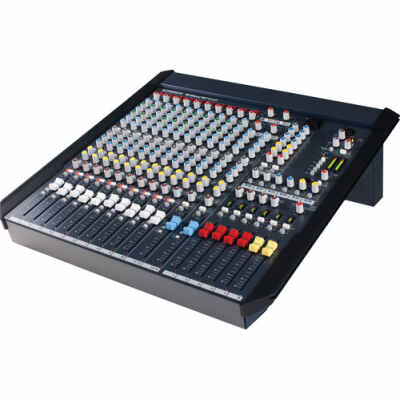

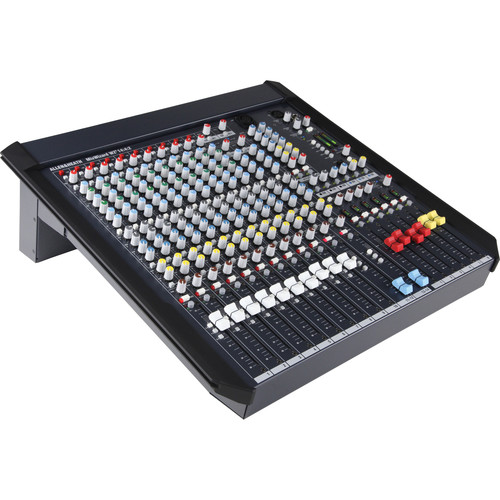

The MixWizard WZ4 14:4:2 from Allen & Heath is a desk/rack mountable professional-grade live sound mixer with ten mic/line inputs, 48V phantom power, and balanced XLR/TRS jacks. It can be used in scenarios where you don’t need a lot of channels for applications such as microphones, keyboards, and equally at home for sound re-enforcement, on monitors, music playback systems, and more.

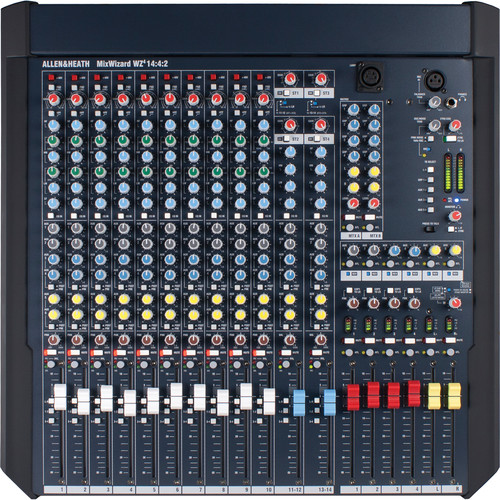

The WZ4 14:4:2 is built with two dual-stereo channels, a 4-band EQ with 2 sweepable mids, and 100mm faders. Furthermore, it has 12-segment bargraph metering, six aux sends, and a QCC connector system for easy desktop, rack, or flightcase mounting.
This fourth generation MixWizard console includes the option to fit a multichannel USB interface with a 16-channel soundcard for easy multitrack recording and 2-track playback.
Features
Specifications
| Number of Analog Input Channels | 14 |
| Number of Mic Preamps | 10 |
| Analog Output Channels | 1 x Stereo Master Output 1 x Mono Master Output 1 x Stereo Control Room/Monitor Output 2 x Mono Matrix Output 4 x Mono Bus/Subgroup Output 2 x Mono Aux Send Output 1 x Stereo Tape/Record Output 10 x Mono Direct Output 1 x Stereo Headphone Output |
| Mix Routing | 6 x Aux Send |
| Meters | Main Meter: 12-Segment LED Channel Meter: 2-Segment LED |
| Meter Range | Main Meter: -30 dB to +16 dB Peak/Clip Channel Meter: -12 dB to +16 dB Peak/Clip |
| Meter Calibration | 0 VU on Meter = +4 dBu at Main Output |
| EQ Parameters | Mono Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 500 Hz to 15 kHz, 1.8 Q (Semi-Parametric) Lo-Mid: ±15 dB at 35 Hz to 1 kHz, 1.8 Q (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 12 kHz (Shelving) Hi-Mid: ±15 dB at 2.5 kHz, 1.8 Q (Notch/Peak) Lo-Mid: ±15 dB at 250 Hz, 1.8 Q (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) |
| Filters | High-Pass: 80 Hz, 12 dB/Octave |
| Built-In Effects | None |
| Headroom | Channel: +21 dB Main Mix: +23 dB |
| Frequency Response | 10 Hz to 30 kHz ±0.5 dB |
| Output Level | XLR Output: +26 dBu at Max Gain (into 600 Ohms) 1/4″ Output: +21 dBu at Max Gain (into 2 Kilohms) |
| Crosstalk | Adjacent Channels, Fader Off, Muted: < 90 dB at 1 kHz |
| EIN | Mic Input: -127 dB |
| Noise Floor | < -95 dBu (Residual Output Noise, 22 Hz to 22 kHz) < -83 dBu (Master Level at Unity, -87 dB S/N, 22 Hz to 22 kHz) |
| SNR | -99 dB |
| THD+N | < 0.004% (+10 dBu, 1 kHz) |

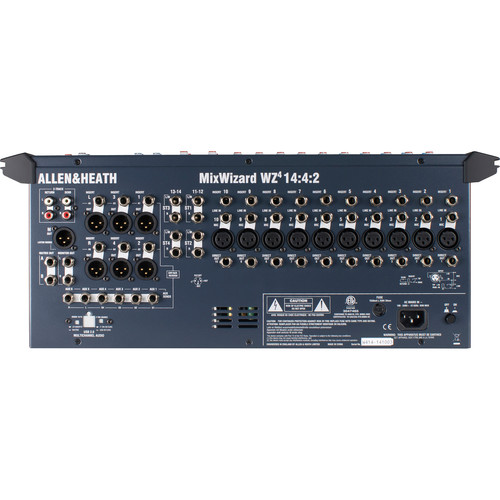

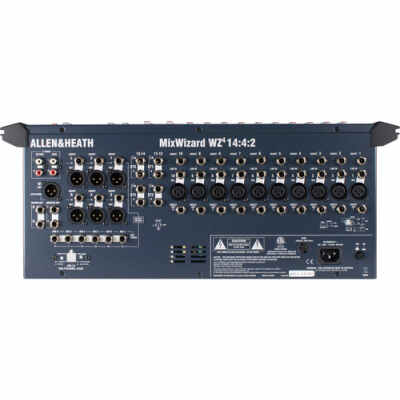

| Analog Inputs | 10 x XLR 3-Pin Balanced Mic Input 10 x 1/4″ TRS Insert 8 x 1/4″ Input (4 Stereo Pairs) 1 x Stereo RCA Coaxial 2-Track Return |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz (T 630 mA L 250 V) |
| AC Power I/O | 1 x IEC |
| Power Consumption | 45 W (Maximum) |
| Rack Mountable | No |
| Rackmount Size | 10 RU |
| Dimensions | 20 x 20.9 x 7.7″ / 507 x 530 x 194 mm (Desk-Mounted) 19 x 4.8 x 17.5″ / 483 x 122 x 444 mm (Rack-Mounted, with Underside Connectors) 19 x 7.6 x 19.6″ / 483 x 193 x 497 mm (Rack-Mounted, with Rear Connectors) |
| Weight | 24 lb / 11 kg |
| Package Weight | 36 lb |
| Box Dimensions (LxWxH) | 25 x 24 x 13.5″ |
