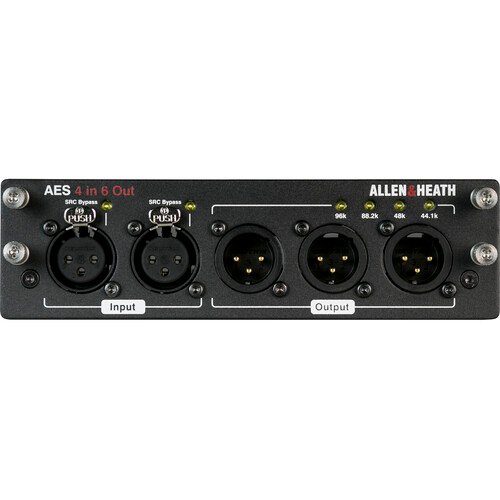

Allen & Heath M-DL-AES4I6O-A AES3 Card 4 Inputs 6 Outputs 32–192kHz SRC

Allen & Heath M-DL-AES4I6O-A is a versatile AES3 I/O card for dLive and Avantis systems, offering 4 stereo inputs and 6 stereo outputs via balanced XLR connectors. Inputs feature sample rate conversion (SRC) from 32kHz to 192kHz, and outputs are selectable at 44.1kHz, 48kHz, 88.2kHz, or 96kHz. The card fits any I/O port and supports clock sync from the first AES input or external wordclock. Ideal for digital patching to speaker processors, amplifiers, or console combining, it integrates seamlessly into Allen & Heath’s digital ecosystem.

FEATURES

• 4 stereo AES3 inputs with SRC (32–192kHz)
• 6 stereo AES3 outputs with selectable sample rates
• Balanced XLR connectors
• Fits any dLive or Avantis I/O port
• Clock sync via AES input or external wordclock
• Patchable via dLive I/O screen
• Ideal for digital PA and console linking

SPECIFICATIONS
