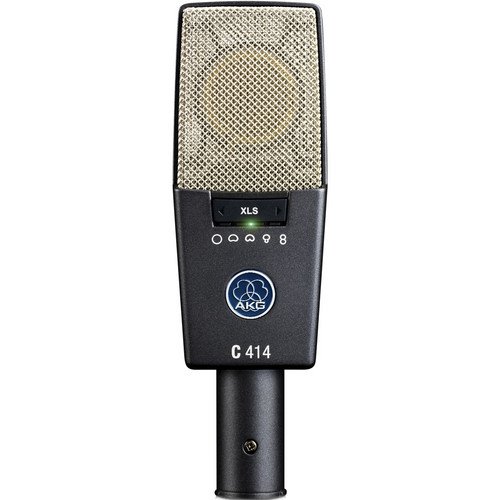

The AKG C414 XLS Large-Diaphragm Multipattern Condenser Microphone is an industry staple that extends the renowned heritage of the C414 B-ULS. Equipped with nine selectable polar patterns, three attenuation levels, and three switchable bass-cut filters, the C414 XLS remains one of the most versatile condenser microphones for recording vocals, drums, and acoustic and amplified instruments in the studio or on stage. This microphone is designed to closely approximate the sonic character of the vintage C414 B-ULS while providing an updated and expanded feature set.
The 1″ edge-terminated, dual-diaphragm transducer combined with the low-noise electronic circuitry provide a wide dynamic range of 134 dB and can handle SPL up to 158 dB, for a detailed, linear, and natural tone. With full immunity to electromagnetic and electrostatic interference as well as high tolerance to humidity, the C414 XLS is well suited to withstand the rigors of demanding studio, stage, and broadcast applications. Special features include a peak-hold LED to alert you if overloading occurs, and a lock mode that prevents unintended changes to the microphone settings. The package includes a vibration-inhibiting shockmount, a pop filter, and a metal carrying case.
FEATURES
- For Voice, Instruments, Drums & Cabs
- Nine Selectable Polar Patterns
- 1″ Capsule Maintains C414 B-ULS Sound
- Completely Immune to EMI and ESI
- Highly Reliable in Humid Conditions
- Switchable Pad at -6, -12, or -18 dB
- Low-Cut Filter at 40, 80, or 160 Hz
- Shockmount Inhibits Vibration Noise

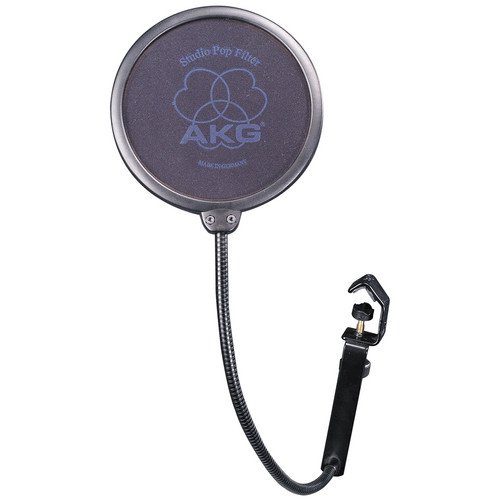

- Windscreen, Pop Filter, and Metal Case
- Operates on 48V Phantom Power
SPECIFICATIONS
Key Specs
| Polar Pattern |
Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
|
| Element Type |
Condenser
|
| Controls |
Polar Pattern, Pad, Low Cut/HPF
|
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum SPL |
140 dB (.5% THD)
158 dB (.5% THD, with Pad)
|
| Analog Output |
1x XLR 3-Pin Male
|
| Power Sources |
Phantom Power
|
Microphone
| Polar Pattern |
Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
|
| Element Type |
Condenser
|
| Sound Field |
Mono
|
| Diaphragm |
1″ / 25.4 mm
|
| Orientation |
Side Address
|
| Controls |
Polar Pattern, Pad, Low Cut/HPF
|
| Pad |
-6 / -12 / -18 dB
|
| Filter & EQ |
Low-Cut Filter: 40 Hz, 12 dB/Octave / 80 Hz, 12 dB/Octave / 120 Hz, 6 dB/Octave
|
| Circuitry |
Solid-State
|
Performance
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum SPL |
140 dB (.5% THD)
158 dB (.5% THD, with Pad)
|
| Sensitivity |
-33 dBV (Open Circuit Voltage)
|
| Dynamic Range |
134 dB (A-Weighted)
|
| Equivalent Noise Level |
6 dB (A-Weighted)
|
Connectivity
| Analog Output |
1x XLR 3-Pin Male
|
Power
| Power Sources |
Phantom Power
|
| Operating Voltage |
44 to 52 V (Phantom Power)
|
Physical
| Color |
Gray
|
| Mounting Thread Size |
5/8″-27 Female (3/8″-16 Female with Included Adapter)
|
| Dimensions |
H: 1.5 x W: 2 x L: 6.3″ / H: 3.8 x W: 5.1 x L: 16 cm
|
| Weight |
10.6 oz / 301 g
|
Packaging Info
| Package Weight |
4.295 lb
|
| Box Dimensions (LxWxH) |
11.4 x 9.1 x 5.4″
|
