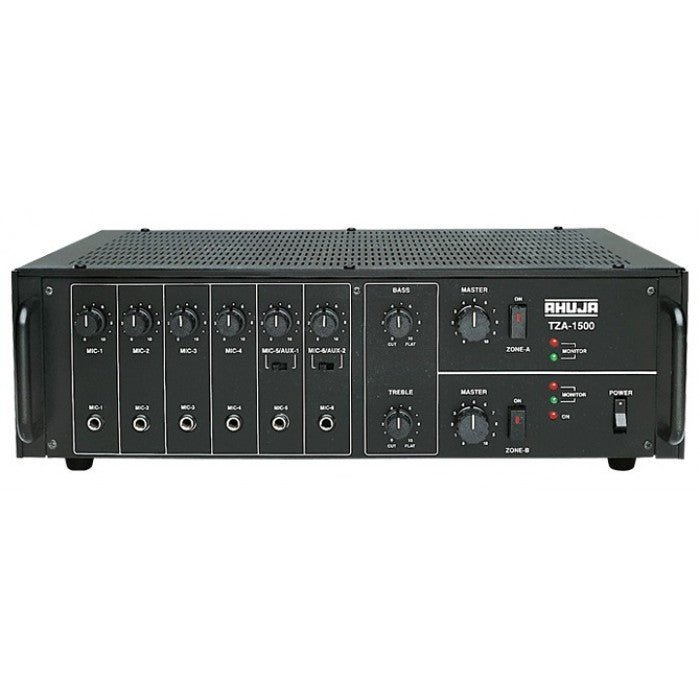

Ahuja TZA-1500 160 Watts 2 Zone PA Mixer Amplifier
Ahuja TZA-1500 160 Watts 2 Zone PA Mixer Amplifier
Share
Compare Wishlist

Ahuja TZA-1500 160 Watts 2 Zone PA Mixer Amplifier

Brand : Ahuja
Sku: TZA1500

AED 1,050.00 inc VAT

Available in stock

The TZA-1500® Watts 2-Zone PA Mixer Amplifier offers 6 mic inputs and 2 aux inputs, with a power output of 80W+80W. It features preamplifier output, bass and treble controls, and a zone On/Off function, along with AC/DC operation. Ideal for smaller installations, the TZA-1200 is perfect for venues like places of worship, where both internal and external speakers need to be connected with adjustable sound levels.


Compare Wishlist
Category: Brand:
Description

TZA-1500® WATTS 2 ZONE PA MIXER AMPLIFIER 6 Mic & 2 Aux Inputs. 80W+80W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.



FEATURES


  • 160 WATTS
  • Easy to Use
  • Black Color
  • AC & 12V DC Operation
  • 6 Mic & 2 Aux Inputs.
  • Preamplifier output for connecting to a Booster Amplifier and for recording the programme.
  • Bass & Treble Controls.
  • TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched
  • On/Off without disturbing the volume settings.
  • 14.2Kg



SPECIFICATIONS




Ahuja model TZA-7000 is rugged, reliable, cost-effective 700 watts Two Zone Amplifier. TZA-7000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors. 6 Mic & 2 Aux Inputs. ‘Stereo’ Music Operation for DJ programmes. Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship. Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording. Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.



FEATURES

  • Ahuja model TZA-7000 is rugged, reliable, cost-effective 700 watts Two Zone Amplifier. TZA-7000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
  • 6 Mic & 2 Aux Inputs.
  • ‘Stereo’ Music Operation for DJ programmes.
  • Facilitates connection and operation of two
  • separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
  • Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
  • Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Bar Graph Signal Display.





SPECIFICATIONS



Brand Ahuja
Model Ahuja Amplifier TZA-1200
Type Amplifier
Amplifier Type AhujaTwo zone PA Amplifier
Number Of Items 1
Color Black
Power Output 100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 6 × Mic 0.6mV/4.7k?, 2 × Aux 100mV/470 k?
Frequency Response 65-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Outputs Preamp 200mV/600?
Speaker Outputs 4?, 8?, 70V & 100V for each zone
Power Supply AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)

Power Output

100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

6 × Mic 0.6mV/4.7k?, 2 × Aux 100mV/470 k?

Frequency Response

65-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: -10dB at 100Hz, Treble: -10dB at 10kHz

Outputs

Preamp 200mV/600?

Speaker Outputs

4?, 8?, 70V & 100V for each zone

Power Supply

AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)

Power Consumption

AC: 300VA DC: 6A

Dimensions

W460 × H155 × D310 mm

Weight

14.2kg
