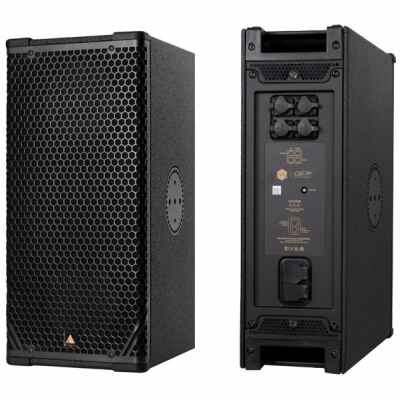

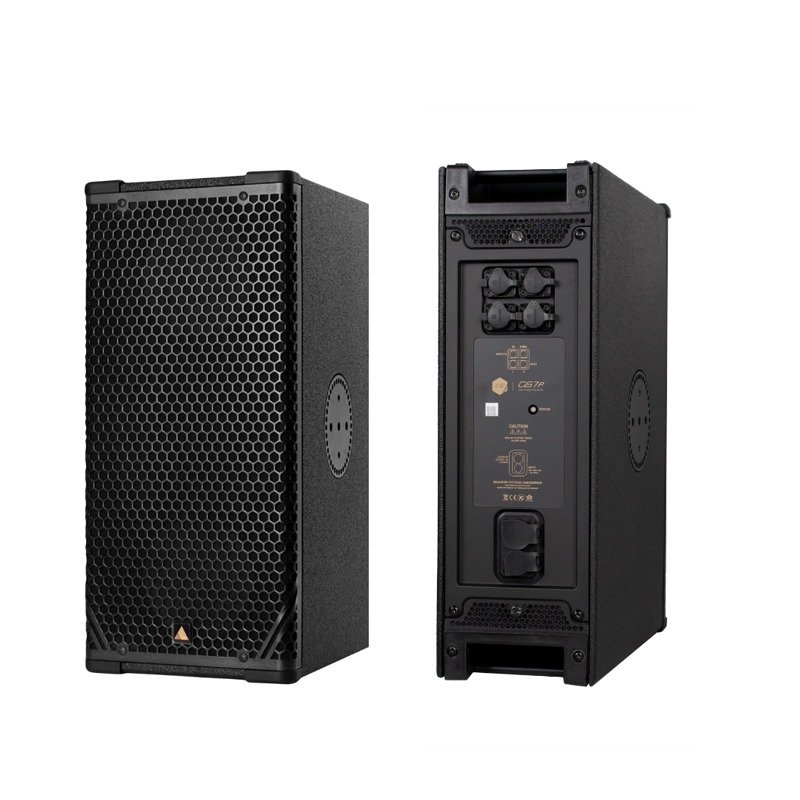

The CS7p is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS7p employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary CS software.
Acoustically, the CS7p contains 2x 7-inch Kevlar® Neodymium transducers and a 3” compression driver, loaded with either a 70° x 40° or a 100° x 50° (H x V) waveguide, each rotatable by 90 degrees. The dipole arrangement of the cabinet results in a stable polar response, meaning the CS7p can be easily paired to increase horizontal coverage and overall output.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. The rigging system offers a wide variety of possible solutions. Please refer to the CS7p User Manual for further information.
FEATURES
High-Performance Drivers: The CS7p features a 7” Kevlar® LF driver and a 1.5” HF compression driver, delivering outstanding clarity, accurate frequency response, and high output levels.
Built-in Class-D Amplification: Integrated with a Class-D amplifier and advanced DSP (Digital Signal Processing), the CS7p ensures superior sound quality, dynamic range, and reliable power efficiency without the need for external amplification.
Advanced DSP for Optimized Sound: The onboard DSP offers precise control over gain, equalization, delay, and protection, ensuring the speaker delivers optimal sound performance in any environment.
Compact and Lightweight Design: The CS7p is designed for both portability and durability. Its robust yet lightweight construction allows for easy transportation and deployment, making it ideal for touring and mobile sound systems.
Milan AVB Networking: With built-in Milan AVB (Audio Video Bridging) support, the CS7p can be seamlessly integrated into modern audio networks, allowing for remote control and audio routing over a network.
Flexible Rigging Options: The speaker offers a versatile rigging system for simple, secure installations in a variety of configurations, whether for permanent installations, front-of-house setups, or stage monitoring.
Versatile Application: Perfect for live sound reinforcement, installed sound systems, and mobile events, the Adamson CS7p provides clear, precise audio in a compact, durable package.
SPECIFICATIONS
- Rigging: Integrated Rigging System | Built-in Polemount Socket
- Connection Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR
- Height Front (mm / in): 527 / 20.75
- Width (mm / in): 249 / 9.8
- Depth (mm / in): 355.6 / 14
- Weight (kg / lbs): 19 / 41.9
- Amplification: 2 channel Class-D, 2400 W total output
- Input Voltage: 100 – 240 V
- Current Draw: 230 V – 0.45 A rms idle, 1.5 A rms long-term, 9 A max peak
- Supported Processing: Onboard / Proprietary
- Amplifier Channels: 2 Channels, Class-D | Channel 1: 2000 W (LF) | Channel 2: 400 W (HF)
- Max. Channel Output Power (All Channels Driven): 2400 W
- Operating Voltage: 100 – 240 V
