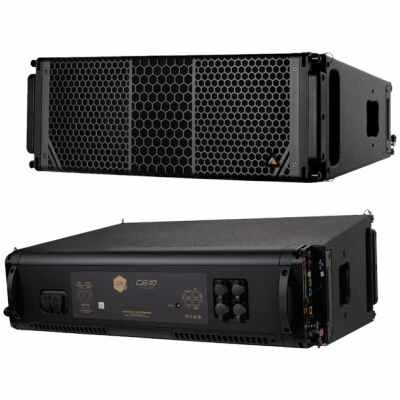

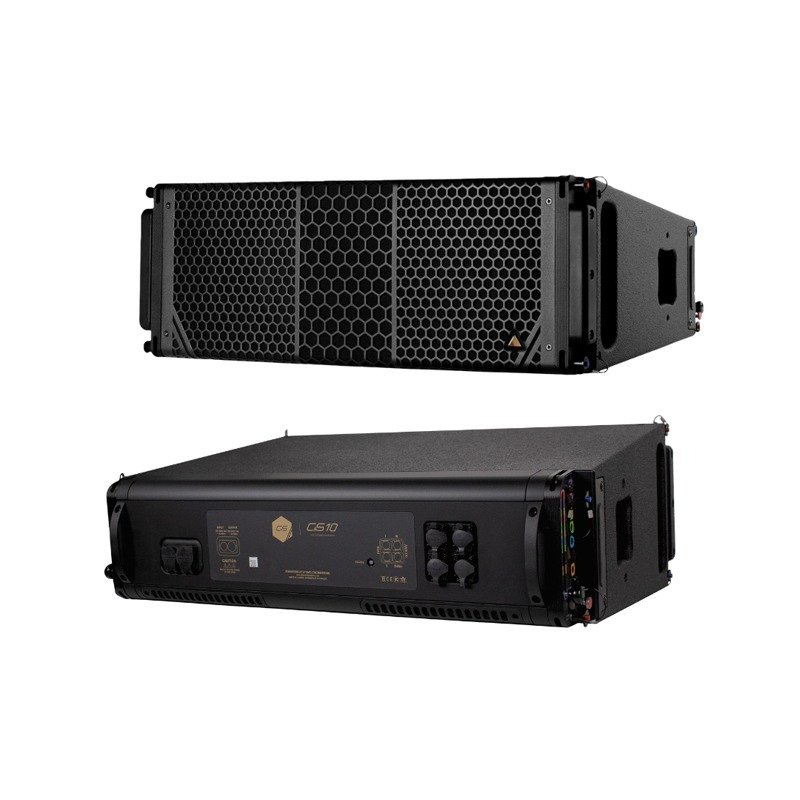

Adamson CS10 Two-Way Full-Range Loudspeaker

The CS10 is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS10 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary CS software.

Acoustically, the CS10 contains 2x 10-inch Kevlar® Neodymium transducers and a 4” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the farfield. Patented Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.

The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection.

FEATURES

• Driver Configuration: Dual 10″ ND10-LM Kevlar® Neodymium low-frequency transducers paired with a 4″ NH4 diaphragm / 1.5″ exit compression driver for high-frequency reproduction.

• Frequency Response: 60 Hz – 18 kHz (±3 dB), ensuring a wide bandwidth suitable for various applications.

• Maximum SPL: Achieves a peak sound pressure level of 141.3 dB, providing high output for demanding environments.

• Dispersion Pattern: Nominal horizontal dispersion of 110° and vertical dispersion of 10°, optimized for even coverage.

• Amplification: Equipped with a two-channel Class-D amplifier delivering a total of 2400 W, ensuring efficient power handling.

• Connectivity:

  • Power Input: powerCON TRUE1 connector.

  • Network: Dual etherCON ports supporting Milan AVB protocol for audio and control data.

  • Analog Audio: Two XLR connectors for line-level signals.

• Rigging System: Features the Slidelock Rigging System, allowing for secure and flexible deployment options.

• Construction: Housed in a durable enclosure made from marine-grade birch plywood with integrated aluminum and steel components, ensuring longevity and resistance to environmental factors.

• Weight: Weighs 31 kg (68.4 lbs), balancing portability with structural integrity.

• Software Integration: Controlled and monitored via Adamson’s proprietary CS software, offering features like gain control, muting, delay, EQ, and grouping.

SPECIFICATIONS

• Frequency Range (+/-3 dB): 60 Hz – 18 kHz
• Nominal Directivity (-6 dB): H x V 110° x 10°
• Maximum Peak SPL**: 141.3 dB
• Components LF: 2x ND10-LM 10” Kevlar® Neodymium Driver
• Components HF: Adamson NH4 4” Diaphragm / 1.5” Exit Compression Driver
• Rigging: Slidelock Rigging System
• Connection: Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR
• Height Front (mm / in): 265 / 10.4
• Height Back (mm / in): 178 / 7
• Width (mm / in): 737 / 29
• Depth (mm / in): 526 / 20.7
• Weight (kg / lbs): 31 / 68.4
• Amplification: 2 channel Class-D, 2400 W total output
• Input Voltage: 100 – 240 V
• Current Draw: 0.45 A rms idle, 1.7 A rms long-term, 10 A max peak
• Supported Processing: Onboard / Proprietary
