Yorkville Sound EF15P Elite Series 15" 1200W Powered Loudspeaker

Compare Wishlist

Yorkville Sound EF15P Elite Series 15″ 1200W Powered Loudspeaker

Name: Yorkville Sound EF15P Elite Series 15" 1200W Powered Loudspeaker
SKU: EF15P
Price: 12691.08 AED
Availability: InStock

Brand :

Sku: EF15P

AED 13,325.63 inc VAT

Available in stock

Features

The Yorkville Sound EF15P Elite Series is a 15-inch powered loudspeaker delivering 1200W RMS (2400W peak) of high-fidelity audio. It features a 15-inch long-excursion neodymium woofer with a 3-inch voice coil and a 3-inch titanium diaphragm compression driver, ensuring deep bass and clear highs. The speaker offers multiband DSP limiting with four preset performance modes and is controllable via a dedicated iOS and Android app. Its ABS-coated Baltic Birch plywood cabinet ensures durability.

EAN: 840402041320

Compare Wishlist

Category: Powered Speakers Brand: Yorkville

Description
Reviews (0)

Description

Audio engineers, mobile DJs, and rental houses in search of a quality powered PA speaker will be impressed with the Yorkville EF15P, a full-range loudspeaker with an integrated mixer and DSP. The unit utilizes a bi-amp module, which delivers 900W (program) to the 15″ neodymium woofer and 300W (program) to the 3″ titanium compression driver; combined, they deliver a frequency response of 43 Hz to 16 kHz with a maximum SPL of 133 dB peak.

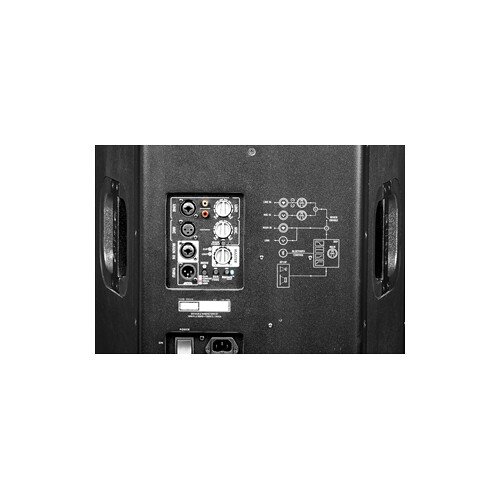

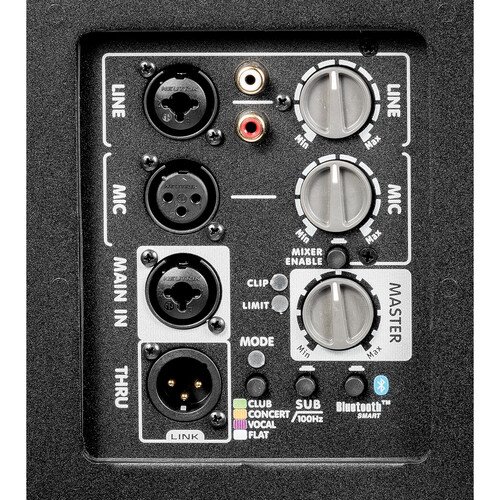

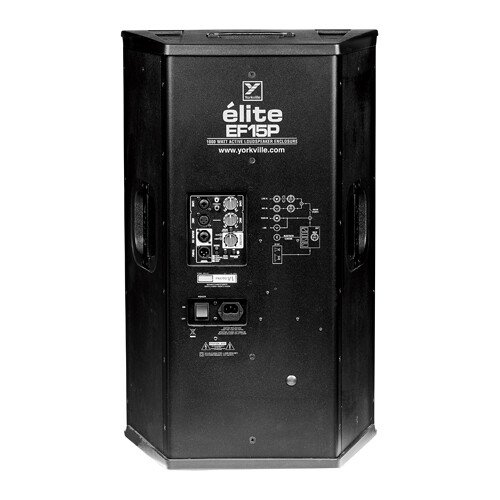

The rear panel offers a variety of inputs and outputs, including a combo XLR-1/4″ line input, stereo RCA line inputs, and an XLR mic input. Additionally, there is a combo XLR-1/4″ main input and an XLR thru output for connecting additional loudspeakers (up to 16). The built-in DSP offers four voice modes including club, concert, vocal, and user, which is accessed on the rear panel. A future Yorkville control app is coming soon for iOS and Android. The Yorkville EF15P includes a power cord.

FEATURES

SPECIFICATIONS

Key Specs

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1200 W 2400 W Peak
HF Driver	3″ / 76.2 mm Titanium
MF Driver	No
LF Driver	1x 15″ / 38.1 cm Woofer
Wireless Connectivity	Bluetooth

Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1200 W 2400 W Peak
Amplifier Power Rating	HF: 300 W LF: 900 W
Amplifier Class	LF: Class-D

Drivers

HF Driver	3″ / 76.2 mm Titanium
HF Voice Coil	3″ / 76.2 mm
MF Driver	No
LF Driver	1x 15″ / 38.1 cm Woofer
LF Voice Coil	3″ / 76.2 mm
Magnet	LF: Neodymium

Performance

Frequency Response	43 Hz to 16 kHz ±3 dB
Maximum SPL	133 dB (Peak) 127 dB (Continuous)
Coverage Angle	60° H x 40° V
Input Sensitivity	+4 dBu
I/O Impedance	Input: 95 Kilohms (Balanced) 90 Kilohms (Unbalanced)

Connectivity

Audio I/O	1x Combo XLR-1/4″ TRS Balanced/Unbalanced Line Input 1x Stereo RCA TS Unbalanced Line Input 1x XLR 3-Pin Balanced Mic Input 1x Combo XLR-1/4″ TRS Balanced/Unbalanced Line Input 1x XLR 3-Pin Male Balanced Link Thru/Output
Network I/O	No
USB I/O	No
Wireless Connectivity	Bluetooth
Mobile App Compatible	No

Signal Processing

Crossover	1.1 kHz
EQ	No
Parametric EQ	No
Semi-Parametric EQ	No
Filters	High-Pass: 100 Hz
Alignment Delay	No
Phase Adjustment	No
Digital Signal Processing	Venue Settings

Power

AC Input Power	120 VAC, 60 Hz (T 3.15 A H 250 V)
AC Power I/O	1x IEC Input
Current Consumption	2 A (Typical) 3.2 A (Max)

Physical

Mounting	2 x Fly Point (Top) 2 x Fly Point (Bottom) 2 x Fly Point (Each Side) 2 x Bracket Point (Rear) 1 x 1.38″ / 3.5 cm Pole Socket

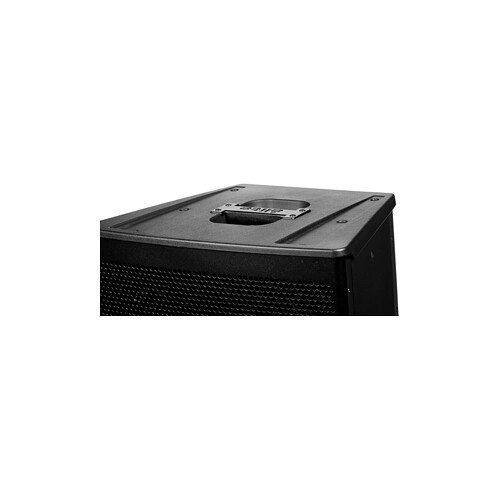

Handles	1x Each Side 1x Top
Construction Material	ABS, Plywood
Dimensions	18.5 to 12 x 14 x 29.9″ / 47 to 30.5 x 35.5 x 76 cm
Weight	64 lb / 29 kg
