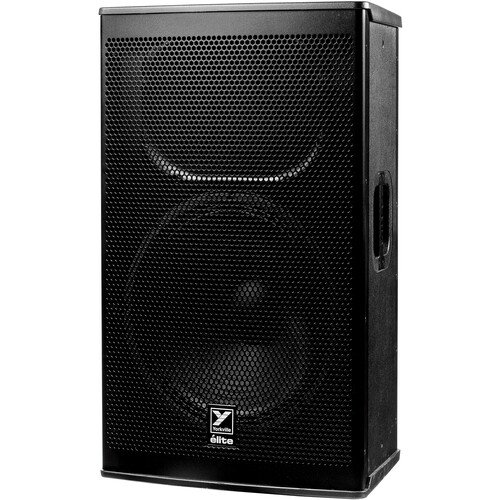

The EF15 is a 15-inch 2-way passive loudspeaker that brings the sound, performance, and reliability of the Elite series to installations and venues that already have power amplifiers.
Made with premium components, the EF15 is rated for 1400 watts of peak power (700 watts program) at 8 ohms, and the rear panel has 1/4″ and Speakon™ inputs.
The cabinet offers durable birch construction, and the total weight is less than 65 pounds so the EF15 is easy to transport and stack.
The EF15 is the largest and loudest passive speaker in the Elite range. Need something smaller? 10-inch (EF10) and 12-inch (EF12) versions are also available.
FEATURES
- 1400 W Peak Power (700 W Program)
- 15” Woofer with 3” Voice Coil
- 3” Compression Driver
- ABS-Coated Birch Plywood Construction
- Made In Canada
SPECIFICATIONS
| System Type | Unpowered Loudspeaker |
| Power Rating | 1400 W Peak (700 W Program) |
| Biampable | No |
| Nominal Impedance (Ohms) | 8Ω |
| Sensitivity (dB AT 1Watt/1m) | 97 dB |
| Max SPL | 128 dB Peak (125.5 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 55 Hz – 18 kHz |
| Crossover Frequency | 1900 Hz |
| HF Driver(s) | 3″ Voice Coil (1″ Titanium Diaphragm) |
| HF Horn | ABS Plastic Custom Waveguide |
| HF Dispersion (°H x °V) | 60° x 40° |
| HF Protection | 3x SK3 Protection Bulbs |
| LF Driver(s) | 15″ (3″ Voice Coil) |
| Inputs – 1/4 IN Jacks | 2 |
| Inputs – Speakon 4-pin | 2 |
| Bar Handles | 2 (1 Left Side, 1 Right Side) |
| Flypoints | 8 (2 Top, 2 Bottom, 2 Each Side), 2 Pullback |
| Flying Hardware | 1/4 – 20 |
| Pole Mount Adapter (1 3/8 | 1 (Bottom) |
| Enclosure Materials | 15 mm (5/8″) 11-ply Russian Birch |
| Grille | Perforated Metal |
| Covering / Finish | Black Ultrathane Paint |
| Dimensions (DWH) | 14″ x 18.5″ x 30″ (35.5 cm x 47 cm x 76 cm) |
| Weight | 61 lbs / 27.8 kg |
