Description

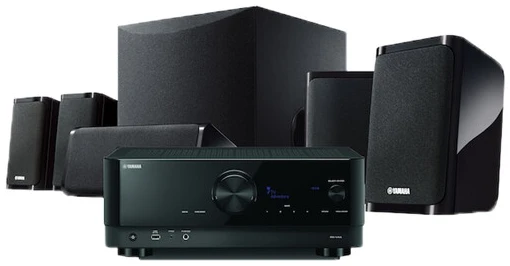

Enjoy network streaming, Bluetooth connectivity, and true surround sound with the Yamaha YHT-5960U 5.1-Channel MusicCast Home Theater System. It provides up to 725W of total output power, including its 100W powered subwoofer, and supports Bluetooth wireless audio streaming from compatible devices. This system supports 4K and HDR pass-through and has four HDMI inputs and one output, which supports eARC for getting multichannel display-based audio, such as from the display’s built-in apps, to the receiver. Wi-Fi and Ethernet connectivity enables wireless audio streaming and multiroom sound with other MusicCast devices.

The YHT-5960U supports various HD audio formats, including Dolby TrueHD and DTS-HD Master Audio. For setup ease, the YPAO sound optimization feature uses an included microphone to analyze your room’s acoustics and adjust the system’s output for enhanced sound quality.



FEATURES

  • Outputs up to 125W per Channel
  • Bluetooth & AirPlay 2 Music Streaming
  • MusicCast Wireless Multiroom Capability
  • 4K, HDR10, HLG, Dolby Vision Support
  • YPAO Sound Optimization
  • 4x HDMI-In / 1x HDMI-Out
  • Digital Coaxial, Optical, USB Inputs
  • Alexa, Google Assistant, Siri Control
  • 8″ 100W Powered Subwoofer
  • Dolby TrueHD & DTS-HD Master Audio



SPECIFICATIONS

Receiver
Rated Output Power
80 W @ 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2 Channels Driven
Maximum Output Power
125 W per Channel
Number of Channels
5.1
Audio Processing
Dolby TrueHD, DTS-HD Master Audio

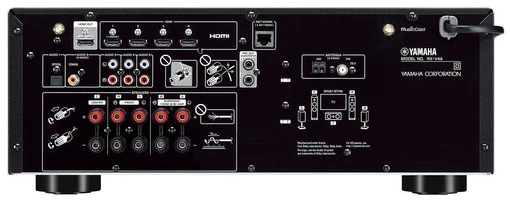

Inputs
4 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
3 x Stereo RCA Pairs
Outputs
1 x HDMI
2 x Subwoofer Pre-Outs
1 x 1/4″ / 6.35 mm Headphone (Front)
Other Connectors
1 x USB Type-A (Front)
1 x Ethernet RJ45 LAN
1 x FM Antenna
1 x AM Antenna
2 x Bluetooth/Wi-Fi Antennas
1 x 1/8″ / 3.5 mm Setup Mic In (Front)
Speaker Connectors
5 x Binding Post Pairs
Wi-Fi
Dual-Band (2.4 / 5 GHz)
Network Protocol Support
AirPlay 2
Bluetooth
Yes (SBC, AAC)
Tuner Type
AM/FM
Compatible File Formats
Not Specified by Manufacturer
Power Requirements
Not Specified by Manufacturer
Standby Power Consumption
0.1 W
Dimensions
17.13 x 6.75 x 14.88″ / 43.5 x 17.15 x 37.78 cm With Antenna Up: 17.13 x 9.63 x 14.88″ / 43.5 x 24.45 x 37.78 cm
Weight
19.4 lb / 8.8 kg



Speakers
Impedance
Not Specified by Manufacturer
Drivers
1x 2.75″ / 69.85 mm Full-Range Cone per Speaker
Nominal Input Power
30 W per Channel
Max Input Power
100 W per Channel
Dimensions
Front, Surround: 4.38 x 6.88 x 4.63″ / 111.13 x 174.63 x 117.48 mm
Center: 10.88 x 4.38 x 4.63″ / 276.23 x 111.13 x 117.48 mm
Weight
Front, Surround: 1.31 lb / 589.7 g per Speaker
Center: 1.61 lb / 730.3 g



Subwoofer
Power Output
100 W
Driver
1x 8″ / 203.2 mm Cone
Speaker Design
Ported
Power Requirements
Not Specified by Manufacturer
Dimensions
11.5 x 11.5 x 13.38 / 292.1 x 292.1 x 339.73 mm
Weight
18.7 lb / 8.48 kg



Packaging Info
Package Weight
55 lb
Box Dimensions (LxWxH)
24.5 x 22 x 18″
