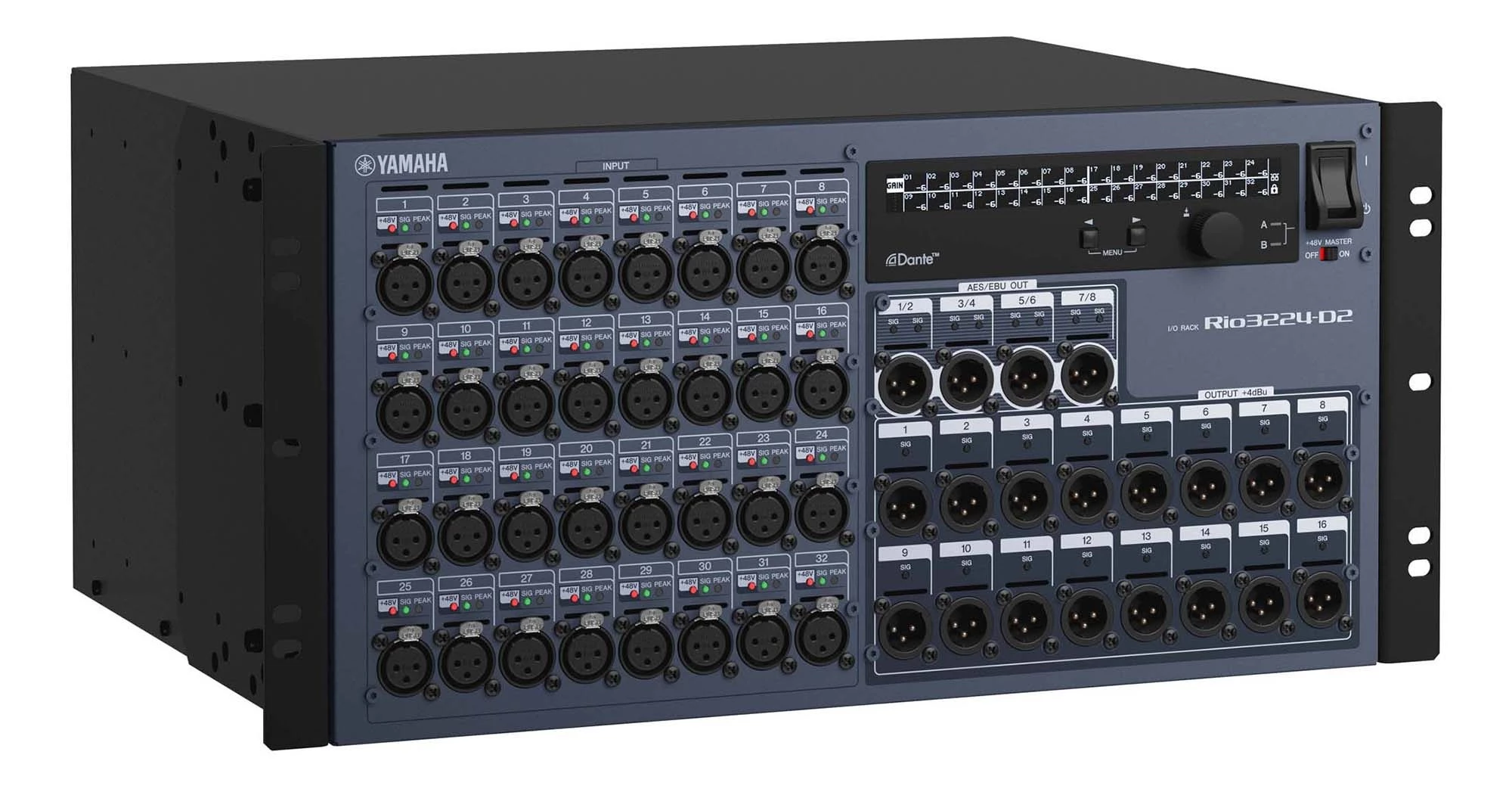

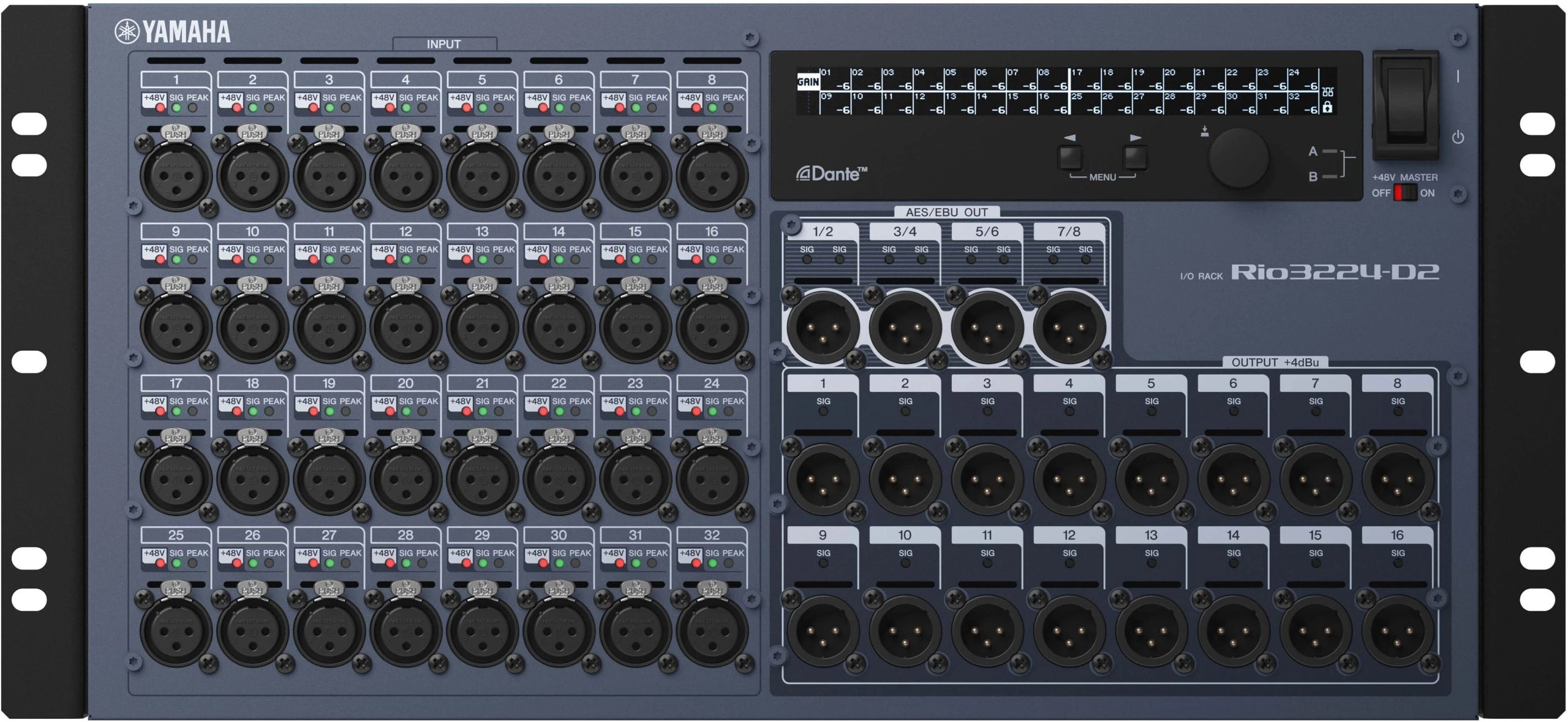

The Yamaha Rio3224-D2 is a professional stagebox with 32 inputs and 24 outputs, designed for high-performance live sound, broadcast, and installation applications. It integrates seamlessly into Dante AV audio networks, allowing digital audio signals to be transmitted over standard Ethernet with ultra-low latency and perfect synchronization. With rugged construction and high-quality preamps, the Rio3224-D2 delivers clean, transparent sound for live instruments, vocals, and line-level signals. Its flexible routing, remote control capabilities, and networked I/O make it ideal for FOH and monitor engineers working in complex multi-zone setups. Compatible with Yamaha digital mixing consoles, this stagebox simplifies large-scale audio distribution while maintaining pristine audio quality.
Features
- 32 Mic/Line inputs and 24 outputs
- Full Dante AV networking support for digital audio over Ethernet
- High-quality Yamaha preamps with low noise and high headroom
- Rugged, roadworthy construction for live and touring use
- Remote controllable via Yamaha consoles and Dante software
- Ultra-low latency and sample-accurate digital synchronization
- Flexible routing for FOH, monitor mixes, and multi-zone installations
- Compatible with Yamaha CL, QL, and TF digital mixing consoles
Specifications
| Type: | Stage Box Remote Interface |
| Compatibility: | Rivage PM7 Mixing System, CL Digital Mixer, QL Digital Mixer |
| Channels: | 32 x 16 (analog), 32 x 24 (including AES/EBU) |
| Inputs – Mic Preamps: | 32 x XLR |
| Phantom Power: | Yes (remote on/off) |
| Outputs – Main: | 16 x XLR (line out) |
| Outputs – Digital: | 4 x XLR (AES/EBU) |
| Data I/O: | 2 x Ethernet (Dante Primary, Secondary) |
| Software: | Dante Controller, R Remote Application |
| Rackmountable: | Yes, 5U |
| Power Source: | Dual Redundant Power Supply, 2 x Standard IEC AC inputs |
| Height: | 8.6″ |
| Depth: | 14.2″ |
| Width: | 18.9″ |
| Weight: | 27.3 lbs. |
| Manufacturer Part Number: | Rio3224-D2 |
