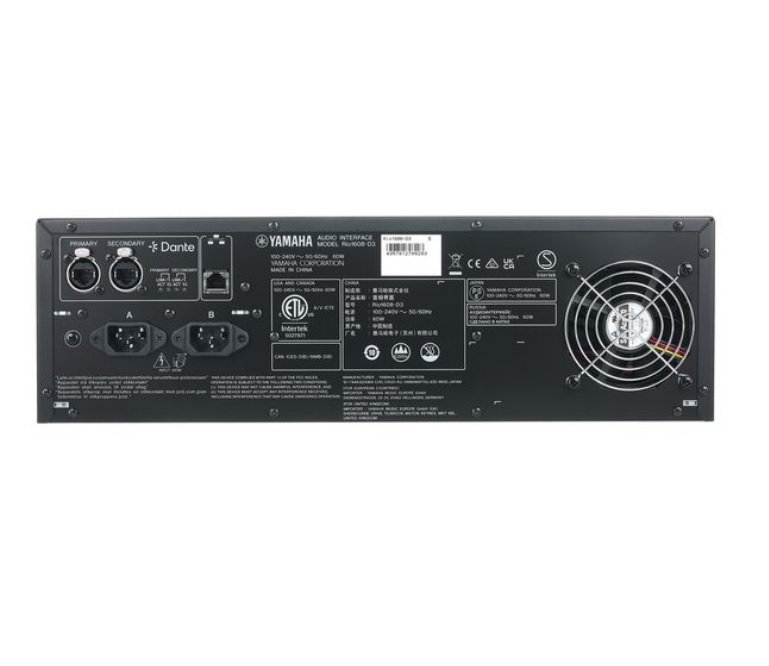

Yamaha Rio1608-D3 Digital Stage Box for Dante Networks

The Yamaha Rio1608-D3 is a high-performance Dante-compatible I/O rack designed for professional live-sound and installation applications. It features 16 analog inputs, 8 analog outputs, and extensive networked audio functionality for flexible system layouts and reliable performance.

Applications of Yamaha Rio1608-D3

• Live concert and event stage I/O racks
• Broadcast and rental company multichannel audio systems
• Fixed installations in houses of worship, theatres, and auditoriums
• Networked audio systems requiring Dante protocol
• Digital console expansion for large-scale AV systems
• Mobile production trucks and touring rigs where Dante routing is needed

Features of Yamaha Rio1608-D3

• 16 high-quality analog inputs and 8 analog outputs for professional routing
• Dante network audio interface with 10 receive and 16 transmit channels. :contentReference[oaicite:1]{index=1}
• Dual (redundant) power supply units for enhanced system reliability. :contentReference[oaicite:2]{index=2}
• Built-in headphone socket for monitoring and local control of channels. :contentReference[oaicite:3]{index=3}
• Output delay and phase functions to optimise signal alignment in complex systems. :contentReference[oaicite:4]{index=4}
• Supports sampling frequencies 44.1/48/88.2/96 kHz for flexible integration. :contentReference[oaicite:5]{index=5}
• Low latency performance (< 1.7 ms from input to output via Dante) for real-time monitoring. :contentReference[oaicite:6]{index=6}
• Compact 3 U rack size (480 × 132 × 370 mm) and lightweight at approx. 9.4 kg. :contentReference[oaicite:7]{index=7}
• Power consumption rated at 60 W, making it efficient for touring or installed use. :contentReference[oaicite:8]{index=8}
• Balanced XLR analog connectors and rugged rack-mount chassis for professional environments. :contentReference[oaicite:9]{index=9}

Specifications of Yamaha Rio1608-D3
