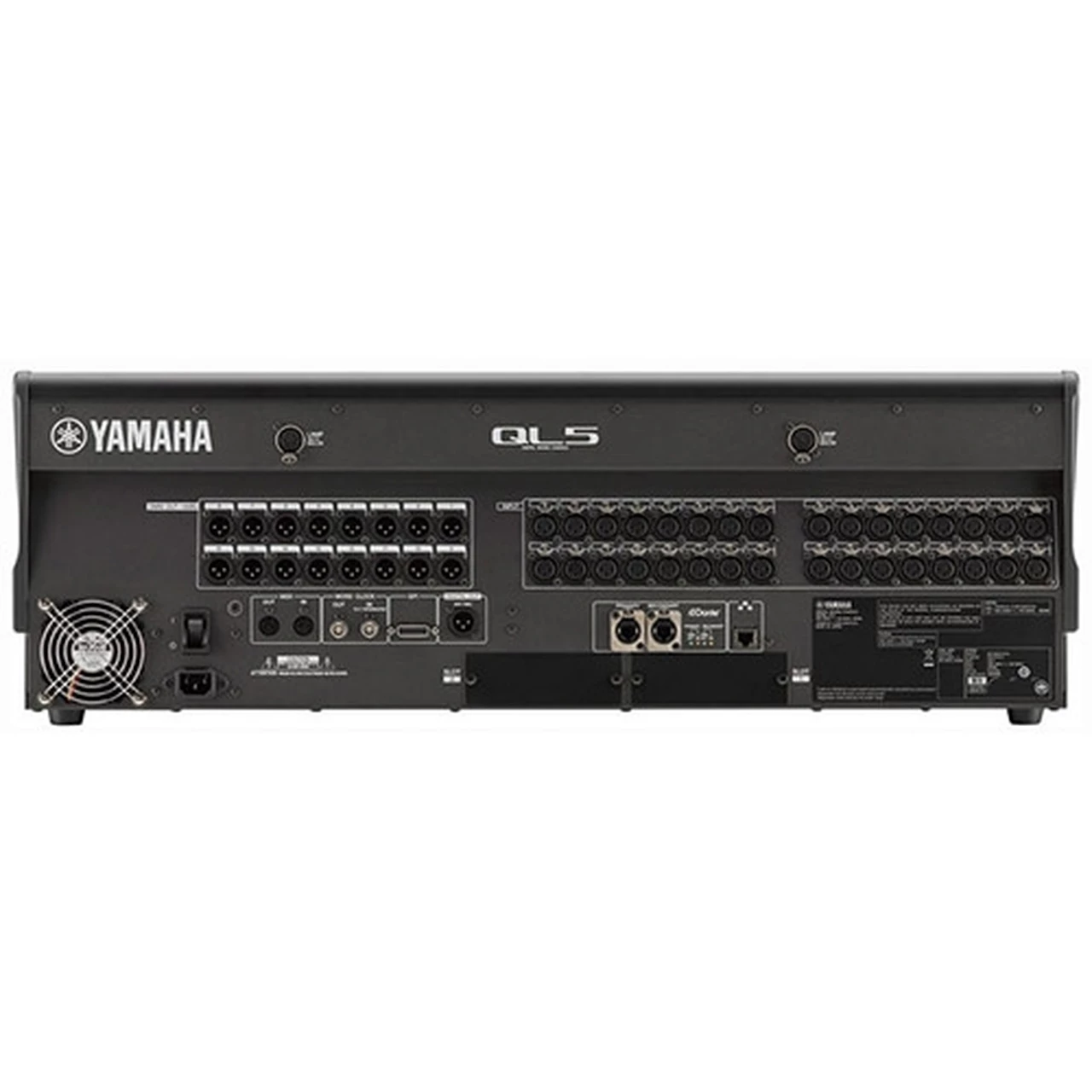

Yamaha QL5 64-channel Digital Mixing Console

The Yamaha QL5 64-channel digital mixer is packed with many of the core features of their acclaimed CL Series, making it your ideal compact all-in-one solution for mixing, processing, and routing audio. Loaded with premium internal processors, including stellar-sounding EQ and dynamics tools developed in cooperation with Rupert Neve Designs, the QL5 will bring out the best sonic character in any source. With built-in automixing functionality, Dante network support, and remote control via your tablet or computer, the Yamaha QL5 is the perfect sound reinforcement solution for small- to medium-scale live sound, corporate speech events, broadcast, and more!

Features:

• Premium internal processors simulate classic studio gear and more
• Rupert Neve-designed EQ and dynamics for studio-quality sound
• Automixing functionality via the Dan Dugan automatic mixer
• Dante network support lets you create complex system designs
• Remote control via tablet or computer lets you go deep into your mix
• Tons of scene memory, customization options, and more

Specification:

• Type:Digital
• Channels:64 mono, 8 stereo mixing channels
• Inputs – Mic Preamps:32 x XLR
• Phantom Power:32 channels
• Outputs – Main:16 x XLR (Omni)
• Inputs – Digital:2 x EtherCon Cat5 (Dante Primary, Secondary)
• Outputs – Digital:1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)
• Busses/Groups:16 x Bus
• Inserts:Yes
• Talkback:Yes
• MIDI I/O:In, Out
• Data I/O:Ethernet
• Headphones:1 x 1/4″
• I/O Expansion Slots:2 x Slots (MY expansion)
• Word Clock:In, Out
• Faders:34 x 100mm Throw
• EQ Bands:4-band Parametric
• Effects:Yes
• Height:10.7″
• Depth:22.2″
• Width:32.6″
• Weight:48.1 lbs.
• Manufacturer Part Number:QL5
