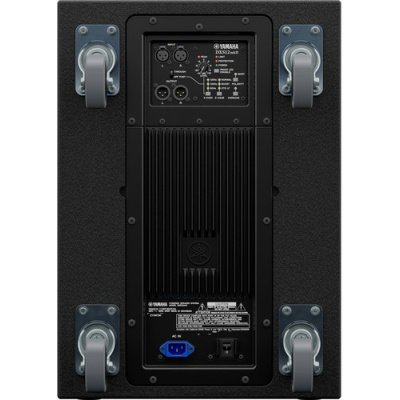

The black DXS12mkII Powered Subwoofer from Yamaha features a high-efficiency Class-D amplifier and a woofer housed in a sturdy plywood band-pass type enclosure. It can deliver up to 1020W of distortion-free power with natural clarity. It can be used for reliable bottom-end management for bass performance in sound reinforcement applications.
The powered subwoofer features Yamaha’s state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with a vast lineup of full-range speakers. Built with two 3-pin XLR inputs and two thru 3-pin XLR connectors, this DXS12mkII Powered Subwoofer delivers a tight, impressive bass with outstanding depth and high-power output.
Features
The DXS high-performance Class-D amplifier produces up to 1020W of power.
The DXS12mkII features a 2.5″ voice coil magnet.
All DXS series enclosures incorporate a band-pass design that reduces unwanted vibration and noise that could otherwise sabotage your sound.
Enclosure exteriors are covered with a durable polyurea coating for high-damage resistance. They protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
Just as impressive as the high-output power is the compact portability and lightweight construction that houses the DXS series subwoofer.
For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
Specifications
PA Speaker
| Configuration | Active Subwoofer |
| Total Power Capacity | 1020 W Peak 800 W RMS |
Drivers
| LF Driver | 1 x 12″ / 30 cm Woofer |
| LF Voice Coil | 2.5″ / 6.35 cm |
Performance
| Frequency Range | 42 Hz to 150 Hz |
| Maximum SPL | 134 dB |
Connectivity
| Audio I/O | 2 x XLR 3-Pin Female Input 2 x XLR 3-Pin Male Thru |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 100 W |
Physical
| Mounting | 1 x 1.4″ / 35 mm Pole Socket 1 x M20 |
| Cooling | Convection |
| Construction Material | Plywood |
| Dimensions | 15.8 x 22.3 x 22.4″ / 400 x 567 x 570 mm |
| Weight | 66.1 lb / 30 kg |
Packaging Info
| Package Weight | 74.6 lb |
| Box Dimensions (LxWxH) | 28 x 26 x 19″ |
