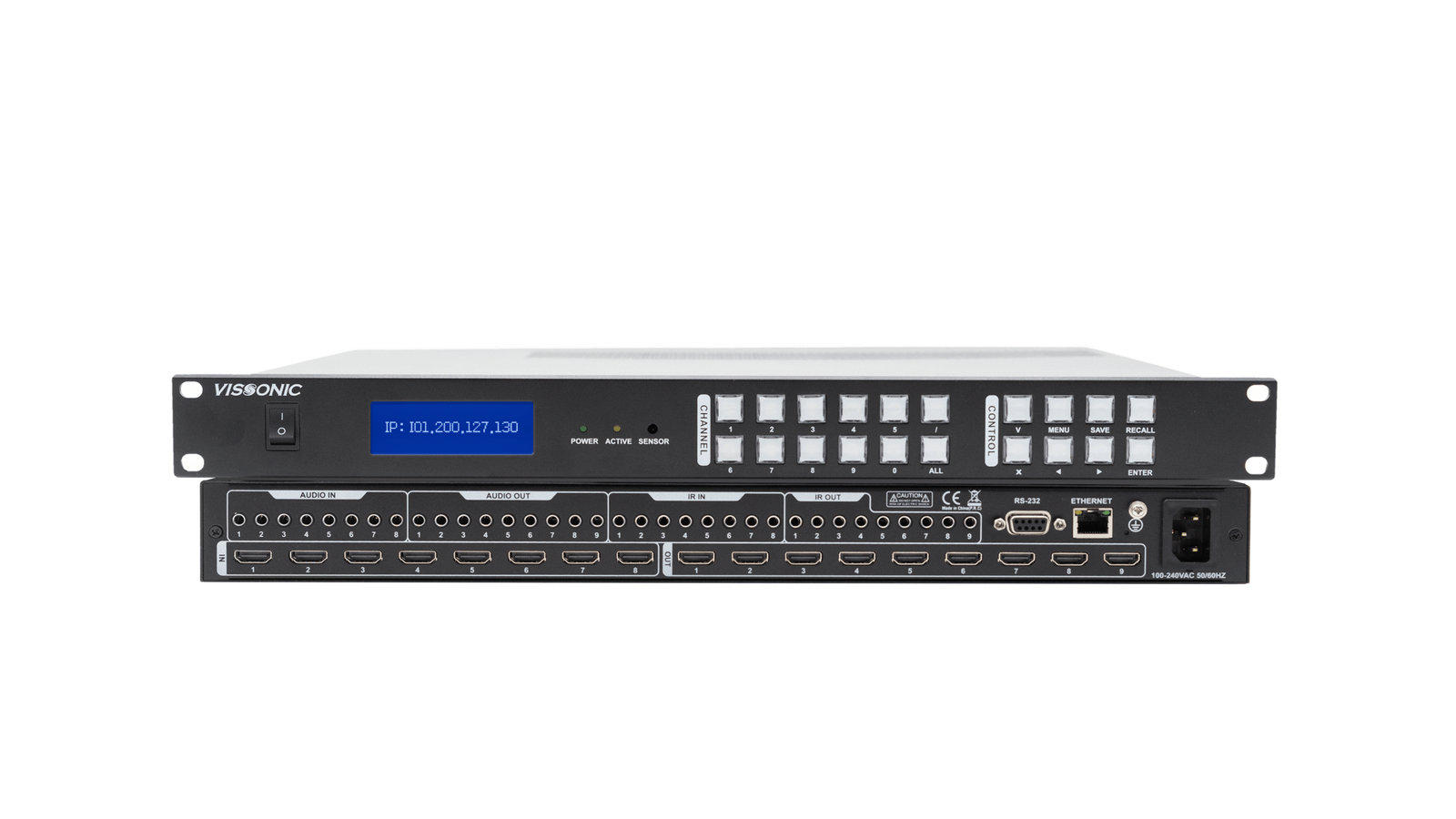

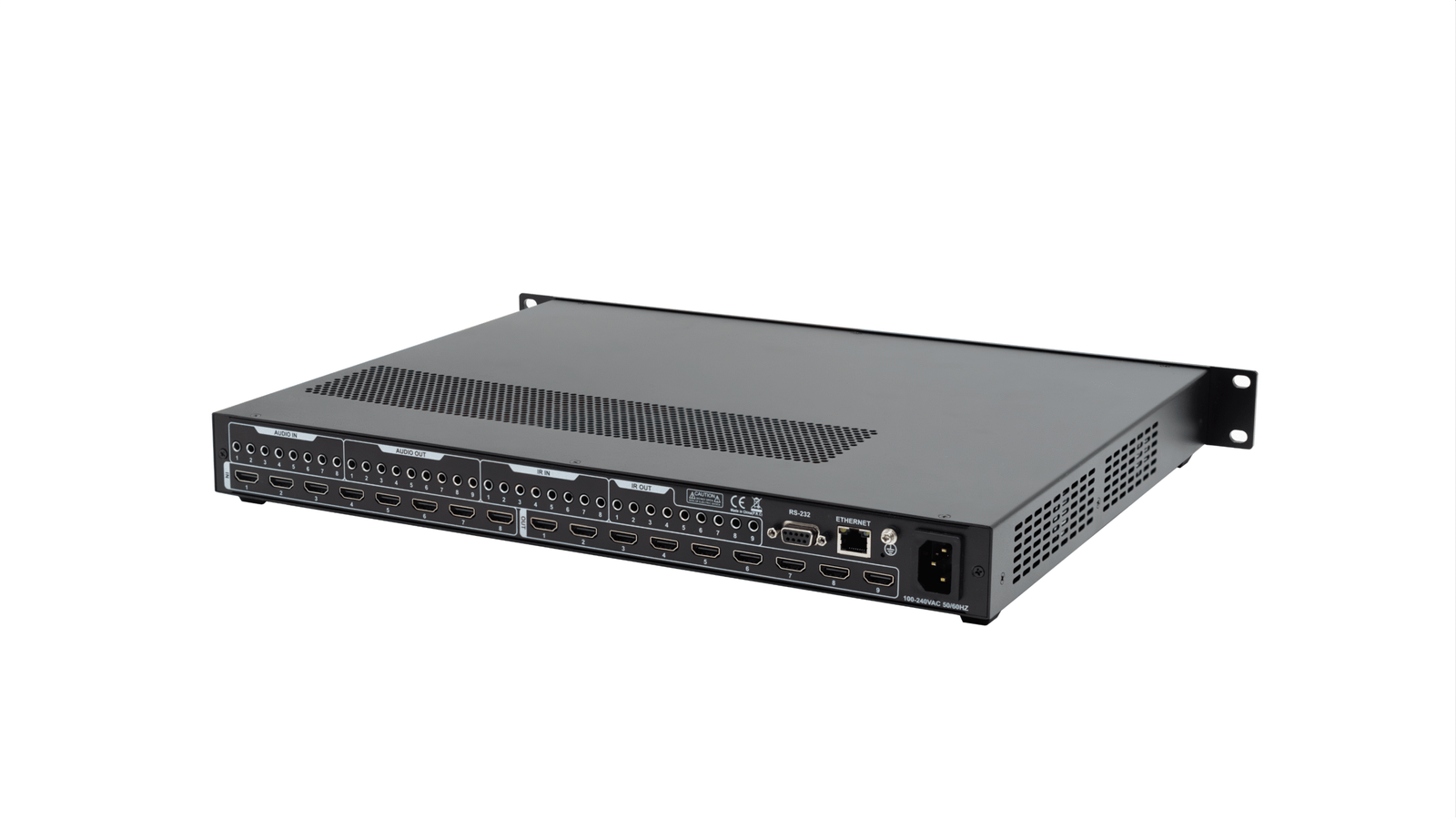

Vissonic VIS-UHD0809-M-VW 4K Seamless Multi-Function Matrix and Splicing Processor with Multiview

The Vissonic VIS-UHD0809-M-VW is a professional-grade 4K UHD seamless matrix switcher and splicing processor designed for demanding audiovisual environments such as control rooms, studios, conference venues, and digital signage installations. It provides real-time 4K@60 Hz 4:4:4 HDMI switching across eight inputs and nine outputs, with the ninth output configurable for creative video wall or multiview monitoring layouts, including PIP, POP and custom grid arrangements. Built on a pure FPGA hardware platform, the unit delivers ultra-high data transmission rates with minimal latency and includes advanced features like EDID management, logo overlay, input cropping, and built-in test patterns to support system integration and diagnostics. In addition to flexible video routing, it offers independent audio and infrared switching, multi-protocol control (front panel, RS-232, TCP/IP, and Web GUI), and multi-user management with presets and role-based access. Designed for rack-mount installations, the processor also supports synchronized screen stitching, subtitle overlay, and comprehensive monitoring with adjustable HDCP settings to suit a wide range of professional AV applications.

Features

• 8 HDMI inputs and 9 HDMI outputs with real-time seamless switching.
• 8 IR and 8 analog audio inputs, along with 9 IR and 9 analog audio outputs.
• The 9th output port seamlessly switches between video wall and multi-screen modes.
• The system supports PIP, quad split, 3×3 grid, and POP configurations. POP offers customizable modes like 1 large 7 small, 1 large 5 small, and 1 large 3 small screens, ideal for input monitoring or multi-participant conferences.
• Input and output support up to 4K@60, 4:4:4, compatible with HDMI 2.0 and HDCP 2.2.
• Intelligent analysis that automatically analyzes the EDID of display devices to output the best resolution.
• EDID management: select from built-in files, read from output devices, update EDID.
• Supports input image clipping, allowing part of the input image to be displayed as a signal.
• Supports adding logos to input images.
• Built-in signal generator with 11 professional test images on input and output channels.
• Outputs can be configured for seamless matrix output or single-layer stitching output.
• Supports synchronized stitching for LED or LCD large screens, with a maximum of 3×3 or 2×4 configurations.
• Supports scrolling subtitles on stitched large screens.
• Independent switching for audio and infrared.
• Supports graphical software control.
• Input volume controls adjustable channels and mute button.
• Multiple control methods: front panel, RS232, TCP/IP software, web control.
• Supports multiple flexible stitching configurations for any port to meet various application needs.
• Supports DHCP, with the ability to enable or disable via software or front panel.
• Various output modes available, including full screen and proportional scaling.
• Supports one-button freeze/unfreeze for output images.
• Intelligent management that shows real-time input signal status and output connection status on software.
• Adjustable HDCP version for inputs.
• One-button output screen on/off.
• Supports multi-user management with customizable permissions and port control.
• Supports preset management with one-button save/recall.
• Supports seam settings to compensate for gaps during screen stitching
