The VIS-DVD-T is a CLEACON series wired delegate unit built for advanced digital conferencing. Featuring a sleek design, touch control, and digital audio transmission, it combines intelligent voting functions and real-time interpretation support to enhance delegate participation.
FEATURES
- Stylish, low profile design with touchable interface
- StandardCAT5eand RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance.
- Theconnection cable of units are either hiding underneath or from the rear of the unit, makes it convenient for different request of installation
- Fivekeys voting function
- Interpretation function with 64 channels selector which can display the language and channel number (Insert the earphone and the channel selector is active)
- OLEDscreen,providing excellent brightness, contrast, wide viewing angle but low power consumption
- Internal high-fidelity loudspeaker
- Head-set interface in both sides with volume adjust
- Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference

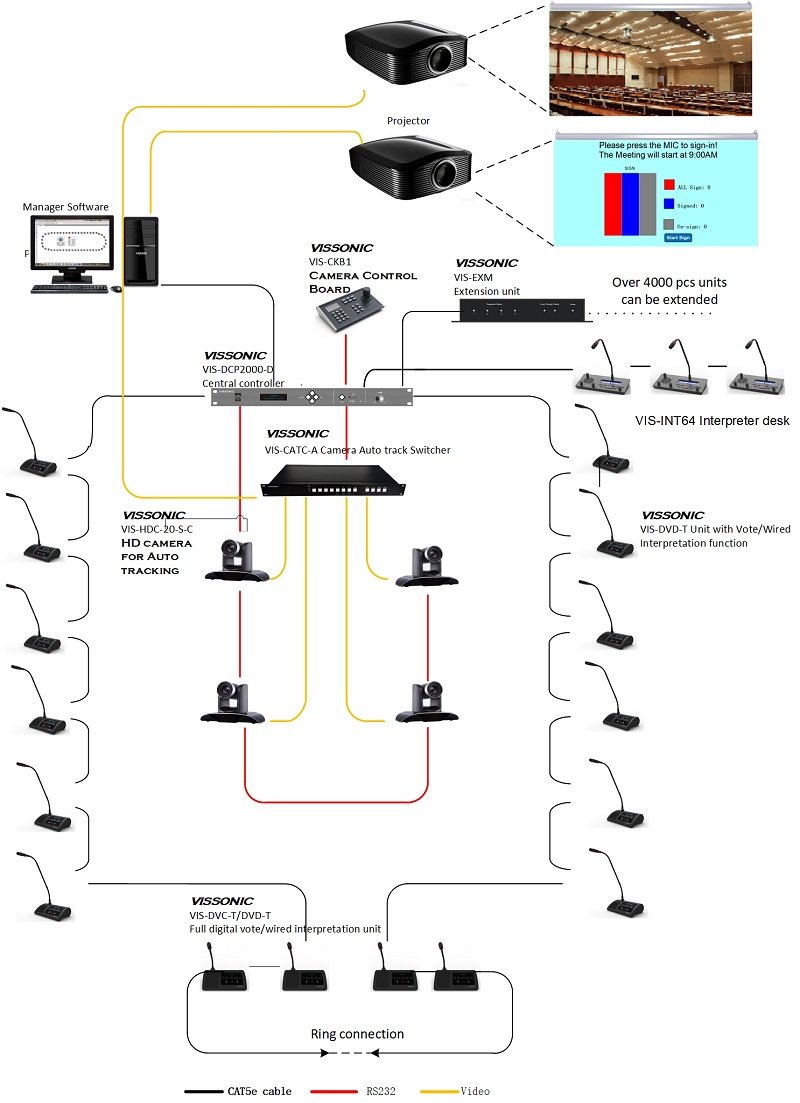

- TheuniqueAUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices. “Hand-in-Hand-Loop-Network” connection makes the system always working perfectly and more reliable.
- Theunitshowing time/date on the screen. Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically.
- Allunits can be configured as Chairman or Delegate unit through software settings based on model VIS-DVC-T
SPECIFICATIONS
Control & Indicators
- Microphone with two-color LED ring, red indicates speaking status, green indicates request to speak.
- 128×32 OLED display with volume bar, clock, time span of microphone activating, interpretation channels and language, MIC ON/OFF and other information.
- 5 voting keys with indicators, while no launching voting, no.2 and no.3 button is also work as channel selecting buttons, no.4 and no.5 work as volume buttons.
- MIC ON/OFF buttons with indicators
- Chairman unit with priority button and consent button for the delegates
Interfaces
- Pluggable gooseneck microphone base
- 2x 3.5mm stereo headphone jack
- 1x 3.5mm stereo input jack
- 2x RJ45 connectors
Technical Parameters
- Button: Touchable interface
- Sound Pickup: heart type capacitance
- Display: OLED display 128 × 32
- Sensitivity:-46 dBV / Pa
- Maximum power consumption: 2.0W
- Directivity: 0 ° / 180 °> 20 dB (1 kHz)
- Headphone load: 16Ω
- headphone volume: 10mW
- Headphone jack: 3.5mm stereo
- Input impedance: 2kΩ
- SNR: 70dB
- Frequency response: 20 ~ 20000Hz
- Connection: CAT5 / CAT6 cable + snap
- Equivalent noise: 20dBA (SPL)
- Main material: ABS
- The maximum sound pressure: 125dB (THD <3%)
- Weight: 1.1kg (with microphone)
- Dimension: 195L × 120W× 60H mm (without microphone)
- Operating temperature: 0 ? to + 55 ?
- Color: Black
