Description

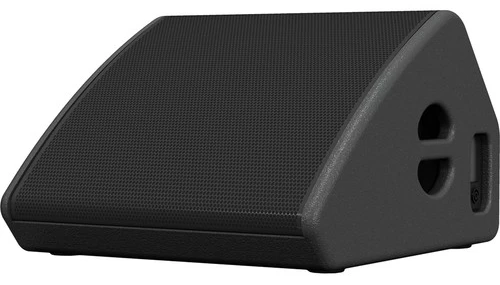

The Turbosound Flashline TFM152M Coaxial 2-Way 15″ Stage Monitor is a compact 1600W switchable passive/bi-amped floor monitor consisting of a coaxial carbon fiber-loaded 15″ neodymium low-frequency and titanium dome 1.4″ neodymium high-frequency combination driver in a reflex-loaded enclosure designed for concert touring. The coaxial drive unit is matched with an exponential horn flare for improved acoustic loading and controlled coverage. Both HF and LF coils utilize the same neodymium magnet assembly, which gives better efficiency and reduced weight. This allows the creation of a minimal-footprint monitor wedge, which combined with a 35° projection angle and 60 x 40° (H x V) dispersion pattern, is suitable as a vocal monitor on smaller stages where space is limited, while its low profile maximizes audience sightlines.

The 5/8″ (15mm) birch-plywood cabinet is equipped with two flush recessed handles, and Neutrik speakON NL4 connectors are provided at each side for tidy interconnects. The cabinet is finished in semi-matte black paint finish and includes a curved-profile perforated-steel grille backed with reticulated foam, and supported by a steel reinforcing strip positioned across the front of the drive unit.



Features

  • 2-Way stage monitor for touring applications
  • 400W continuous, 1600W peak power
  • Carbon fiber-loaded 15″ neodymium motor low-frequency driver
  • Titanium dome 1.4″ neodymium motor compression driver
  • Low-profile design to maximize audience sightlines
  • Low-distortion waveguide provides 60 x 40° (H x V) dispersion
  • Switchable passive/bi-amp operation for flexibility of use
  • 5/8″ (15mm) birch-plywood enclosure with durable semi-matte black paint finish
  • Rugged powder-coated perforated-steel mesh grille
  • Neutrik speakON NL4 connectors for reliable operation
  • Designed and engineered in England



Specifications

ConfigurationPassive 2-Way
Enclosure TypeSealed Floor Monitor
Total Power Capacity1400 W Peak
System Impedance8 Ohms



Drivers
HF Driver1 x 1.4″ / 35.6 mm Titanium Dome Compression Driver
MF DriverNone
LF Driver1 x 15″ / 381 mm Woofer
MagnetLF:
Neodymium
HF:
Neodymium



Performance
Coverage Angle60° H x 40° V
Directivity12.6 (Directivity Index)
18.3 (Directivity/Q Factor)
Speaker Sensitivity96 dB



Connectivity
Audio I/O2 x speakON NL4 Input



Signal Processing
Phase AdjustmentYes



Physical
HandlesYes
Construction MaterialPlywood, Polypropylene
Dimensionsto 11.917.8 x 19.8″ / to 452 x 504 mm
Weight35 lb / 15.9 kg



Packaging Info
Package Weight51.25 lb
Box Dimensions (LxWxH)26.5 x 25 x 17.5″





Additional information
Brand

Turbosound

Color

Black
