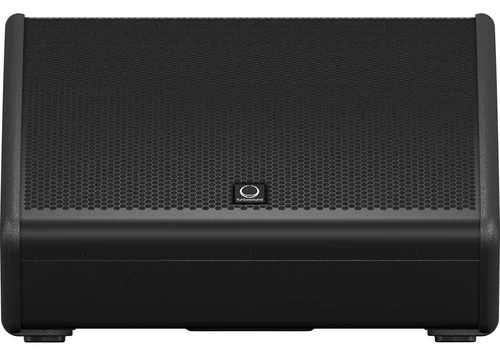

Turbosound TFM152M-AN 15" Coaxial 2500W Active 2-Way Stage Monitor with Klark Teknik DSP and ULTRANET Networking

Turbosound TFM152M-AN 15″ Coaxial 2500W Active 2-Way Stage Monitor with Klark Teknik DSP and ULTRANET Networking

Name: Turbosound TFM152M-AN 15" Coaxial 2500W Active 2-Way Stage Monitor with Klark Teknik DSP and ULTRANET Networking
Brand: Turbosound
SKU: TFM152M-AN
Price: 7062.00 AED
Availability: InStock

Brand :

Sku: TFM152M-AN

AED 7,062.00 Exc VAT

Available in stock

Features

Amplify your music performances with the black 15" Coaxial 2500W Active 2-Way Stage Monitor from Turbosound. It is designed to deliver 2500W power featuring Klark Teknik Class-D technology. It features a 15" low-frequency driver and a titanium dome 1.4" neodymium high-frequency compression driver, which is mounted on a 60° horizontal by 40° vertical dispersion low-distortion waveguide. Designed to work individually without a controller, it is suitable for a wide range of portable speech and music sound reinforcement applications such as wedge monitoring, side-fill, and delay line at a wide range of venues including nightclubs, banquet facilities, houses of worship, and more.

EAN: 748252161840

Compare Wishlist

Category: Studio Monitors Brand: Turbosound

Description

Amplify your music performances with the black 15″ Coaxial 2500W Active 2-Way Stage Monitor from Turbosound. It is designed to deliver 2500W power featuring Klark Teknik Class-D technology. It features a 15″ low-frequency driver and a titanium dome 1.4″ neodymium high-frequency compression driver, which is mounted on a 60° horizontal by 40° vertical dispersion low-distortion waveguide.

Designed to work individually without a controller, it is suitable for a wide range of portable speech and music sound reinforcement applications such as wedge monitoring, side-fill, and delay line at a wide range of venues including nightclubs, banquet facilities, houses of worship, and more.

Features

For Live Stage, Theater, DJ Setups
Klark Teknik DSP / ULTRANET Network
2500W Class-D Power Amplifier
15″ Low-Frequency Driver
1.4″ High-Frequency Compression Driver
User Interface with LCD Display
Low-Profile Design
5/8″ Plywood Cabinet
Durable Handle for Easy Carrying
Pole Mount Socket

Specifications

PA Speaker

Configuration	Active 2-Way
Enclosure Type	Loudspeaker
Total Power Capacity	HF / LF: 2500 W
Amplifier Power Rating	1 x 2500 W
Amplifier Class	Class-D

Drivers

HF Driver	1 x 1.4″ / 35.56 mm Titanium Dome Compression Driver
LF Driver	1 x 15″ / 381 mm Carbon Fiber Woofer
Magnet	LF: Neodymium

Performance

Frequency Response	60 Hz to 18 kHz ±3 dB 50 Hz to 20 kHz -10 dB
Maximum SPL	132 dB (Peak)
Coverage Angle	60° H x 40° V
Input Sensitivity	-2 dBu
Max Input Level	+12.5 dBu
I/O Impedance	XLR Line Input: 40 Kilohms (Balanced)
Protections	Short Circuit, Thermal

Connectivity

Audio I/O	1 x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Line Input (Lockable) 1 x XLR 3-Pin Male Balanced Link Thru/Output (Lockable)
Network I/O	2 x RJ45 (Proprietary) In/Out
USB	1 x USB Type-B

Signal Processing

Crossover	High-Pass: 24 dB/OctaveActive
EQ	Yes
Parametric EQ	Yes
Filters	High-Pass
Dynamic Processing	HF Limiter, LF Limiter, Peak Limiter
Alignment Delay	300 ms
Digital Signal Processing	24-Bit DSP: User Settings
Maximum Sampling Rate	48 kHz / 24-Bit

Power

AC Input Power	120 VAC, 60 Hz
AC Power Connector	2 x powerCON Input (Locking)
Power Consumption	180 W (Max, 1/8 Power)

Physical

Mounting	1.38″ / 35 mm Pole Socket (Side)
Handles	1
Construction Material	Perforated Metal Grille, Plywood, Polypropylene
Dimensions	13.8 x 20.9 x 22.2″ / 350.5 x 530.9 x 563.9 mm
Weight	44.5 lb / 20.2 kg
