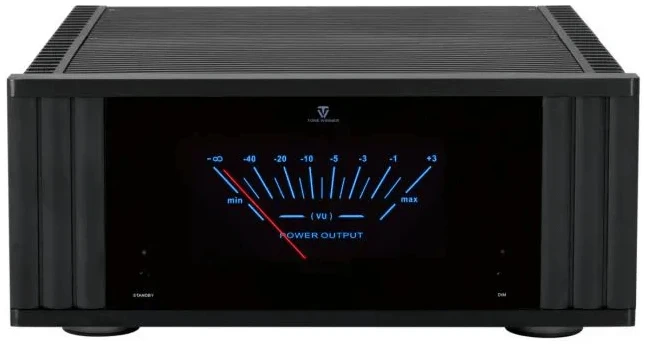

ToneWinner AD-7300PA+ 7 Channels AV Power Amplifier

Brand :

Sku: AD-7300PA+

AED 10,158.94 inc VAT

Available in stock

Features

The AD-7300PA+ is a 7-channel Hi-Fi amplifier from Tonewinner, delivering 310W per channel at 8 ohms and up to 515W at 4 ohms. Featuring high-power transistors, advanced Hi-Fi circuit design, and multiple protection systems, it offers exceptional sound clarity, power, and durability, making it ideal for audiophiles and high-end home theater setups.

Description

The AD-7300PA+ is the pinnacle of high-power and precision, meticulously designed to be a cornerstone in high-end home theater systems. As a 7-channel Hi-Fi amplifier, it complements the AD-7300HD processor, creating a harmonious audio experience. The amplifier is powered by a high-power switch-mode power supply, ensuring efficient handling of the demands in dynamic home theater environments, providing reliable and sustained performance throughout.For safety, the AD-7300PA+ incorporates five-fold protection against overvoltage, overheating, overload, overcurrent, and short circuits, ensuring long-lasting performance and safe operation. Each channel operates on its own independent circuit board, which reduces interference and promotes precise sound reproduction across the full frequency range of 20Hz to 50kHz, maintaining high-fidelity audio. The amplifier delivers an impressive 310W RMS per channel at 8 ohms, which can scale up to 515W RMS at 4 ohms, driven by ON Semiconductor’s high-power transistors arranged in a three-stage Darlington circuit. This setup ensures a powerful push-pull output, ideal for driving high-end speakers in large dynamic ranges needed for an immersive audio experience.The AD-7300PA+ features a sleek design with an all-black aluminum casing, an acrylic front panel, and a lake-blue pointer voltmeter, enhancing the aesthetic appeal of any audio setup. It incorporates separate signal inputs, both balanced and unbalanced, for flexibility in integration. The amplifier also offers features such as manual or trigger-based power on/standby, a DIM control button, and a trigger port for ease of use. The high-fidelity circuit design ensures uniform sound quality, and temperature compensation and DC servo circuits stabilize sound output. Perfect for audiophiles and demanding audio setups, the AD-7300PA+ promises years of superior sound performance.

Features:

High Power Switch-Mode Power Supply: Efficiently handles dynamic home theater demands.
Independent Circuit Boards: Each channel has its own board for minimized interference and precise sound.
Five-Fold Protection: Overvoltage, overheating, overload, overcurrent, and short-circuit protection for safe operation.
310W RMS per Channel at 8 ohms: Powerful output, scaling to 515W at 4 ohms for high-end speaker compatibility.
Audiophile-Grade Output: High-power transistors and a three-stage Darlington circuit for powerful push-pull output.
Hi-Fi Circuit Design: Independent 7-channel modular design with uniform circuit processes and layout for optimal sound.
Balanced and Unbalanced Inputs: Flexibility for integration with various audio sources.
Lake-Blue Pointer Voltmeter: Aesthetic indicator on the front panel for visual appeal and functionality.
DIM Control Button: Front panel control for easy adjustments.
Manual or Trigger Power On/Standby: Convenient power options for the amplifier.
Trigger Port on Rear Panel: Allows remote activation.

Specifications:

Specification	Details
Power Output (at 8 ohms)	310W per channel
Power Output (at 4 ohms)	515W per channel
Total Harmonic Distortion (THD)	≤ 0.1%
Frequency Response	20 Hz to 50 kHz
Protection Systems	Overvoltage, overheating, overload, overcurrent, short circuit protection
Cooling System	Exposed radiators for heat dissipation
Power Supply	High power switch-mode power supply
Inputs	7-way unbalanced inputs, 7-way balanced inputs
Transistors	3 pairs of ON Semiconductor NJW0302G/NJWO281G high-power transistors per channel
Chassis Material	All-black aluminum with acrylic front panel
Ammeter	Lake-blue pointer voltmeter for visual appeal
Dimensions	Compact design with optimized size for home theater setups
Power On/Standby	Manual or trigger-based options
Trigger Port	Rear panel trigger port for remote activation
Cooling Radiators	Larger exposed radiators for left and right channels
Weight	Approx. 18-20 kg
Application	Home theaters, display rooms, clubs, and high-end audio environments
