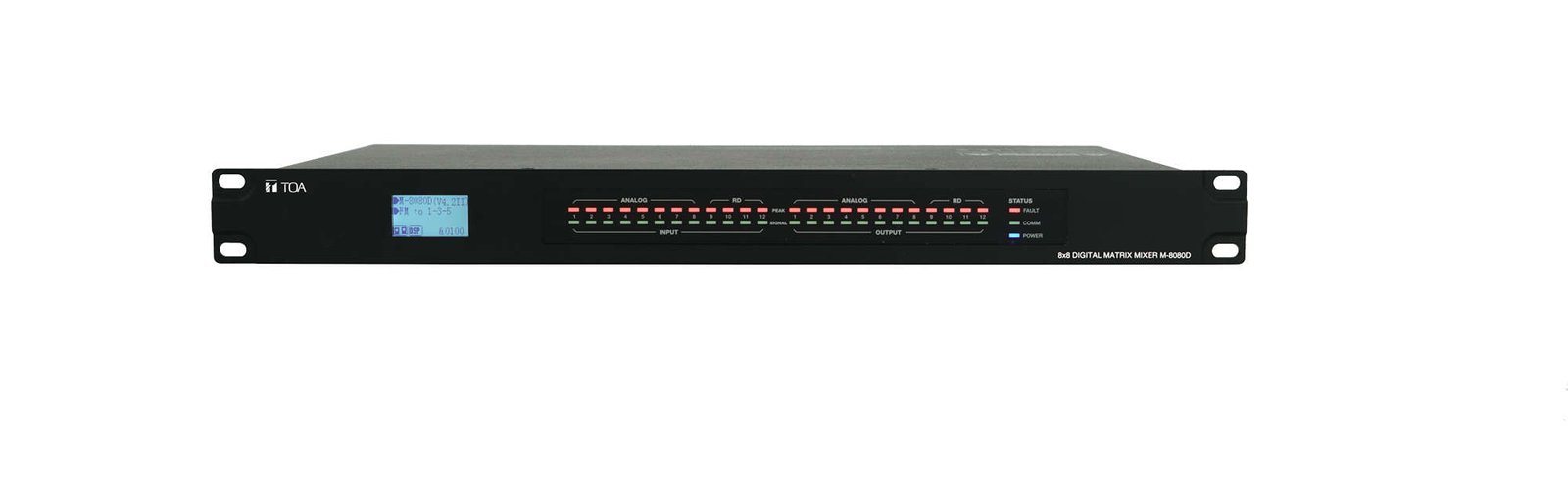

TOA M-8080D Matrix Mixer Professional 8-In/8-Out Digital Audio Mixer

Brand : Toa
Sku: M-8080D

AED 8,054.55 inc VAT

Available in stock

The TOA M-8080D is a professional 8-in/8-out digital matrix mixer designed for complex audio routing and signal processing. Ideal for commercial installations, it offers high-quality DSP, remote control capability, and flexible configuration for paging, conferencing, and multi-zone sound systems.

Compare Wishlist
Category: Brand:
Description

The M-8080D 8×8 Digital Matrix Mixer is dedicated music, discussion, paging and zone management solutions for Commercial Audio applications.

With DSP functions: EQ, Compressor, Ducker, Priority Setting, etc. M-8080D Line-up includes remote control panels, remote input, and output panel, paging microphone. Easy to use and implement.

It can be mounted in an EIA Standard equipment rack (1 unit size)

FEATURES

  • 8 analog IN and 8 analog OUT
  • 4 digital IN and 4 digital OUT
  • DSP functionalities EQ, Compressor, Delay and more
  • Easy and quick operation
  • Intuitive GUI via PC
  • Extended remote controller options

APPLICATIONS

  • Restaurants
  • Sport facilities
  • Auditoriums
  • Boardrooms
  • Bars
  • Conference rooms
  • Health and fitness clubs
  • Houses of worship
  • Office buildings
  • Museums
  • Theme parks

SPECIFICATIONS

Power source220 – 240 V AC, 50 / 60 Hz
Power / current consumption40W
Frequency response20 Hz – 20 kHz
ControlsCONTROL INPUT: GPI 1 – 2: no-voltage contact input, open voltage: 1.5V DC, short-circuit current: Under 3 mA, RJ45 Connector x 2

CONTROL OUTPUT: Relay 1 – 2: withstand voltage: 24V DC, control current: Under 500 mA, removable terminal block (4 pins)

RD port: RD 9 – 12: transmits and receives AES3 digital audio plus control data. Connect remote devices such as M-822IO, M-800RC, M-802RC, M-800RCT and M-800RM, maximum cable length is 100 meters, RJ45 Connector x 2

Operating temperature0°C to + 40°C (32°F to 104°F)
FinishAluminium, Steel plate, black
Dimensions483 x 44.2 x 259 mm (W x H x D)
Weight4.58 kg
S/N ratio105 dB(A) ( (A weighted)
IndicatorLC-Display:
Displays device information: name, fimrware version, ID, communication statusLEDs:
Input: Analog Signal (Green)x8, Analog Peak(Red)x8, RD signal(Green)x4, RD Peak(Red)x4
Output: Analog Signal (Green)x8, Analog Peak(Red)x8, RD signal(Green)x4, RD Peak(Red)x4
Status: Fault(Red)x1, Comm(Green)x1, Power(Blue)x1
Crosstalk79 dB
InputsAUDIO INPUT: 1-8: -48 to 0dBv, 6.8 kΩ, electronic balanced, removable terminal block (3 pins x8)



OutputsAUDIO OUTPUT: 1-8: 0dBv, 1.8kΩ, Maximum output 20 dBu(7.75V), electronic balanced, removable terminal block (3 pins x 8)
LAN100 MBit, DHCP
Signal processingEqualizer / Filter
Gate
Compressor
Ducker
Feedback Compression (FBC)
Auto Mixer
Delay
Sampling frequency48 kHz, 24 bit
Equalizer / Filter5 band EQ (LPF and HPF) for IN and 8 band EQ (LPF and HPF) for OUT
Parametic Equalizer: 19.7 – 20160 HZ, range: ±18 dB, Q: 0.4 – 128, Type: peak/low/high
CompressorThreshold: -30 to +20 dB in 1 dB steps
Attack: 10 -150 ms
Release: 10 ms – 1 s
Delay0 – 1361.2916 ms
Matrix8 x 8
12 x 12 (Expandable via optional equipment)
PC softwareIncluded
