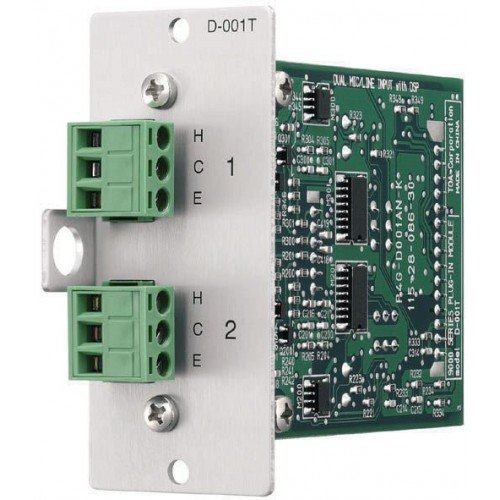

The D-001T from TOA is a dual mic/line input module for use with series 9000 amplifiers. It features two removable terminal block connectors, which accept balanced mic or line inputs. On-board digital signal processing includes 10-band parametric EQ, bass/treble, loudness, high and low pass filters, and a compressor.
The D-001T has an adjustable sensitivity from -60 to -10 dBV and offers 24 VDC phantom power. This unit is required for VOX functioning and input level metering in series 9000 amplifiers. Up to four D-001T modules may be installed in an amplifier chassis.
FEATURES
- Compatible with series 9000 amplifiers from TOA
- Two balanced mic/line inputs
- DSP includes EQ, bass/treble, loudness, high and low pass filters, and a compressor
- Adjustable sensitivity
- 24 VDC phantom power
SPECIFICATIONS
| Inputs | |
| Input Impedance | |
| Input Sensitivity | |
| Power Source | |
| Current Consumption | |
| Frequency Response | |
| THD + N | |
| S/N Ratio (Audio) | |
| Crosstalk | |
| Common Mode Rejection Ratio | |
| A/D Converter | |
| Sampling Frequency | |
| Tone Control | |
| Parametric Equalizer | |
| High-Pass Filter | |
| Low-Pass Filter | |
| Compressor | |
| Phantom Power | |
| Operating Temperature | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
