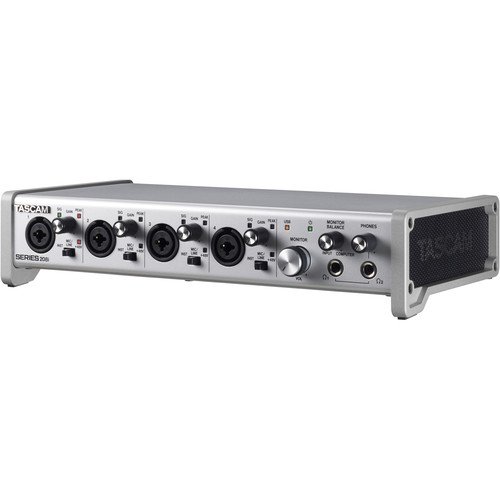

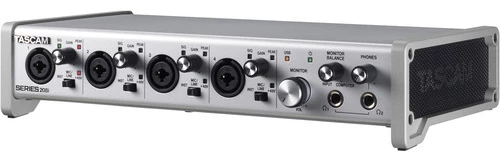

The TASCAM SERIES 208i is a professional-quality, mid-grade audio/MIDI interface featuring internal and bundled effects processing, internal mixing, and external software control, well suited for studio, home, and live recording. The 208i sports a four classic TASCAM Ultra-HDDA (High Definition Discrete Amplifier) microphone preamps, which ensure a natural, transparent tone with low noise. The recording and playback engine deliver high-definition 24-bit / 192 kHz resolution and solid stability.

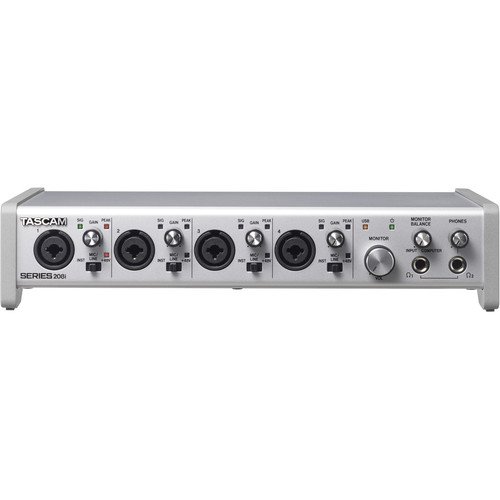

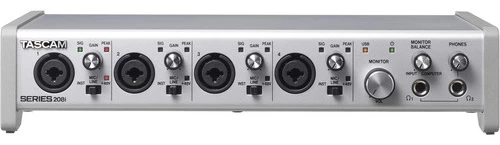

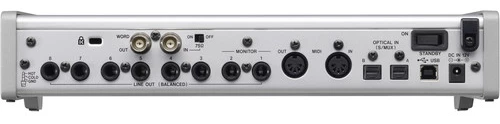

The front panel offers four combo XLR-1/4″ inputs which are switchable between instrument (Hi-Z) and mic/line selections, as well as independent +48V phantom power, as well as dual headphone outputs. The rear panel offers eight balanced, 1/4″ line outputs, which enable multiple monitor mixes or up to 7.1 surround monitoring, a set of 5-pin DIN MIDI inputs and outputs, and a USB 2.0 Type-B computer connector. If two inputs aren’t enough, the SERIES 208i offers two S/MUX optical (ADAT) inputs, which provide an additional 16 channels of expansion. Additionally, the BNC word clock in and out ensures correct synchronization with other digital audio devices.
Features
- 20 Inputs and 8 Outputs
- Four Low-Noise HDDA Mic Preamplifers
- 2 x Optical S/MUX, 16-Channel Expansion
- Eight 1/4″ Outputs + Dual Headphones Out
- High Speed USB 2.0 Computer Interface
- 24-bit / 192 kHz
- Flexible DSP Input/Output Mixer with FX
- BNC Word Clock I/O with Termination
- Standard MIDI I/O Connectors
- Steinberg and IK Multimedia Software
Specifications
| Form Factor | Tabletop |
| Display | None |
| Channels of I/O | Analog / Digital: 20 Input / 8 Output at 192 kHz |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 4 Preamps |
| Built-In Microphone | None |
| Input Level Adjustment | 4 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | 58 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Analog Audio I/O | 4 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 8 x 1/4″ TRS Balanced Line Output 2 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | 48 V (Selectable on Individual Inputs) |
| Digital Audio I/O | 2 x TOSLINK Optical ADAT Input (S/MUX Support) |
| Host Connection / USB | 1 x USB Type-B (USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
| Frequency Response | 20 Hz to 20 kHz +0/-0.4 dB (at 44.1 kHz, JEITA) 20 Hz to 40 kHz +0/-0.8 dB (at 88.2 kHz, JEITA) |
| Maximum Input Level | Mic Inputs: +10 dBV Hi-Z Inputs: +10 dBV Line Inputs: +24 dBu |
| Maximum Output Level | Line/Monitor Outputs: +20 dBu |
| Headphone Output Power | 45 mW per Channel into 32 Ohms |
| Impedance | Mic Inputs: 1.5 Kilohms Hi-Z Inputs: ≥ 1 Megohm Line Inputs: 10 Kilohms Line Outputs: 230 Ohms |
| SNR | Mic/Line Inputs: 109 dB Line Outputs: 110 dB |
| Crosstalk | > 100 dB |
| EIN | < -129 dB |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Sync Sources | Word Clock |
| Clocking | Internal: <nbsp;> |
| Memory Card Slot | None |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.12 or Later iOS 10 or Later *As of June, 2022: check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Included Plug-Ins | None |
| Processor Requirement | 2 GHz |
| RAM Requirements | 2 GB |
| Mobile Device Compatibility | iPhone |
| Required Hardware | USB 2.0 Port, USB 3.0 / 3.1 Gen 1 Port |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC (Included) |
| Power Consumption | 14 W |
| Dimensions | 11.65 x 6.3 x 2.56″ / 295.91 x 160 x 65.02 mm |
| Weight | 3.5 lb / 1.6 kg |
| Package Weight | 5.05 lb |
| Box Dimensions (LxWxH) | 16.2 x 8.5 x 4″ |
