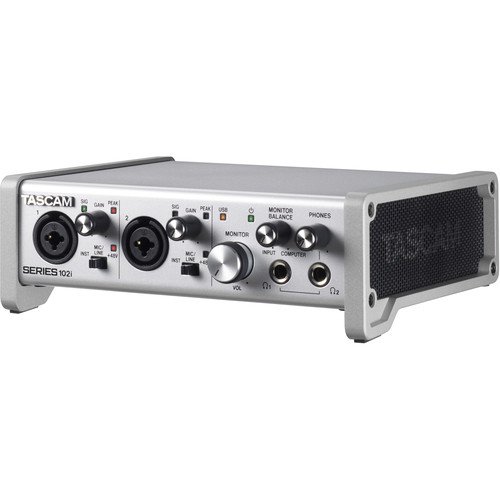

The TASCAM SERIES 102i is a professional-quality mid-grade audio/MIDI interface featuring internal and bundled effects processing, internal mixing, external software control, and more, for studio, home, and live recording. The 102i sports a pair of classic TASCAM Ultra-HDDA (High Definition Discrete Amplifier) microphone preamps, which ensure a natural, transparent tone, with low noise. The recording and playback engine deliver high-definition 24-bit / 192 kHz resolution and solid stability.
Features
- 10 Inputs and 2 Outputs
- 2 Low-Noise Ultra-HDDA Mic Preamplifiers
- Optical S/MUX for 8-Channel Expansion
- Two 1/4″ Outputs + Dual Headphones Out
- High Speed USB 2.0 Computer Interface
- 24-bit / 192 kHz
- Reverb, Comp, 4-Band EQ, Phase Invert
- Flexible DSP Input/Output Mixer
- Standard MIDI I/O Connectors
- Steinberg and IK Multimedia Software
Specifications
| Form Factor | Tabletop |
| Display | None |
| Channels of I/O | Analog / Digital: 10 Input / 2 Output at 192 kHz |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
Signal Processing
| Pad | None |
| High-Pass Filter | None |
| Solo/Mute | None |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4″ TRS Balanced Line Output 2 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | 48 V (Selectable on Individual Inputs) |
| Digital Audio I/O | 1 x TOSLINK Optical ADAT Input (S/MUX Support) |
| Host Connection / USB | 1 x USB Type-B (USB 2.0) |
| Sync I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Sync Sources | None |
| Clocking | Internal: <nbsp;> |
| Included Software | None |
| Included Plug-Ins | None |
| Power Requirements | USB Bus Power |
Packaging Info
| Package Weight | 3.84 lb |
| Box Dimensions (LxWxH) | 11.9 x 8.7 x 4″ |
