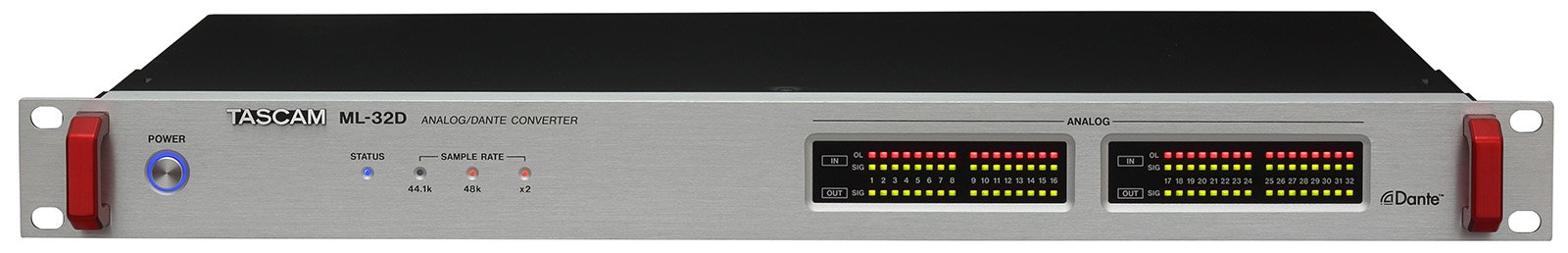

The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.
The Tascam ML-32D has four D-Sub inputs and four D-Sub outputs, that can be used to connect several devices that utilize D-Sub connectors such as microphone preamplifiers, console mixers, audio interfaces, amplifiers, and other audio devices.
Furthermore, the Dante protocol provides uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network and supports up to 1024 channels of 32-bit / 192 kHz audio over a Cat 5/6 Ethernet system.
Features
- Dante-focused interface for connection of external audio in or out of a Dante audio network.
- 32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
- Dual redundant Ethernet jacks which support both primary and secondary connections.
- Up to 24-bit / 96 kHz quality.
- LED display for signal level and overload per input/output channel.
- Reference level dip switches for selectable dBu level metering.
- Firmware updatable via Dante port.
- AES67 and Revenna compatible.
Specifications
| Form Factor | Rackmount |
| Channels of I/O | 32 Input / 32 Output |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Mic Preamps | None |
Connectivity
| Analog Audio I/O | 4 x DB-25 25-Pin 8-Channel Input 4 x DB-25 25-Pin 8-Channel Output |
| Digital Audio I/O | None |
| Network I/O | 2 x RJ45 Dante |
| MIDI I/O | None |
Performance
| Frequency Response | 20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz, JEITA) |
| Impedance | DB-25 Inputs: ≥ 10 Kilohms |
| SNR | 113 dB |
| THD+N | 0.001% |
| Crosstalk | > 115 dB |
Digital Audio
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Bit Depths | 16 / 24-Bit |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 22 W |
Physical
| Rackmount Size | 1 RU |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 19 x 12 x 1.8″ / 483 x 303.8 x 45 mm |
| Weight | 7.7 lb / 3.5 kg |
Packaging Info
| Package Weight | 11.55 lb |
| Box Dimensions (LxWxH) | 21.6 x 16.9 x 5.9″ |
