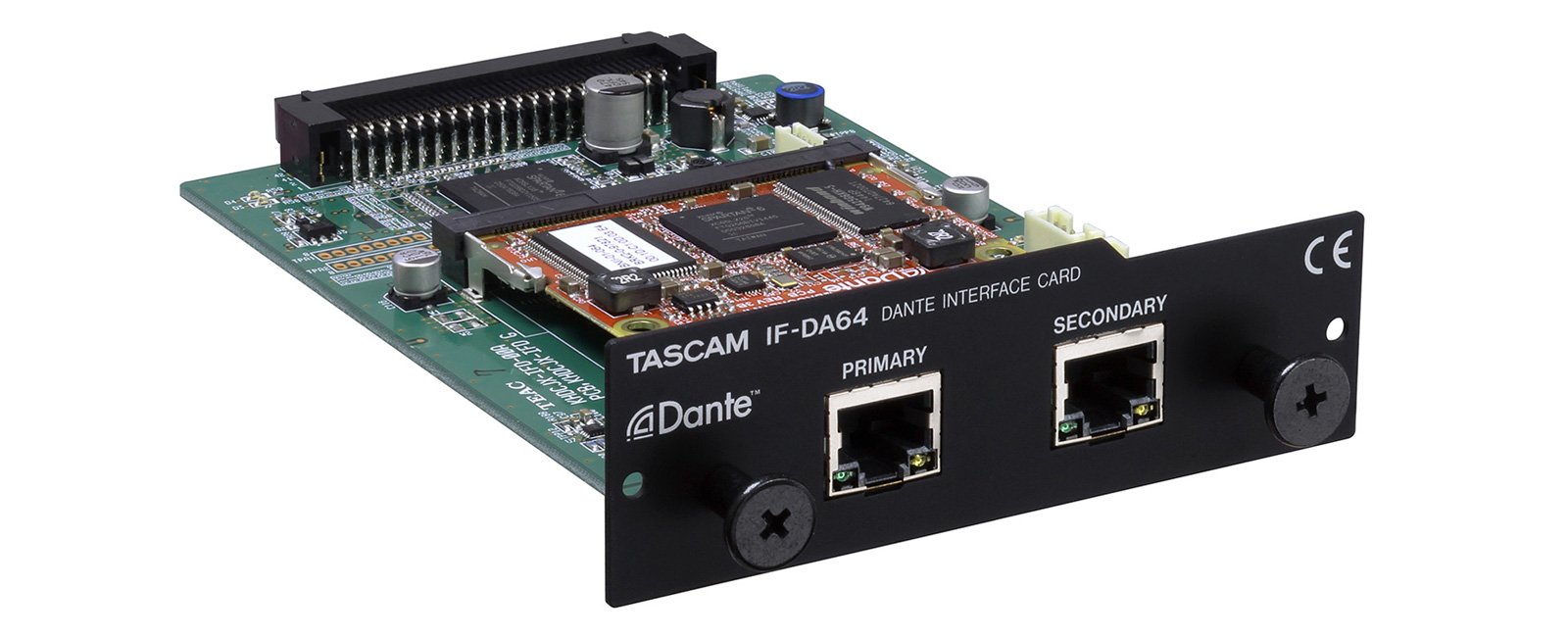

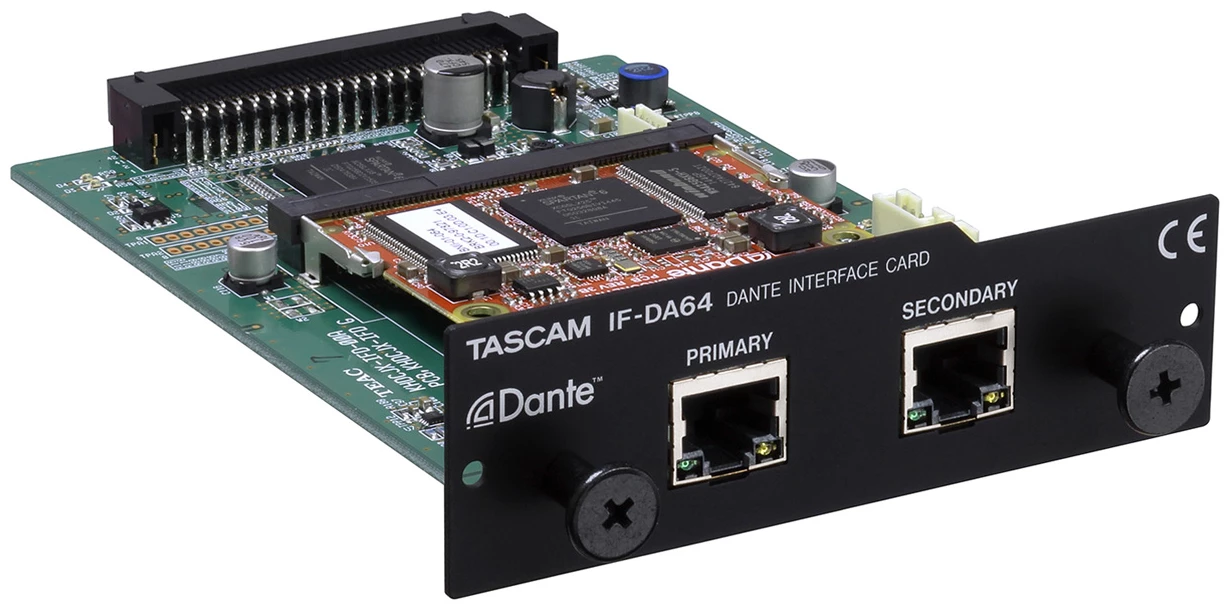

The TASCAM IF-DA64 is an optional 64-channel Dante interface card with ST 2110 support dedicated to the DA-6400 series models. Equipped with primary and secondary ports for I/O redundancy, the IF-DA64 supports simultaneous input/output of 64-channels in sampling frequencies of 44.1k/48kHz, and 32-channels in 88.2k/96kHz.
Features
- Dante interface card for TASCAM DA-6400 multitrack recorder
- Supports 64 channels of recording/playback at 24-bit/48kHz, or 32 channels at 24-bit/96kHz
- Allows you to connect to Dante digital audio networks
Specifications
| hannels and formats | 44.1/48 kHz: 64 channels max 88.2/96 kHz: 32 channels max |
| Connector | RJ-45 |
| Transmission protocol | Dante |
| Gigabit Ethernet standard | 1000BASE-T (IEEE 802.3ab) |
| Cables | category 5e or faster |
Packaging Info
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.5 x 3.7″ |
| Weight | 0.7 lb (0.3 kg) |
| Dimensions | 9 x 7 x 2″ (22 x 17 x 4 cm) |
