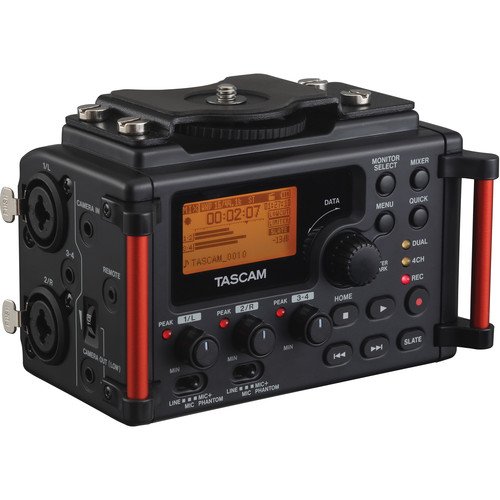

Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder – Portable Audio Recording

Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder – Portable Audio Recording

Name: Tascam DR-60DmkII 4-Input / 4-Track Multitrack Field Recorder – Portable Audio Recording
SKU: DR-60DMK2
Price: 1129.00 AED
Availability: InStock

Brand :

Sku: DR-60DMK2

AED 1,185.45 inc VAT

Available in stock

Features

For filmmaking, television, and web broadcast applications, the Tascam DR-60DmkII multitrack field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-60DmkII is compatible with a variety of setups and working styles.

EAN: 043774031023

Compare Wishlist

Category: Portable Digital Recorders Brand: Tascam

Description

Features

Filmmaking, TV, and Web Broadcast
Optimized for DSLR Shooters
Dual XLR-1/4″ Inputs with Phantom Power
3.5mm Mic/Line Input with Plug-In Power
Records in WAV up to 96 kHz
3.5mm Camera, Line & Headphone Outputs
Supports Battery, AC, or USB Powering
Supports SDHC Cards up to 32GB
Silent Soft-Touch Rubber Keys
Auto Level, Limiter & Low-Cut Filter

Specifications

Portable Recorder

Number of Tracks	4
Maximum Sampling Rate	96 kHz / 24-Bit
Microphone	None
Built-In Speaker	No
Display	Monochrome LCD (Backlit)
Memory Card Support	SD (64 MB to 2 GB) SDHC (4 GB to 32 GB)
Internal Storage	None

Recording

Audio File Formats	BWF, WAV
Sample Rates	WAV: 44.1 / 48 / 96 kHz
Bit Depth	16 / 24-Bit
Signal Processing & FX	Auto Gain, EQ, Limiter, Low-Cut Filter
Timecode Support	No
Recording Time	WAV 44.1 kHz/16-Bit: 1 Hr 41 Mins per GB (Stereo) WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo) WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo) WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo)

Connectivity

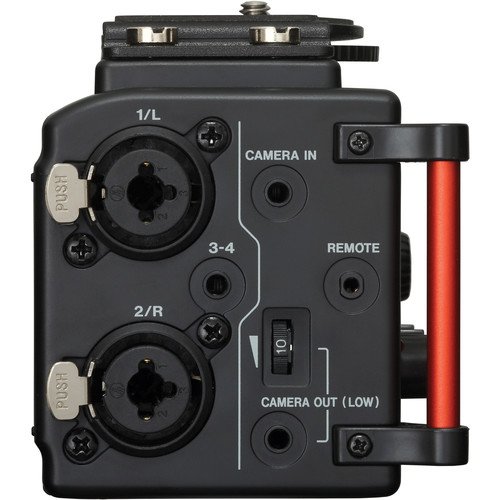

Analog I/O	2 x Combo XLR-1/4″ TRS Female Balanced Line/Mic Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Mic Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Camera Input 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Camera Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output 1 x 2.5 mm TRS Female Remote Input
Digital I/O	None
Phantom Power	+24 / 48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current	10 mA per Channel
Plug-In Power	Yes
Host Connection	1 x Mini-USB (USB 2.0)

Performance

Frequency Response	Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA)
Gain/Trim Range	Balanced Inputs: +11 dB to +64 dB Unbalanced Inputs: +3 dB to +38 dB
Max Input Level	Mic Inputs: 0 dBu Line Inputs: +24 dBu 1/8″ Inputs: +10 dBV Camera Inputs: +6 dBV
Max Output Level	Camera Outputs: -30 dBV Line Outputs: +10 dBV
Headphone Output Power	50 mW per Channel
Impedance	Mic Inputs: 2 Kilohms Line Inputs: ≥10 Kilohms 1/8″ / 3.5 mm Inputs: 10 Kilohms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms
SNR	≥92 dB
THD	≤0.02%
EIN	-120 dBu

Power

Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type	4 x AA (Not Included)
Approximate Battery Life	WAV 44.1 kHz/16-Bit: 2.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording) 4.5 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording) 3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording) 5 Hours (AA NiMH, 2 Channels, Phantom Off, Recording)
AC/DC Power Adapter	5 VDC (Not Included)

Physical

Mounting Options	1/4″-20 Female
Operating Temperature	32 to 140°F / 0 to 40°C
Dimensions	5.2 x 3.7 x 3.1″ / 133 x 93.2 x 78 mm
Weight	1.1 lb / 510 g (without Batteries)
