Description

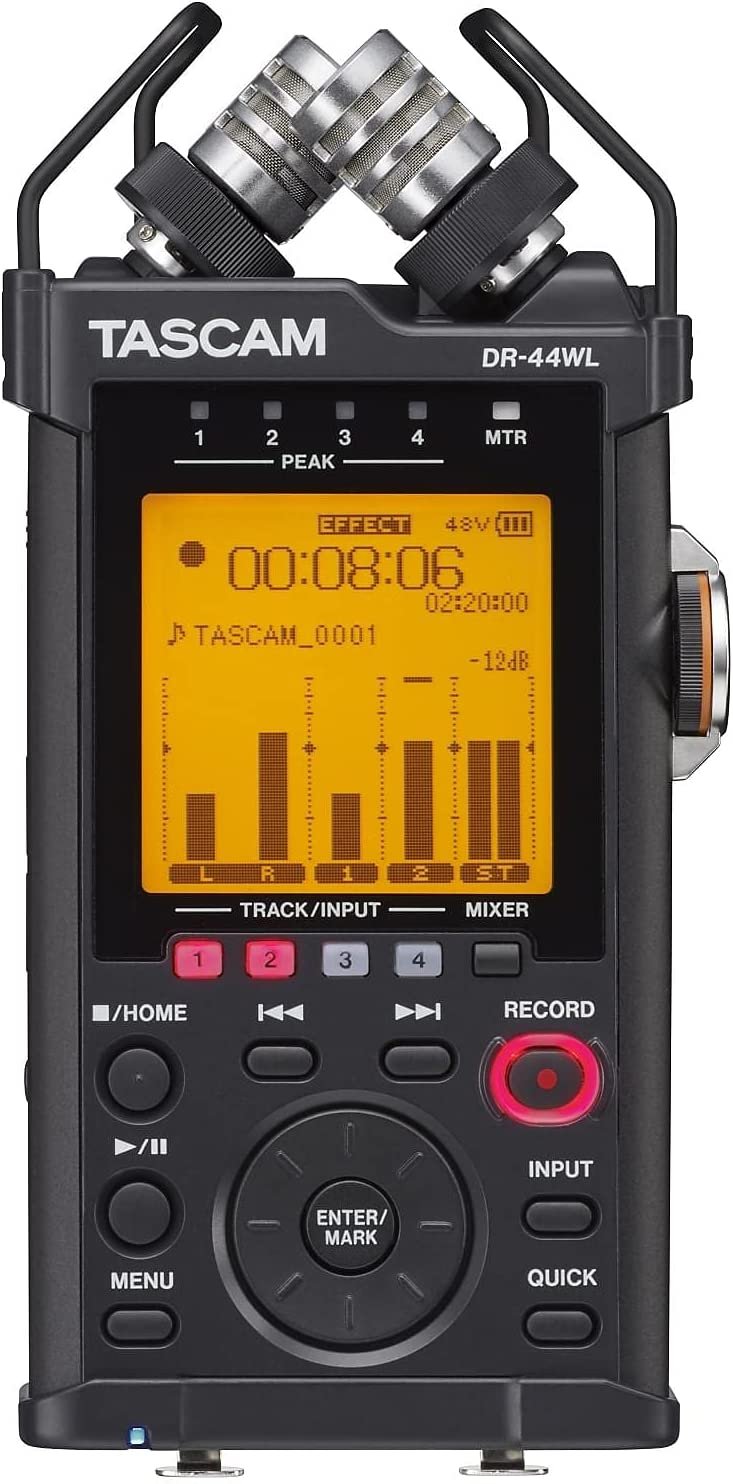

Allowing you to record 4 tracks of audio simultaneously while providing Wi-Fi enabled transport control and file sharing, the DR-44WL Portable Audio Recorder with Wi-Fi from Tascam features a built-in XY stereo microphone and dual combo XLR inputs, and is capable of tracking in up to 24-bit/96 kHz resolution. Thanks to its built-in Wi-Fi, which requires no external network, you can control all transport functions via a free iOS and Android app. Additionally, you can use the built-in Wi-Fi to stream playback to your mobile device, as well as transfer files directly to your smart device or computer, for quick upload to social media.

Features

  • Compact audio recorder that uses SD/SDHC/SDXC cards as recording media
  • Built-in with high performance directional stereo microphones in XY positions
  • Mid-side decoding function can be used with MS microphones
  • Simultaneous recording of up to four channels is possible
  • Built-in four-track MTR feature
  • Built-in Wi-Fi feature to use smartphone as remote control, transfer files from the PCM recorder, and play back audio
  • 44.1/48/96 kHz, 16/24-bit, linear PCM (WAV format) recording possible
  • Compatible with the BWF format
  • 32–320 kbps MP3 format recording possible (compatible with ID3 tag v2.4)
  • The dual recording feature allows two files to be recorded simultaneously at different levels
  • Supports dual format recording (WAV/MP3)
  • Built-in 0.3 W monaural output monitor speaker
  • Built-in effector (reverb) function can be used during recording and playback
  • Auto-record function starts recording automatically when a set sound input level is detected
  • Track incrementing function allows you to update a file at a preset time or at desired position without interrupting recording
  • Pre-recording (PRE REC) function allows the unit to record the 2 seconds of sound before recording is activated
  • Peak reduction function is available to reduce the level automatically in case of excessively large input
  • Limiter function is available to reduce the level automatically in case of excessively large input
  • Low-cut filter conveniently reduces low-frequency noise
  • VSA function can change the playback speed in the range from 0.5 to 2.0 times (in 0.1 increments) the normal speed without changing pitch
  • IN-OUT loop playback functions



Specifications

Recording Media
Recording MediaSD cards: 64 MB to 2 GB
SDHC cards: 4 to 32 GB
SDXC cards: 48 to 128 GB



Recording Format
WAV/BWFSampling Frequency: 44.1, 48, 96 kHz
Quantization Bit Rate: 16- or 24-bit
MP3Sampling Frequency: 44.1, 48 kHz
Recording Bit Rate: 32, 64, 96, 128, 192, 256, 320 kbps
Playback Bit Rate: 32 to 320 kbps



Channel
Channels4CH Mode:
Mono up to 4 files
Stereo up to 2 files
Stereo (1 file) and mono (up to 2 files)

MTR Mode:
Mono up to 4 files



Analog Input
Mic/Line InputsXLR-3-31, phantom power compatible
1/4″ (6.3 mm) TRS standard jack, phantom power compatible
Input Impedance2.2 kOhms or more
Nominal Input LevelMic: -17.3 dBu +/-2 dB
Line: 4 dBu
Maximum Input LevelMic: -1.3 dBu +/-2 dB
Line: +20 dBu



Analog Audio Outputs
Connector1/8″ (3.5 mm) stereo mini jack
Nominal Output Level-14 dBV (10 kOhm load)
Maximum Output LevelLine Output: +2 dBV (10 kOhm load)
Headphone Output: 20 mW + 20 mW (32 ohm load)



USB
ConnectorMicro-B type, 4-pin
FormatUSB 2.0 High-Speed mass storage class



Wi-Fi
ComplianceIEEE 802.11b/g/n (2.4 GHz only)
Communication ModeSimple access point (Limited AP)
SecurityWPA2-PSK (WPS 2.0-supported)



Attachment
AttachmentTripod Attachment Screw Hole: 1/4″ (6.3 mm) tripod attachment screw hole



Power Supply
Power Supply4x AA batteries (alkaline or NiMH),
USB bus power from a computer
Dedicated AC adapter (GPE053B supplied with the unit)
Power Consumption2.5 W (maximum)
Battery LifeAlkaline Batteries:
Recording: About 16 hours (When MIC input is selected, phantom power is not used, WAV, 44.1 kHz/16-bit)

Ni-MH Batteries:
Recording: 12 hours, approximate (When MIC input is selected, phantom power is not used, WAV, 44.1 kHz/16-bit)



Audio Performance
Frequency Response20 Hz to 20 kHz +1/-3 dB (Fs 44.1 kHz, EXT IN to LINE OUT, JEITA)
20 Hz to 22 kHz +1/-3 dB (Fs 48 kHz, EXT IN to LINE OUT, JEITA)
20 Hz to 40 kHz +1/-3 dB (Fs 96 kHz, EXT IN to LINE OUT, JEITA)
Distortion0.05% or less (Fs 44.1/48/96 kHz, EXT IN to LINE OUT, JEITA)
Signal to Noise Ratio92 dB or more (Fs 44.1/48/96 kHz, EXT IN to LINE OUT, JEITA)



Computer Requirements
WindowsWindows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
Mac OS10.2 to 10.9



Dimensions & Weight
Dimensions6.3 x 3.1 x 1.7″ / 160.0 x 78.7 x 43.2 mm
Weight12.2 oz (346 g) including batteries
8.8 oz (251 g) without batteries



Packaging Info
Package Weight1.8 lb
Box Dimensions (LxWxH)10.709 x 8.11 x 4.252″
