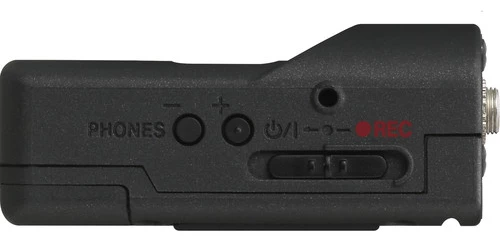

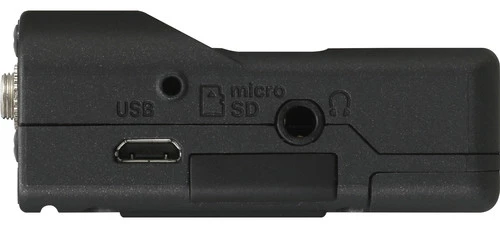

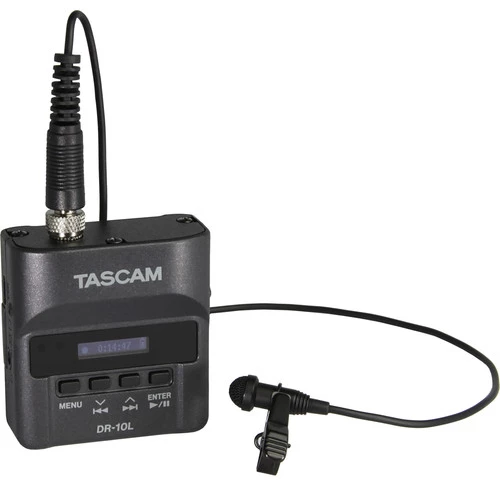

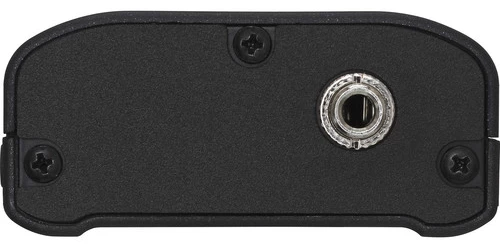

With the black Tascam DR-10L Micro Portable Audio Recorder with Lavalier Microphone, you can record full-resolution dialog and speech while skipping the trouble of long cable runs and avoiding the confusion of configuring a wireless microphone system. Whether you use the included omnidirectional lavalier mic or connect your preferred lav to the Sennheiser-compatible mic input, the entire setup can be discreetly affixed to your sound source. Just over 2 x 2 inches (and only 1-inch deep), the DR-10L is ideal for videography, interviews, weddings, vlogs, and lectures where the audio equipment needs to stay out of sight.
Features
- Videography, Interviews, Weddings, Vlogs
- Omnidirectional Lavalier Microphone
- Limiter & Auto-Level Prevent Distortion
- Records Broadcast WAV with Safety Track
- Locking 3.5mm Mic Input w/ Plug-In Power
- Volume Adjustable 3.5mm Headphone Output
- Up to 10 Hours via Single AAA Battery
- Supports microSDHC Cards up to 32GB
- Compatible with Most Sennheiser Lav Mics
- Belt-Mount, Pocket-Friendly Housing
Specifications
Portable Recorder
| Number of Tracks | 1 |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Microphone | Interchangeable Omnidirectional Condenser Lavalier |
| Built-In Speaker | No |
| Display | OLED |
| Memory Card Support | microSD (64 MB to 2 GB) microSDHC (4 to 32 GB) |
| Internal Storage | None |
Recording
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV: 44.1 / 48 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 128 to 192 kb/s (Record) 32 to 320 kb/s (Playback) |
| Signal Processing & FX | Auto Gain, Limiter, Low-Cut Filter |
| Timecode Support | No |
| Recording Time | WAV 48 kHz/24-Bit: 2 Hrs 4 Mins per GB (Mono) |
Connectivity
| Analog I/O | 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Mic Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output |
| Digital I/O | None |
| Phantom Power | None |
| Plug-In Power | Yes, 2 V |
| Host Connection | 1 x Micro-USB (USB 2.0) |
Performance
| Frequency Response | 20 Hz to 22 kHz +1/-2 dB |
| Gain/Trim Range | Mic Inputs: +14 to +38 dB |
| Max Input Level | Inputs: -15 dBu (Low Gain) -55 dBu (High Gain) |
| Impedance | Mic Inputs: 33 Kilohms (Plug-In Power Off) 2 Kilohms (Plug-In Power On) |
| SNR | Headphone Outputs: ≥88 dB |
| Microphone Sensitivity | -42 dBV/Pa |
| Microphone Max SPL | 115 dB SPL |
Power
| Power Options | Batteries or USB Bus Power |
| Battery Type | 1 x AAA (Not Included) |
| Approximate Battery Life | WAV 48 kHz/24-Bit: 10 Hours (Alkaline, Mono, without Headphones) 9.5 Hours (Alkaline, Mono, Plug-In Power On, without Headphones) 8 Hours (NiMH, Mono, without Headphones) 7.5 Hours (NiMH, Mono, Plug-In Power On, without Headphones) 15.5 Hours (Lithium, Mono, without Headphones) 14.5 Hours (Lithium, Mono, Plug-In Power On, without Headphones) |
Physical
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 2 x 2.2 x 1″ / 52 x 55.6 x 24.4 mm |
| Weight | 2.2 oz / 63 g (with Batteries) 1.8 oz / 51 g (without Batteries) |
Packaging Info
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 5.8 x 4.6 x 2.2″ |
