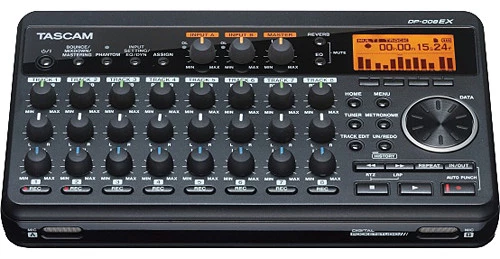

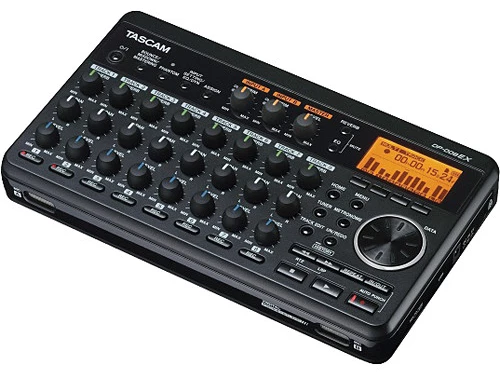

The DP-008EX 8-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two balanced XLR inputs and two unbalanced 1/4″ TS inputs can be used to record mic, line or Hi-Z instrument signals. The XLR inputs have switchable +48V Phantom power. Designed with analog functionality and dedicated control knobs, the DP-008EX is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.
Features
- Dual Omnidirectional Microphones
- Records WAV Files at 16-Bit/44.1 kHz
- Onboard Channel, Reverb and Mastering FX
- XLR and 1/4″ TS Inputs
- Mini USB 2.0 Output
- Integrated Metronome and Tuner
- Includes 2GB SD Card
- 5.5 Hours of Operation on 4 AA Batteries
- RCA Stereo Line Output
- 1/8″ Stereo Headphone Output
Specifications
| Form Factor | Tabletop |
| Number of Tracks | 8 |
| Maximum Sampling Rate | 44.1 kHz / 16-Bit |
| Built-In Microphone | 2 x Omnidirectional Condenser |
Connectivity

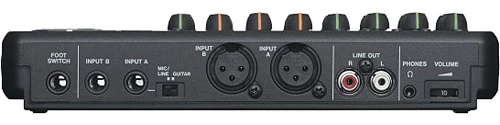

| Analog Audio I/O | 1 x 1/8″ / 3.5 mm TRS Headphone Output 1 x Stereo RCA Coaxial Unbalanced Line Output 2 x 1/4″ TS Unbalanced Line Input 2 x XLR 3-Pin Balanced Mic Input |

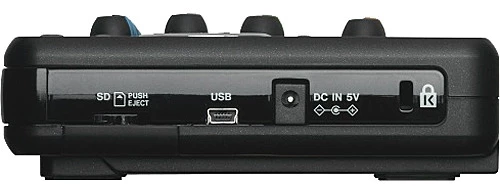

| USB (Non-Host) | 1 x Mini-USB (USB 2.0, External Storage) |
Performance
| Frequency Response | 20 Hz to 20 kHz +1/-3 dB |
| Maximum Input Level | Line Inputs: +6 dBV Mic Inputs: +8 dBu |
| Maximum Output Level | Line Outputs: +6 dBV |
| Headphone Output Power | 20 mW per Channel into 32 Ohms (Max, 0.1% THD) |
| Impedance | Mic Inputs: 2.4 Kilohms Mic/Line Inputs: ≥ 10 Kilohms Hi-Z Inputs: 1 Megohm |
| SNR | > 81 dB |
| THD | < 0.05% |
Audio Storage & Playback
| Supported Media | SD Card |
| Memory Card Slot | 1 x SDHC |
| Supported Media Capacity | SD/SDHC: 32 GB Minimum |
| File System Support | Tascam (MTR), FAT32 |
Compatibility
| OS Compatibility | Windows XP Windows Vista Windows 7 macOS 10.2 or Later *As of November, 2021: check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements | Battery, AC/DC Power Adapter (Not Included) |
| Power Consumption | 2.4 W (Maximum) |
| Battery Type | 4 x AA |
| Approximate Battery Life | 5.5 Hours (Alkaline, Recording, Line Input) 6.5 Hours (NiMH, Recording, Line Input) 6 Hours (Alkaline, Playback, with Headphones) 7 Hours (NiMH, Playback, with Headphones) |
Physical
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions | 8.7 x 1.74 x 5″ / 221 x 44.3 x 126.5 mm |
| Weight | 1.3 lb / 610.0 g |
Packaging Info
| Package Weight | 2.385 lb |
| Box Dimensions (LxWxH) | 11.9 x 6.9 x 3.8″ |
