Tascam DA-6400DP Audio Recorder

Tascam DA-6400DP (DA6400DP) 64-Track Universal Backup Audio Recorder with redundant power supply. TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.

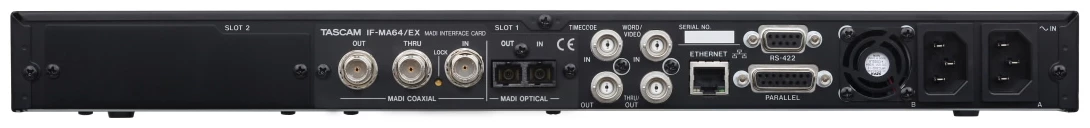

Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections.

Features

• Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
• The perfect backup recording system for synchronized capture with Pro Tools systems
• 2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.
• (Note: HDD support currently under development)
• Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units
• Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
• AK-CC25 with TASCAM 240GB SSD drive included with unit
• Hi-visibility Color LCD  (320×120 pixels)
• BWF support for storing time information with files
• Two I/O slots for optional audio interface cards:
• IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
• IF-MA64/BN 64-channel MADI coaxial interface card
• IF-DA64 64-channel Dante interface card
• IF-AE16 16-channel AES/EBU interface card
• SMPTE LTC timecode input and output for location synchronization
• Firmware upload over USB port
• Parallel remote control input
• RS-422 serial remote control (9-pin serial protocol compliant)
• Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
• SNTP server support for automatic adjustment of the internal clock over a network
• Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
• EIA 1U rackmount size
• IEC 3-pin inlet
• iPad and computer applications for remote control
• AC power redundancy built in (DA-6400dp only)
