Description

Retro-modern and built to last! Building on TASCAM’s long history of providing professional quality cassette decks, the TASCAM 202mkVII dual cassette deck is ideal for professional studios, houses of worship, audio/music enthusiasts and more. And to bridge the gap bewteen the analog and digital worlds, the 202mkVII adds USB conversion for easy digital archiving of your favorite tapes.



FEATURES

  • Dual cassette deck for playing, dubbing, or recording 1 or 2 cassettes
  • USB output for archiving a cassette to an external digital recorder
  • Microphone input with level control can be mixed with cassette 1 and total mix recorded to cassette 2; convenient for karaoke and announcements
  • Headphone jack output with separate level control for audio verification or private monitoring
  • “SPECIAL” playback mode that allows you to cue the next song on a tape by monitoring the sound with headphones while another tape is playing

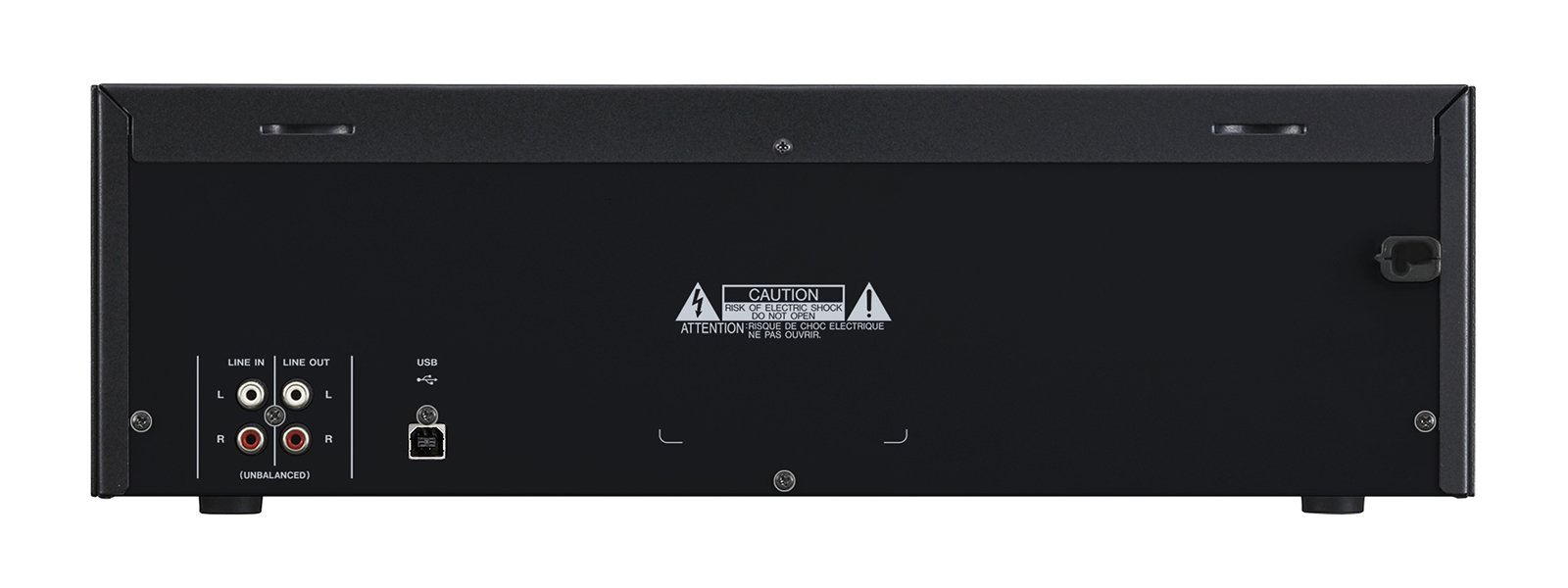

  • RCA analog unbalanced outputs; stereo RCA input
  • RTZ (Return to Zero) function that returns the tape to the zero count point
  • Repeat playback function
  • +/-12% pitch control function (TAPE 1 only)
  • Parallel recording function for TAPE 1/2 that can reduce time for dubbing cassettes
  • Supports recording and playback of normal tapes (Type I) and chrome tapes (Type II) – For metal tapes (Type IV), only playback is supported

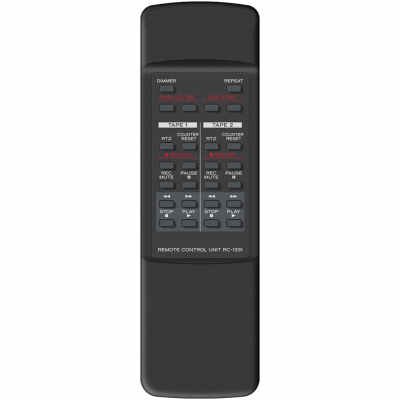

  • Dedicated wireless remote control
  • Noise reduction function to reduce hiss during playback (equivalent to Dolby B NR)
  • 3U rack mount design

SPECIFICATIONS

Track System 4-track, 2-channel stereo
Heads Construction Record/playback head × 1 (each deck)
Erase head × 1 (each deck)
Tape Speed 4.8 cm/sec
Pitch Control +/-12%
Fast Winding Time approximately 120 sec (C-60 tape)
Wow and Flutter 0.25% (W.RMS)
Frequency Response (Overall)
High position tape (Type II) 30 to 15k Hz (+/-4dB)
Normal tape (Type I) 30 to 13k Hz (+/-4dB)
Signal to Noise Ratio (Overall) 59dB (at maximum recording level input, A-Weight)
ANALOG INPUT jacks
Connector RCA
Nominal input level -9dBu (0.28Vrms)
Maximum input level +20dBu (7.75Vrms)
Input impedance 33kΩ
MIC INPUT jack
Connector 6.3mm(1/4″)standard mono jack
Maximum input level -66dBu (0.38mVrms)
Input impedance 3kΩ or more
ANALOG OUTPUT jacks
Connector RCA
Nominal output level -4.5dBu(0.46Vrms)
Output impedance 1kΩ
PHONES
Connector Standard 6.3mm (1/4″) stereo jack
Maximum output 15mW + 15mW (into 32Ω load,)
USB
Connector USB B-type
Protocol USB2.0 FULL SPEED
Sampling frequency 8k/11.025k/16k/22.05k/32k/44.1k/48k Hz
Quantization bit rate 8/16bit
Power
U.S.A./Canada AC120V, 60Hz
U.K./Europe AC240V, 50Hz
Power consumption 14W
Dimensions 482(W) × 138.3(H) × 285.8(D)mm (including protrusions)
Weight 5.4kg
Accessories Wireless remote control (RC-1331), AAA batteries × 2, A rack-mounting screw kit, Owner’s manual (with warranty)
