The Tannoy Super Gold Monitor 10″ (SGM10) is a meticulously engineered 2 way stand mount hi fi loudspeaker that carries forward Tannoy’s legendary Dual Concentric point source design. At its core is a 10″ Dual Concentric driver, where the high frequency tweeter is mounted at the centre of the woofer cone to create a single acoustic source, resulting in coherent imaging, excellent phase alignment, and smooth sound dispersion across both horizontal and vertical planes — widening the listening sweet spot and allowing more flexible placement.
Housed in a rugged, high density cabinet with front facing dual reflex ports, the Super Gold Monitor 10 delivers rich, controlled bass with clean transients and minimal coloration. The front panel features user adjustable controls for Treble Roll Off and Treble Energy, giving listeners subtle yet impactful room tuning capabilities and sonic refinement to suit varied acoustics. Premium binding posts support both standard and bi wired connections for flexible system integration, while high quality crossover components ensure coherent frequency transitions and accurate tonal balance.
With a frequency response spanning approximately 40 Hz – 30 kHz ±6 dB, 89 dB sensitivity, and nominal 8 Ω impedance, these speakers pair well with a wide range of amplifiers — from solid state to tube designs — providing dynamic, engaging sound reproduction that brings detail, depth, and musical emotion to both stereo and home cinema systems.
Features
- 10″ passive studio main monitor based on the legendary Tannoy SUPER GOLD
- Legendary Tannoy Dual Concentric driver technology provides class-leading phase coherence and point-source imaging
- Ultra-precise and neutral soundstage delivers Non fatiguing sound for extended listening sessions
- Front mounted control panel houses a 2 band energy control to compensate for varying acoustics characteristics and Environments
- Original classic cabinet design with modern components provides a genuine reproduction of the original classic monitor
- Front-firing bass port design allows near wall or soffit placement, ensuring optimal low frequency performance
- High density cabinet provides extreme rigidity to control low frequency performance
- Extensive bracing incorporating DMT (Differential Materials Technology) to couple driver to cabinet
- Heavy duty 24 carat multi-layer gold plated Tannoy customized binding posts for optimum signal transmission and integrity
- Precision machined gold anodised aluminium adjustment panel metal trim complements the aesthetic of the wood cabinet
- Tannoy – Around 100 years of British sound heritage and innovation
Specifications
System
| Frequency response | 40 Hz – 30 kHz ± 6 dB |
| Recommended amplifier power | 20 – 200 W |
| Power handling (IEC) | 100 W continuous, 400 W peak |
| Sensitivity | 89 dB (1 W @ 1 m) |
| Impedance | 8 Ω |
Components
| Low frequency dual concentric | 1 x 10″ (254 mm) paper pulp cone with twin roll impregnated fabric surround, 52 mm (2″) edge wound voice coi |
| High frequency dual concentric | 1 x 1.3″ (33 mm) aluminium/magnesium alloy dome with edge-wound voice coil |
| Crossover | |
| Frequency | 1.2 kHz |
| Type | Bi-wired, hard wired passive, low loss 2nd order low pass, 1st order high pass |
| Adjustment | ±3 dB over 1 kHz to 30 kHz shelving, 2 dB to -6 dB per octave over 5 kHz to 30 kHz slope |
| User controls | treble roll off, treble energy |
Enclosure
| Type | Twin distributed port |

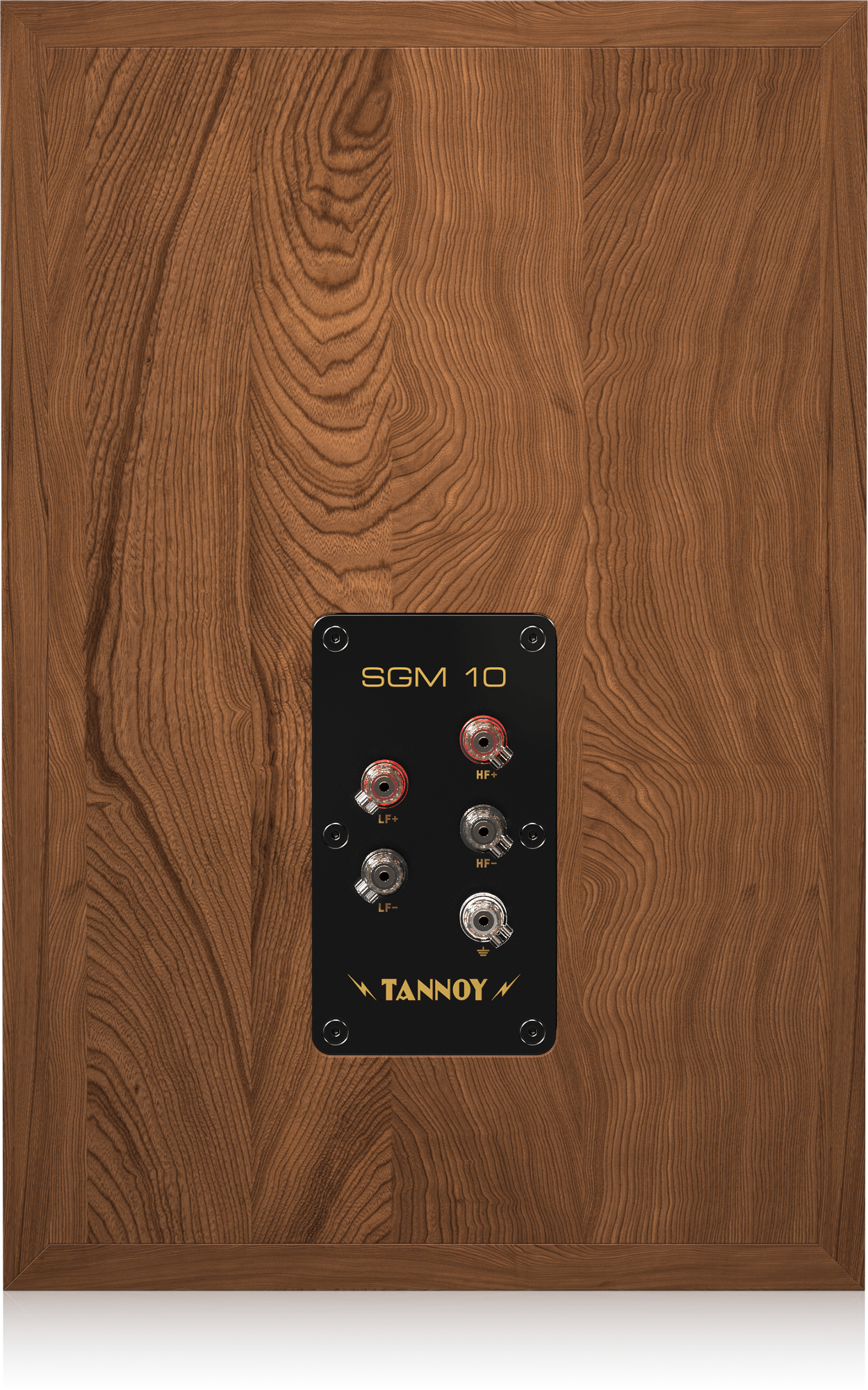

| Connectors | 5 x 4 mm 24ct Tannoy customized binding posts |
| Dimensions HWD | 350.5 x 309 x 523.2 mm (13.8 x 12.2 x 20.6″) |
| Net weight | 18.5 kg (40.8 lbs) |
| Construction | 19 mm (3/4″) Particle Board, MDF with plywood internal bracing – heavily damped |
| Finish | Walnut veneer and high acoustic transparency nylon grill cover |
