Tannoy QFLEX 16 Digitally Steerable Powered Column Array Loudspeaker

The QFLEX 16 is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.

Features

• Digitally steerable column array speaker system provides extremely high intelligible speech and music reinforcement
• Class leading ±70° steering control with 16 channels of integrated DSP and amplification
• Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
• Ideal for the most challenging acoustic environments due to extended frequency range steering control

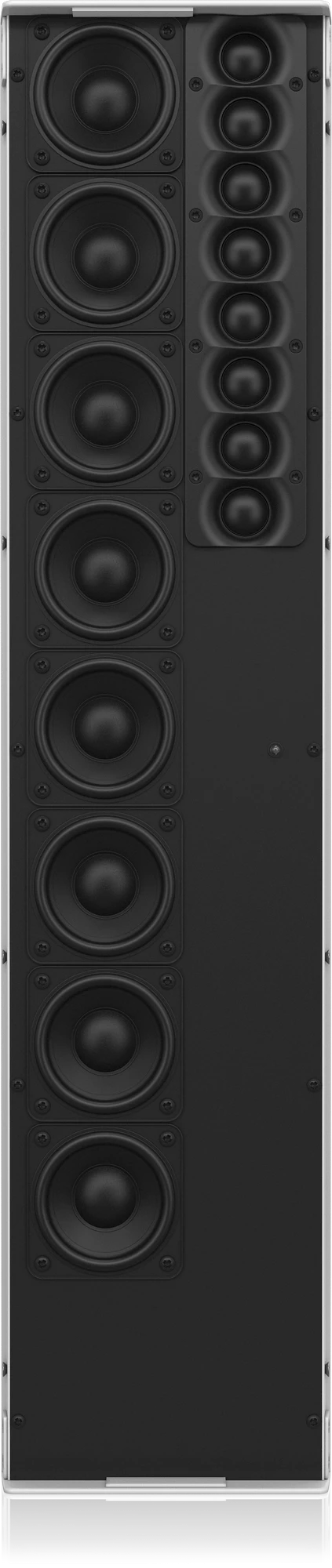

• 8 3″ low frequency drivers and 8 1″ high frequency drivers with individual 100 Watt Class D amplifiers and integrated cutting edge DSP
• For installation applications with coverage distances up to 25 m (82′)
• High density array of transducers with proportional frequency spacing prevents aliasing artefacts
• Fully integrated amplified speaker system connects to other Tannoy VNET enabled products
• Accessory options for constant voltage systems, Audinate Dante* digital audio networks, Ethernet control, and AES3 break in interface
• AES3 input and link connections on RJ-45 connectors with internal sample rate conversion up to 96 kHz
• Fully PA/VA compliant

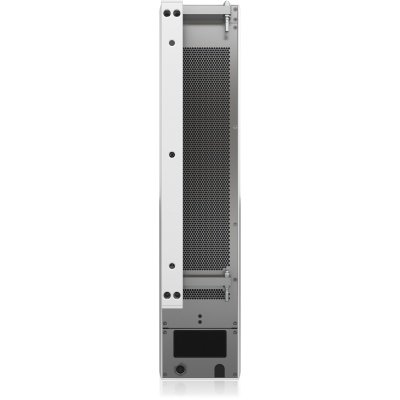

• Architecturally styled aluminium enclosure with a semi matt white painted finish
• Corrosion resistant aluminium perforated grille
• Included custom brackets allow quick and accurate installation

Specifications

Performance

Application

Traditional houses of worship
Transportation hubs
Museums
Shopping malls
Theatres and auditoria
Government buildings
Conference facilities
Hotel ballrooms
Corporate HQ atria

Driver configuration

8x 3″ LF, 8x 1″ HF

Amplifier channels

16x 100W rms at 4Ohms

Amplifier type

Class D

Horizontal dispersion

120 degrees

Vertical dispersion

Variable 10 – 100 degrees (Asymmetric & multiple beams may also be generated)

Aiming Angle Limit

+/- 70 degrees

LF Beam Control Limit

700Hz

Frequency Range

130Hz-20kHz (-10dB)

Maximum SPL

94dB at 30m (98.42′)

Application Distance

25m (82.02′) typical

Sampling Rate

96kHz

Network

VNET monitoring and control standard (optional Dante)

Connectors

Analogue audio

2 inputs (A & B), Phoenix 6-pin connectors

VNET

Dual RJ45 connectors In/Link (for Cat-5 cable)

AES/EBU

RJ45 (same Cat-5 as VNET) via AES/VNET interface

Power

GST18 3-pole female power connector

Construction

Enclosure Material

Extruded Aluminum

Protective Grille

Painted Aluminum

Power SupplyJ

Power Supply

Universal 100 – 230V / 50-60Hz

Power Consumption

STIPA Noise: 80W
1/3rd Full power: 170W
1/8th Full power: 112W
Idling: 39W
Quiescent: 26W

Current Draw

At 230Vac:
STIPA Noise: 0.75A
1/3rd Full power: 1.14A
1/8th Full power: 0.76A
Idling: 0.39A
Quiescent: 0.3A
In Rush: 4.9A

At 115Vac:
STIPA Noise: 1.2A
1/3rd Full power: 1.8A
1/8th Full power: 1.2A
Idling: 0.52A
Quiescent: 0.4A
In Rush: 2.5A

General

Dimensions (HxWxD)

744 x 171.5 x 150mm (29.29 x 6.75 x 5.91″)

Weight

31.5 lbs (14.29kg)
