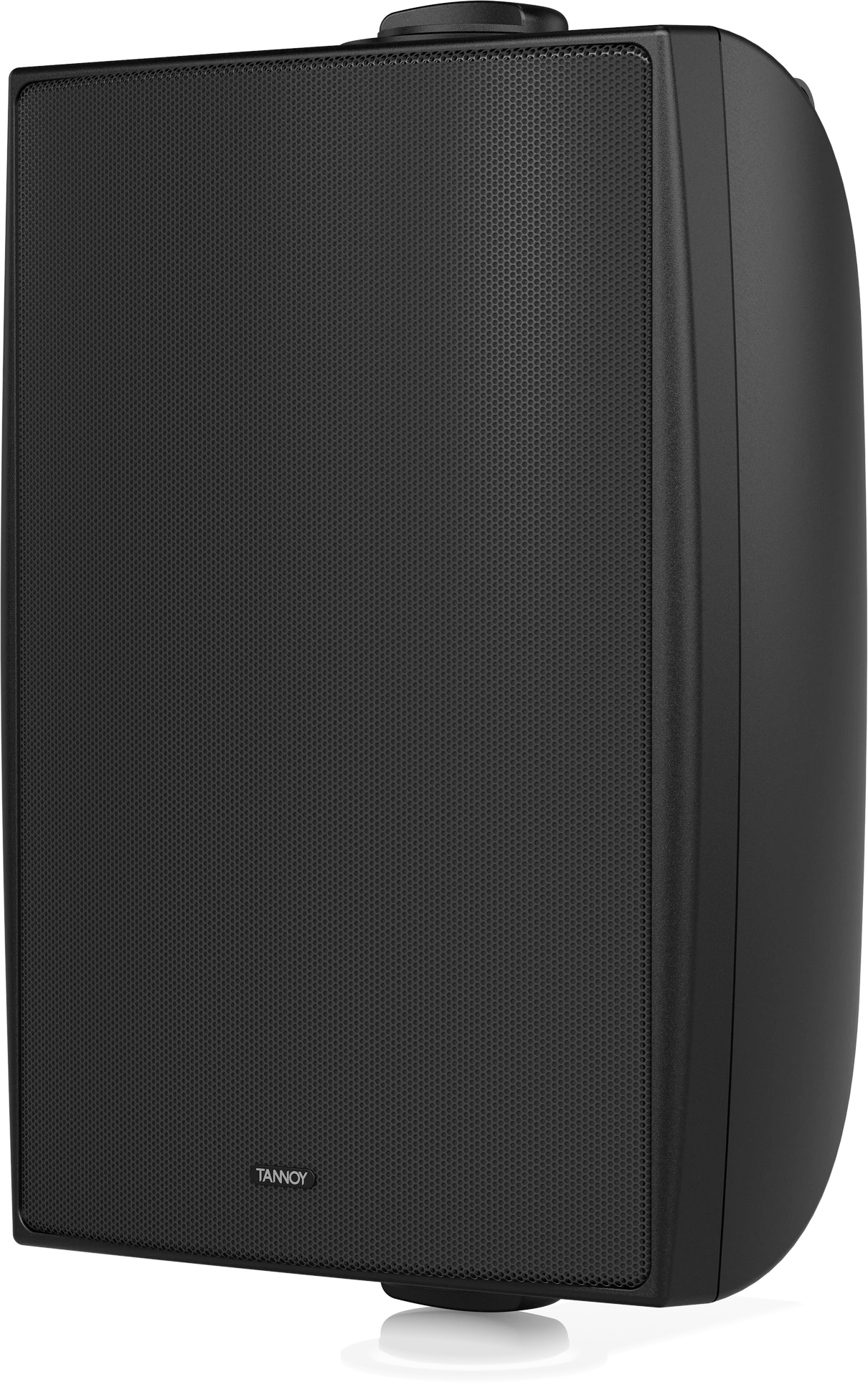

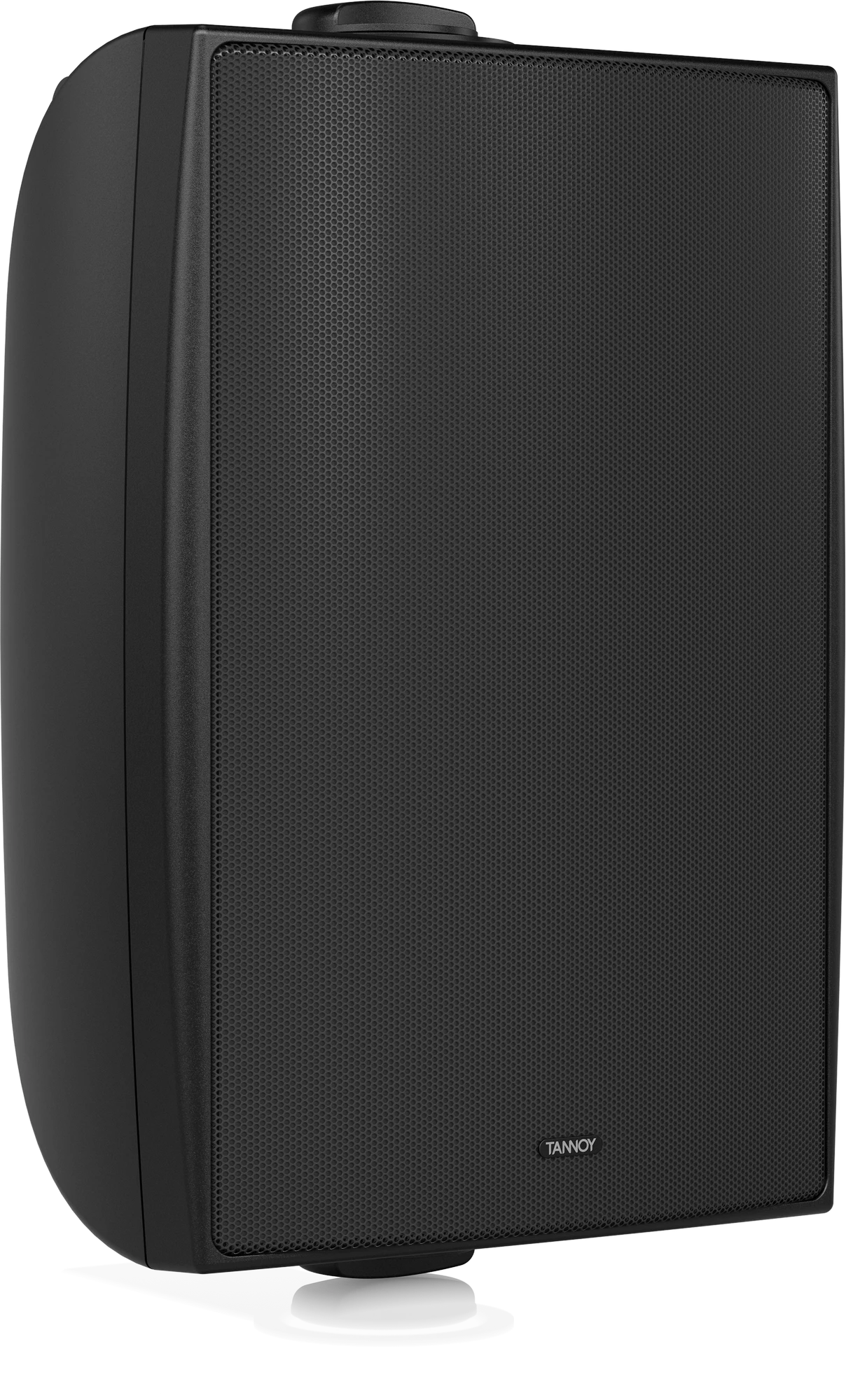

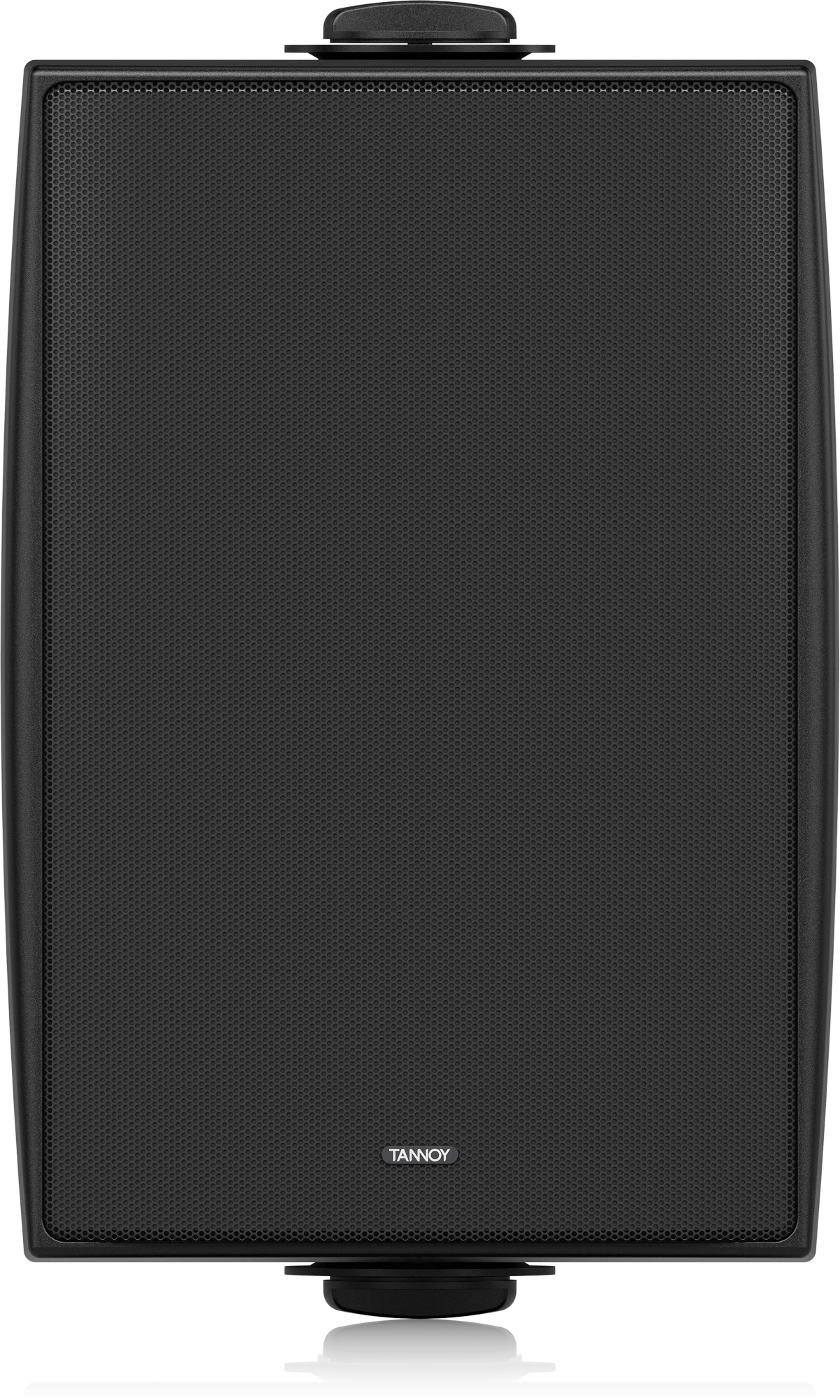

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6 is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.
Features
- Full range surface-mount loudspeaker for indoor and outdoor installation applications
- 60 Watts continuous, 240 Watts peak power
- 6″ mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75″ ferrofluid cooled soft dome neodymium high frequency driver
- 90° constant directivity dispersion for optimum coverage
- UL 1480 certified for general signalling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- 6 Ohm direct input for low impedance applications
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semi matt black paint finish fits unobtrusively in any environment
- Painted perforated aluminium mesh grille with dust protection

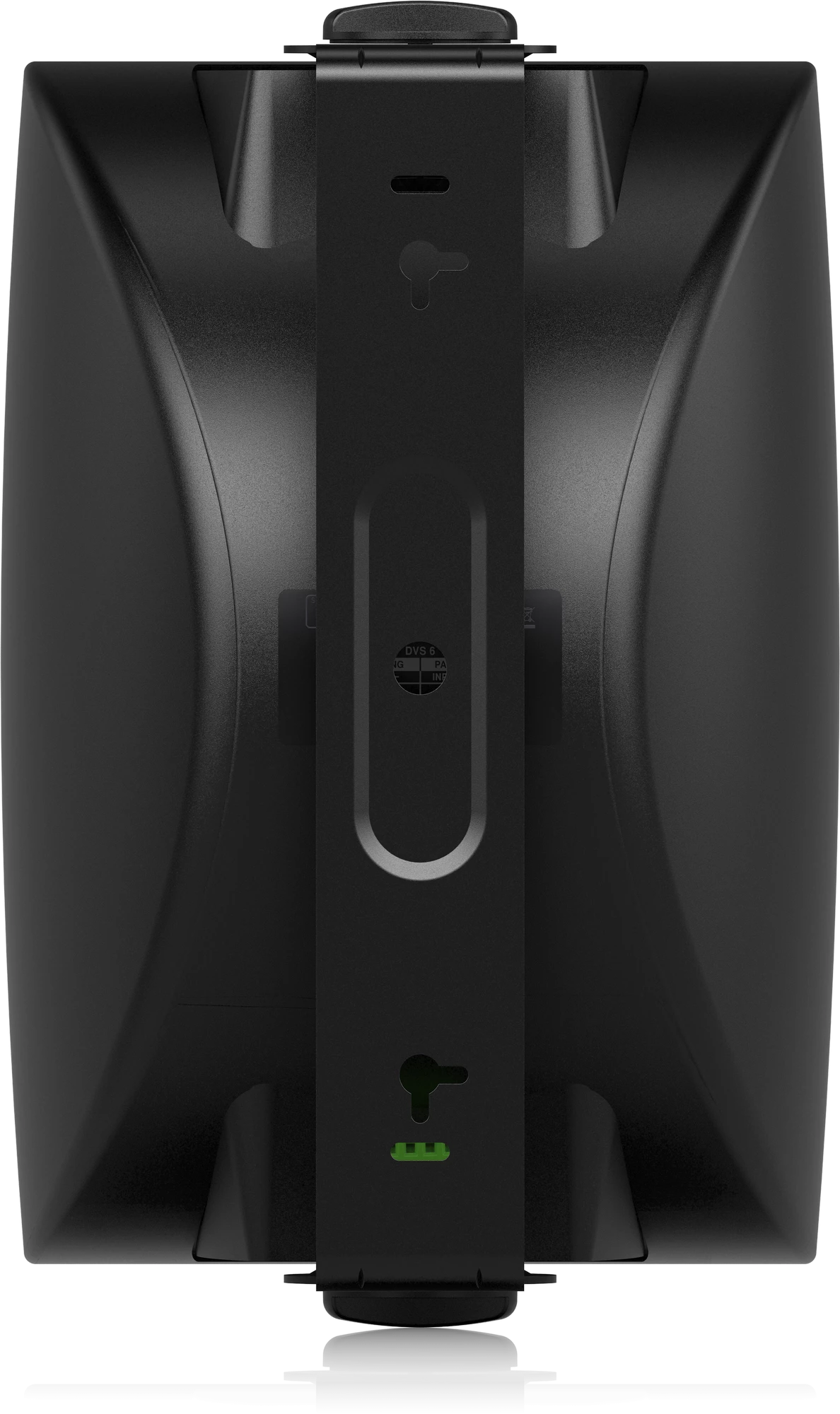

- Yoke bracket included for ease of installation
- Phoenix* connectors input and link output
Specifications
Performance
| Frequency response (-3 dB)1 | 80 Hz – 20 kHz |
| Frequency response (-10 dB)1 | 65 Hz – 30k Hz |
| System sensitivity (1 W @ 1 m)2 | 88 dB |
| Dispersion (-6 dB) | 90 degrees conical |
| Transducers | Coaxial |
| Low frequency | 165mm (6.5″) mineral loaded cone material |
| High frequency | 20 mm (0.79) |
| Crossover | 4.3 kHz – 2nd order LF, 2nd order HF |
| Directivity (Q) | 10.6 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 9.6 averaged 1 kHz to 10 kHz |
| Rated maximum SPL 2 | 105 dB (average) |
Non Transformer Version
| Maximum wire gauge for connector | 2.5 mm CSA (AWG12) |
| Safety Agency Ratings | UL-1480, CE |
Power Handling
| Average | 60 W |
| Programme | 120 W |
| Peak | 240 W |
| Recommended amplifier power | 120 W @ 6 Ohms |
| Nominal impedance | 6 Ohms |
Construction
| Enclosure | ABS |
| Grille | Aluminium, painted |
| Connectors | Euroblock type removable locking connector with screw terminals with “loop through” facility |
| Supplied accessories | Yoke bracket |
| Packed quantity | 2 |
| Dimensions (H x W x D) | 340.5 x 212.2 x 216.5 mm |
