Tannoy CVS 801 8″ Coaxial In-Ceiling Loudspeaker

The Tannoy CVS 801 is a professional 8-inch coaxial in-ceiling loudspeaker designed for commercial audio installations requiring high output and wide sound coverage. Engineered for reliability and consistent performance, the speaker features an 8-inch polypropylene low-frequency driver and a 1-inch ferrofluid-cooled soft dome tweeter, delivering balanced full-range audio suitable for music and voice applications.

Designed specifically for installed sound systems, the CVS 801 provides wide constant-directivity dispersion, allowing sound to be evenly distributed across large spaces such as retail stores, hotels, airports, restaurants, and conference rooms. With 90 W continuous power handling and up to 360 W peak, it delivers strong output while maintaining clarity.

The loudspeaker supports 70V/100V line distributed audio systems as well as 8-ohm low-impedance operation, making it flexible for both small and large multi-speaker installations. A low-insertion-loss transformer with selectable taps allows installers to easily configure power levels based on system requirements.

Built for professional environments, the CVS 801 includes EN54-24 certification for fire detection and alarm systems, as well as UL 1480 and UL 2043 safety certifications, making it suitable for use in air-handling spaces and critical commercial installations.

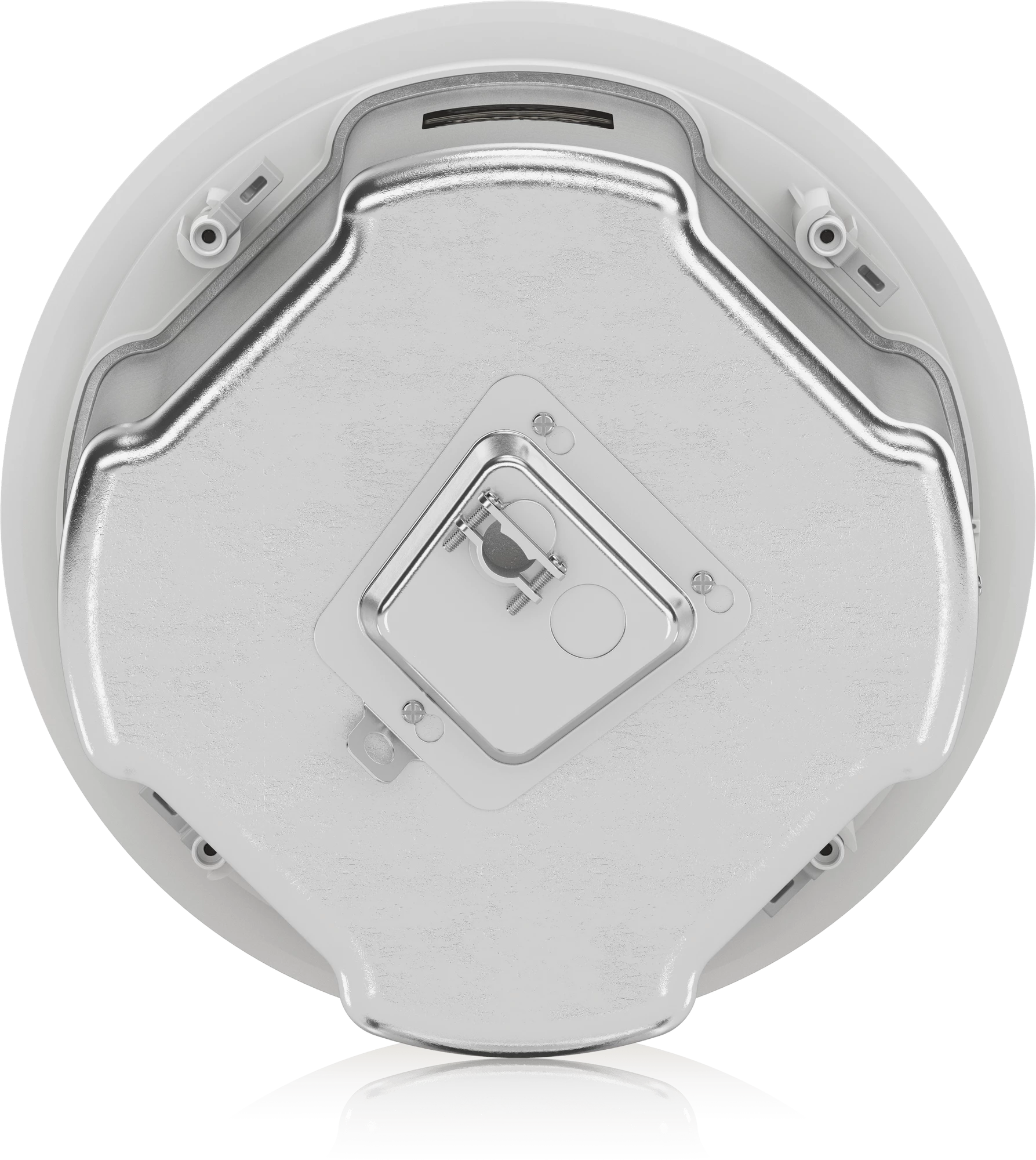

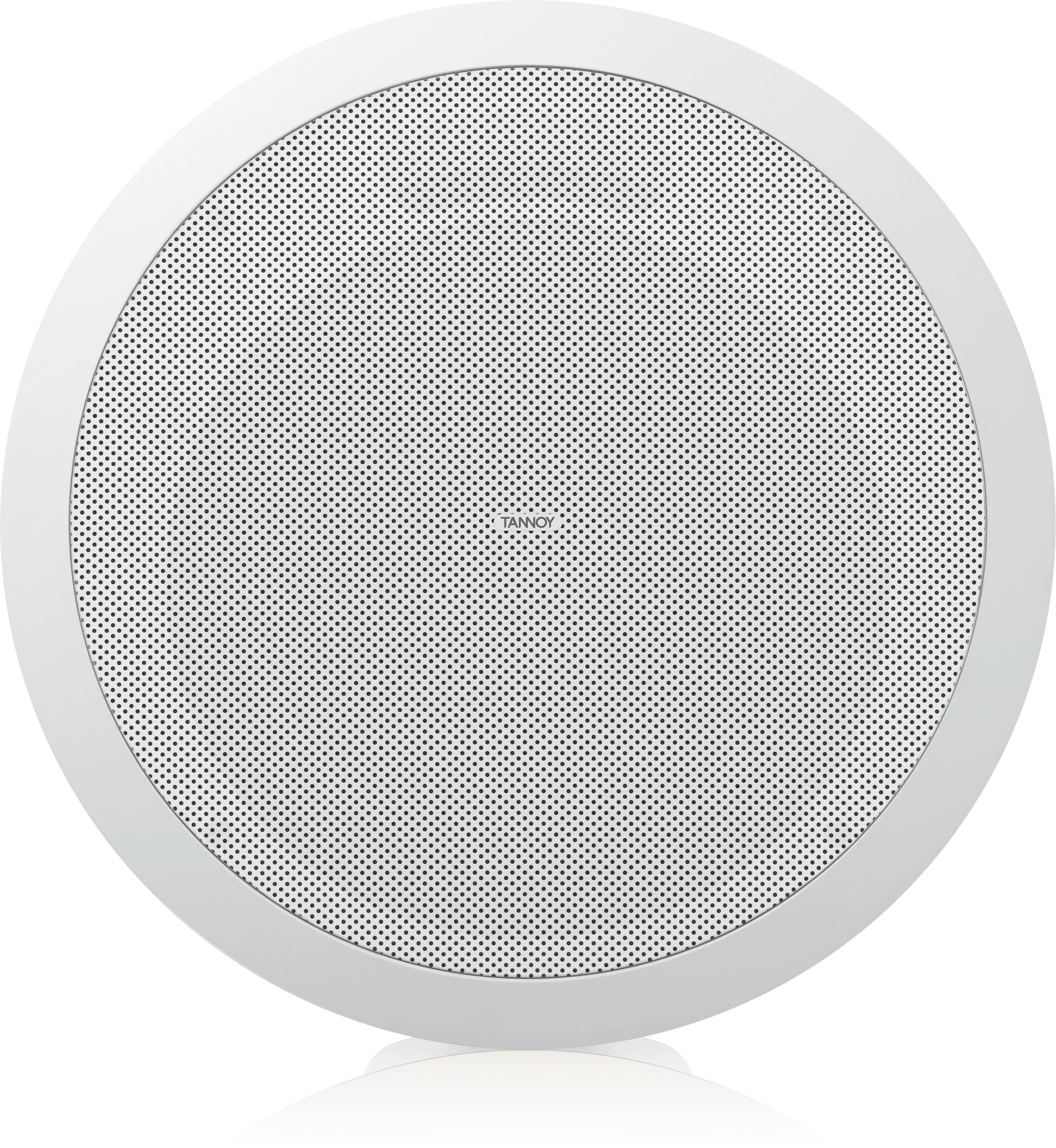

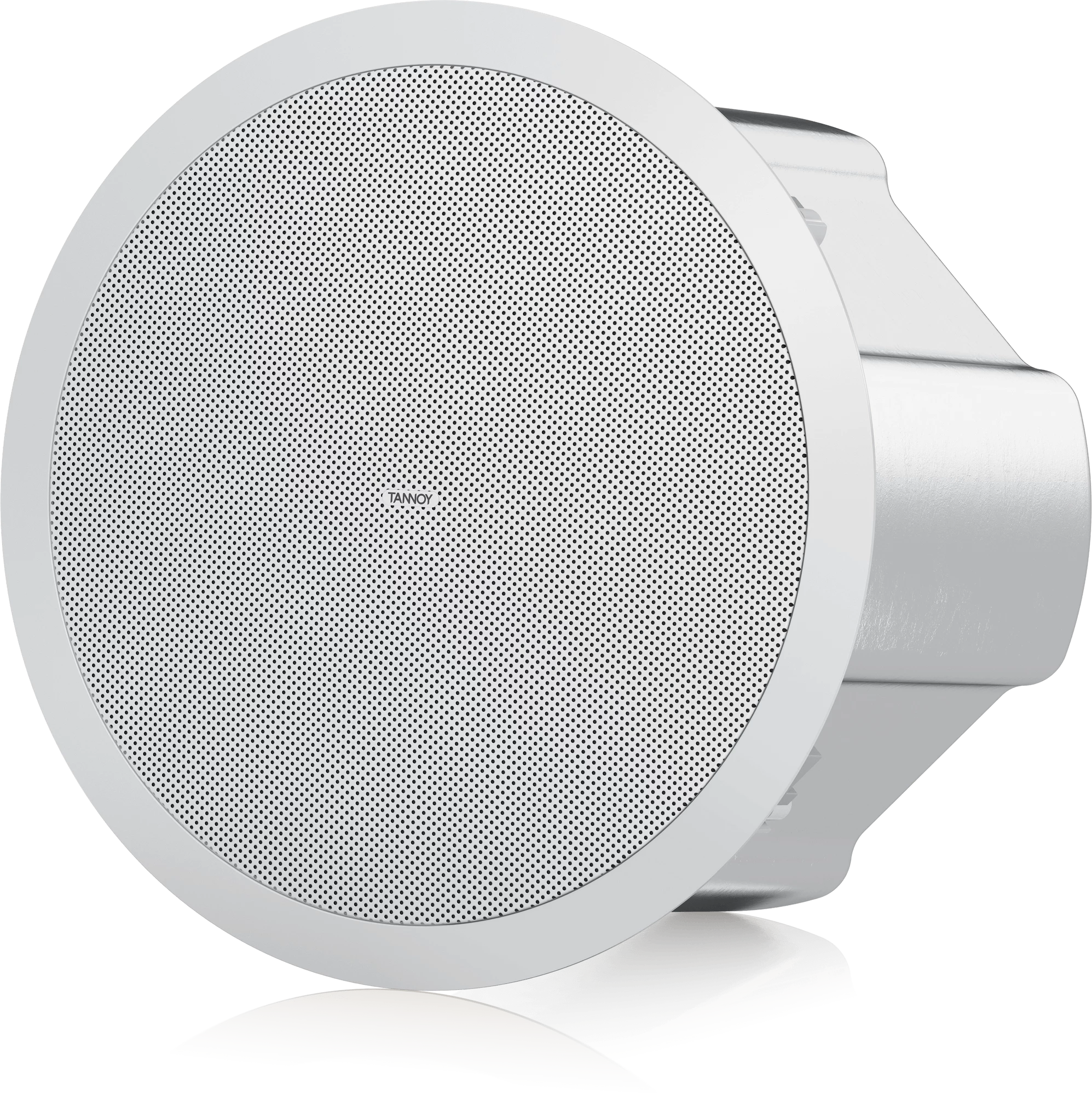

With its durable back-can enclosure, powder-coated grille, and discreet white finish, the speaker blends seamlessly into ceilings while providing reliable long-term audio performance.

Features

• 8″ coaxial in-ceiling loudspeaker for commercial installations
• 8″ polypropylene woofer with 1″ soft-dome high-frequency driver
• 90 W continuous / 360 W peak power handling
• Wide constant-directivity dispersion for uniform coverage
• Supports 70V / 100V line systems and 8-ohm operation
• Low-insertion-loss transformer with multiple power taps
• EN54-24, UL1480, and UL2043 certified for safety installations
• Powder-coated aluminum grille with dust protection
• Includes C-ring and tile-bridge mounting kit
• Ideal for hotels, retail stores, offices, airports, and restaurants

Specifications

Specification	Details
Model	Tannoy CVS 801
Product Type	Coaxial In-Ceiling Loudspeaker
LF Driver	8″ polypropylene cone
HF Driver	1″ ferrofluid-cooled soft dome
Frequency Response (-10 dB)	65 Hz – 20 kHz
Frequency Response (±3 dB)	88 Hz – 20 kHz
Power Handling	90 W continuous / 360 W peak
Sensitivity	90 dB (1W / 1m)
Maximum SPL	116 dB peak
Nominal Impedance	8 Ohms
Transformer Taps	70V / 100V multi-tap
Coverage	Up to 180° dispersion at 500 Hz
Enclosure	Steel back-can with ABS baffle
Grille	Powder-coated aluminum
Cut-out Diameter	approx. 273 mm
Weight	approx. 5–6 kg
